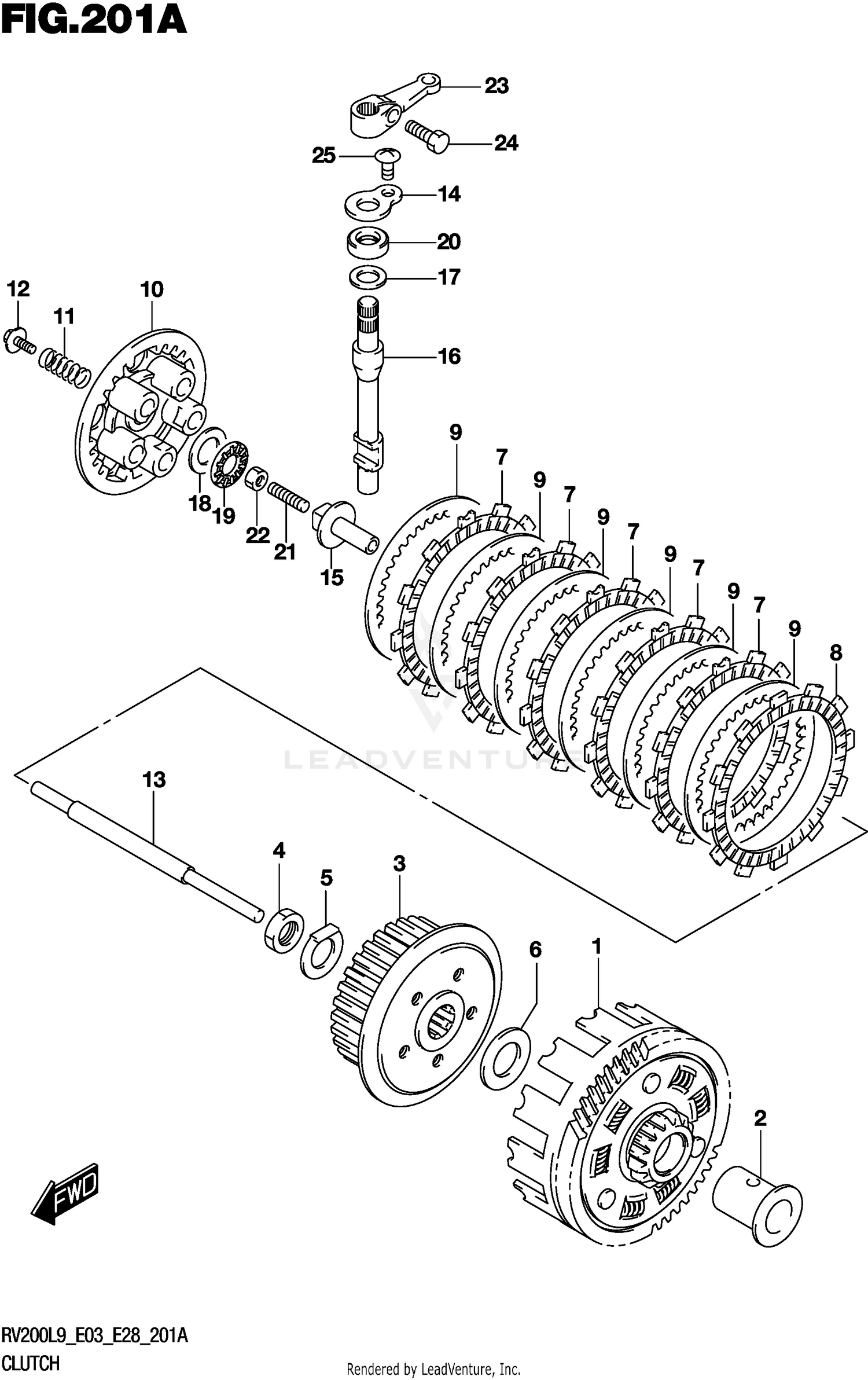

| Ref | Part Number | Description |
|---|
| 1 |
21200-13G00 |
GEAR ASSY, PRI DRIVEN Price: $234.22 |
| 2 |
21251-13E00 |
SPACER,PRIMARY DRIVEN GEAR Price: $24.56 |
| 3 |
21411-42A04 |
HUB,CLUTCH SLEEVE Price: $71.80 |
| 4 |
09140-16005 |
NUT This part replaces 09140-16001. Price: $3.95 |
| 5 |
09169-16003 |
WASHER Price: $2.58 |
| 6 |
08211-20355 |
WASHER Price: $4.93 |
| 7 |
21441-25C01 |
PLATE, CLUTCH DRIVE (T:3.0) Price: $26.39 |
| 8 |
21441-13A01 |
PLATE,CLUTCH DRIVE (T:3.0) Price: $18.20 |
| 9 |
21451-01B40 |
PLATE,DRIVEN (T:1.4) Price: $10.37 |
| 10 |
21462-14130 |
DISC, CLUTCH PRESSURE Price: $26.87 |
| 11 |
09440-15021 |
SPRING Price: $4.81 |
| 12 |
09116-05020 |
BOLT (5X16) Price: $2.48 |
| 13 |
23110-05203 |
ROD, CLUTCH PUSH Price: $19.46 |
| 14 |
23117-05200 |
RETAINER, OIL SEAL Price: $5.55 |
| 15 |
23121-38201 |
PIECE, CLUTCH PUSH Price: $28.89 |
| 16 |
23122-05200 |
CAM SHAFT, CLUTCH RELEASE Price: $54.11 |
| 17 |
09181-10195 |
SHIM (10X20X1) Price: $2.43 |
| 18 |
09160-15045 |
WASHER (15.5X28X1) Price: $4.75 |
| 19 |
09263-15003 |
BEARING (15X28X2) Price: $10.10 |
| 20 |
09282-10012 |
SEAL,OIL (10X20X6) Price: $9.72 |
| 21 |
09134-06010 |
SCREW (6X25) Price: $3.80 |
| 22 |
09140-06023 |
NUT Price: $2.50 |
| 23 |
23271-46010 |
ARM, CLUTCH RELEASE Price: $31.29 |
| 24 |
01500-0616A |
BOLT Price: $2.15 |
