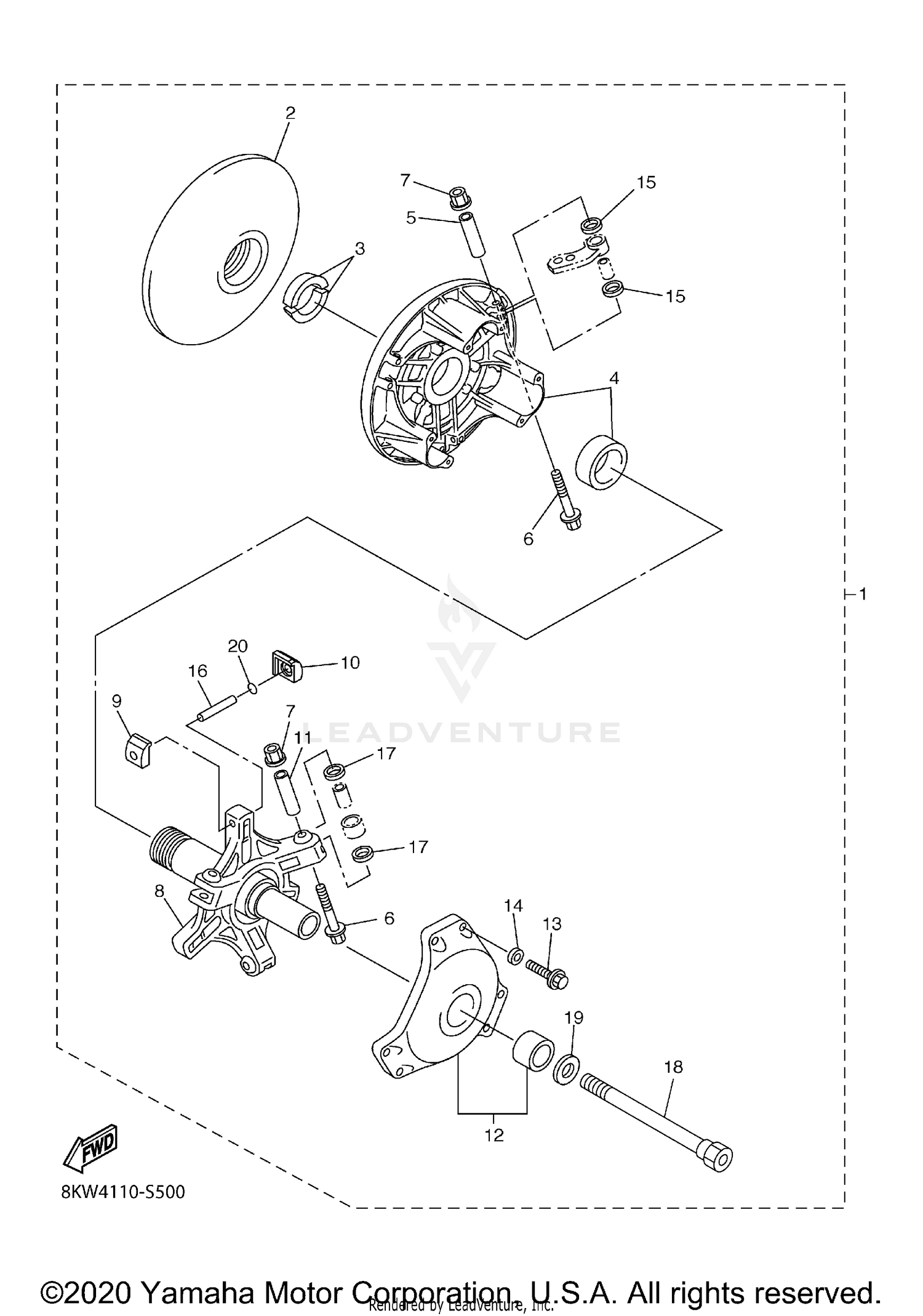

ALTERNATE REBUILD KIT
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 8FA-17611-01-00 | SHEAVE, PRIMARY FIXED Price: $223.99 |
| 3 | 8V0-17639-00-00 | STOPPER Price: $16.49 |
| 4 | 8FP-17620-00-00 | PRIMARY SLIDING SHEAVE COMP. Price: $473.99 |
| 5 | 90387-0514T-00 | COLLAR Price: $18.49 |
| 6 | 90105-05644-00 | BOLT, FLANGE Price: $2.55 |
| 7 | 95607-05200-00 | NUT, S/L FLANGE Price: $10.49 |
| 8 | 8ES-17640-02-00 | SPIDER COMPLETE Price: $492.99 |
| 9 | 8BW-17653-00-00 | SLIDER Price: $17.99 |
| 10 | 8ES-17653-00-00 | SLIDER Price: $28.99 |
| 11 | 90387-0514U-00 | COLLAR Price: $22.99 |
| 12 | 8DF-17630-00-00 | PRIMARY SHEAVE CAP COMP. Price: $201.99 |
| 13 | 97017-06030-00 | BOLT,HEXAGON Price: $3.90 |
| 14 | 92907-06600-00 | WASHER, PLATE Price: $1.00 |
| 15 | 90202-08204-00 | WASHER, PLATE Price: $10.49 |
| 16 | 91609-50032-00 | PIN, SPRING Price: $4.50 |
| 17 | 90202-09227-00 | WASHER, PLATE Price: $11.49 |
| 18 | 8V0-17647-10-00 | BOLT (L=156.5MM) Price: $28.99 |
| 19 | 92907-16100-00 | WASHER Price: $16.49 |
