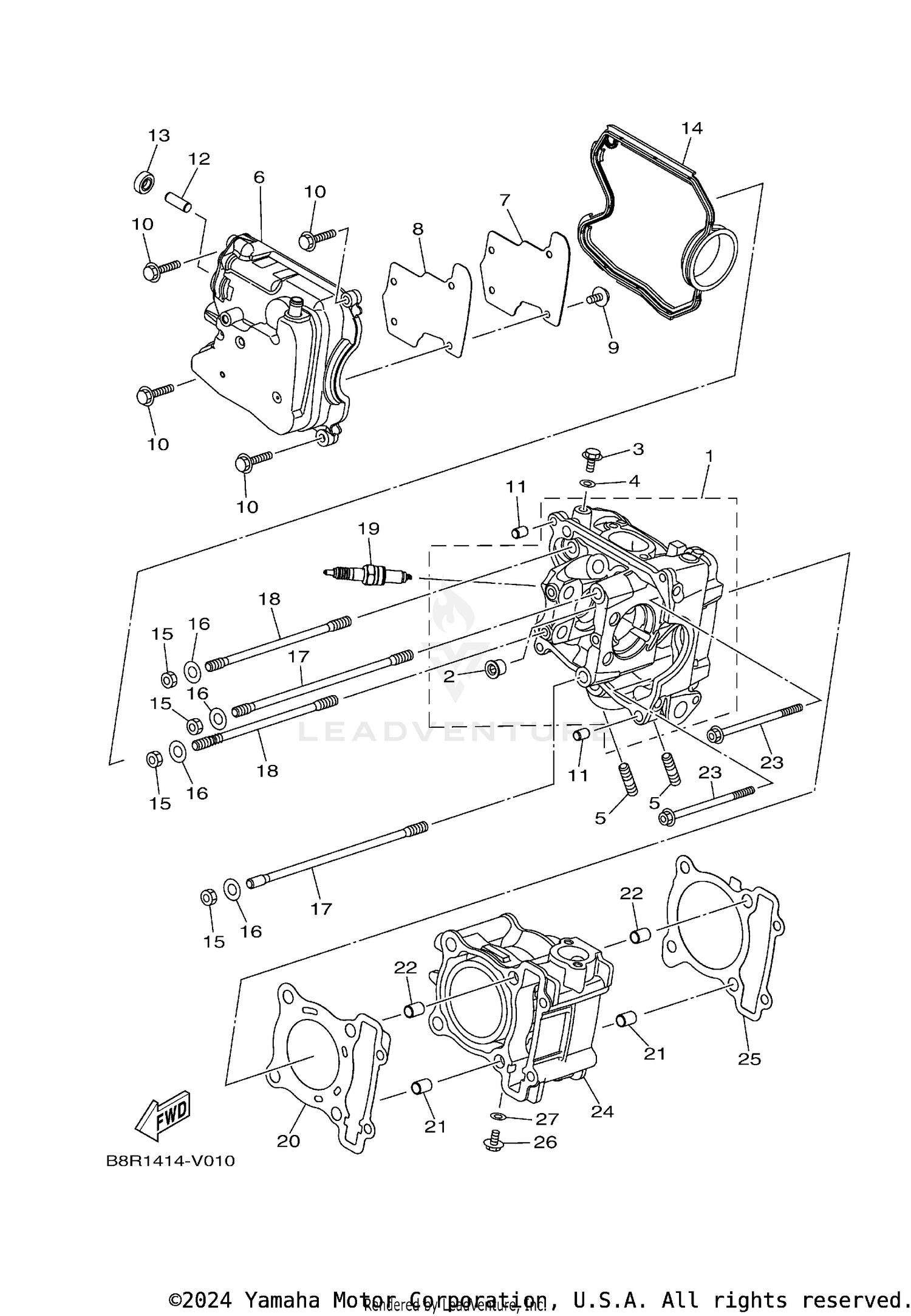

| Ref | Part Number | Description |
|---|
| 1 |
B8R-E1102-00-00 |
CYLINDER HEAD ASSY Price: $209.99 |
| 2 |
90340-12813-00 |
PLUG, STRAIGHT SCREW Price: $4.60 |
| 3 |
95E32-06010-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
| 4 |
90430-06014-00 |
GASKET Price: $8.60 |
| 5 |
90116-08806-00 |
BOLT, STUD Price: $2.05 |
| 6 |
B8R-E1191-00-00 |
COVER, CYLINDER HEAD 1 Price: $34.99 |
| 7 |
B8R-E1165-00-00 |
PLATE, BREATHER Price: $3.50 |
| 8 |
2DP-E1169-00-00 |
GASKET, BREATHER COVER Price: $4.65 |
| 9 |
90149-05801-00 |
SCREW Price: $1.05 |
| 10 |
95E32-06030-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 11 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 12 |
2DP-E132G-00-00 |
ROD 1 Price: $3.60 |
| 13 |
93102-08800-00 |
OIL SEAL Price: $4.60 |
| 14 |
B3F-E1193-00-00 |
GASKET, HEAD COVER 1 Price: $31.99 |
| 15 |
90170-08811-00 |
NUT Price: $0.40 |
| 16 |
90201-08859-00 |
WASHER, PLATE Price: $5.00 |
| 17 |
2DP-E1391-00-00 |
BOLT, STUD 1 Price: $3.70 |
| 18 |
2DP-E1392-00-00 |
BOLT, STUD 2 Price: $4.60 |
| 19 |
CPR-8EA90-00-00 |
CPR8EA-9 NGK SPLUG Price: $10.49 |
| 20 |
2DS-E1181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $15.49 |
| 21 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 22 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 23 |
90110-06378-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 24 |
B8R-E1311-00-00 |
CYLINDER 1 Price: $78.99 |
| 25 |
B6H-E1351-00-00 |
GASKET, CYLINDER Price: $4.60 |
| 26 |
95E32-06010-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
