Home / POWERSPORTS / ROV / 2022 / 2022 PROWLER 500 TAN [U2022PAK4CUSK] / FRONT DRIVE GEARCASE ASSEMBLY [302482]

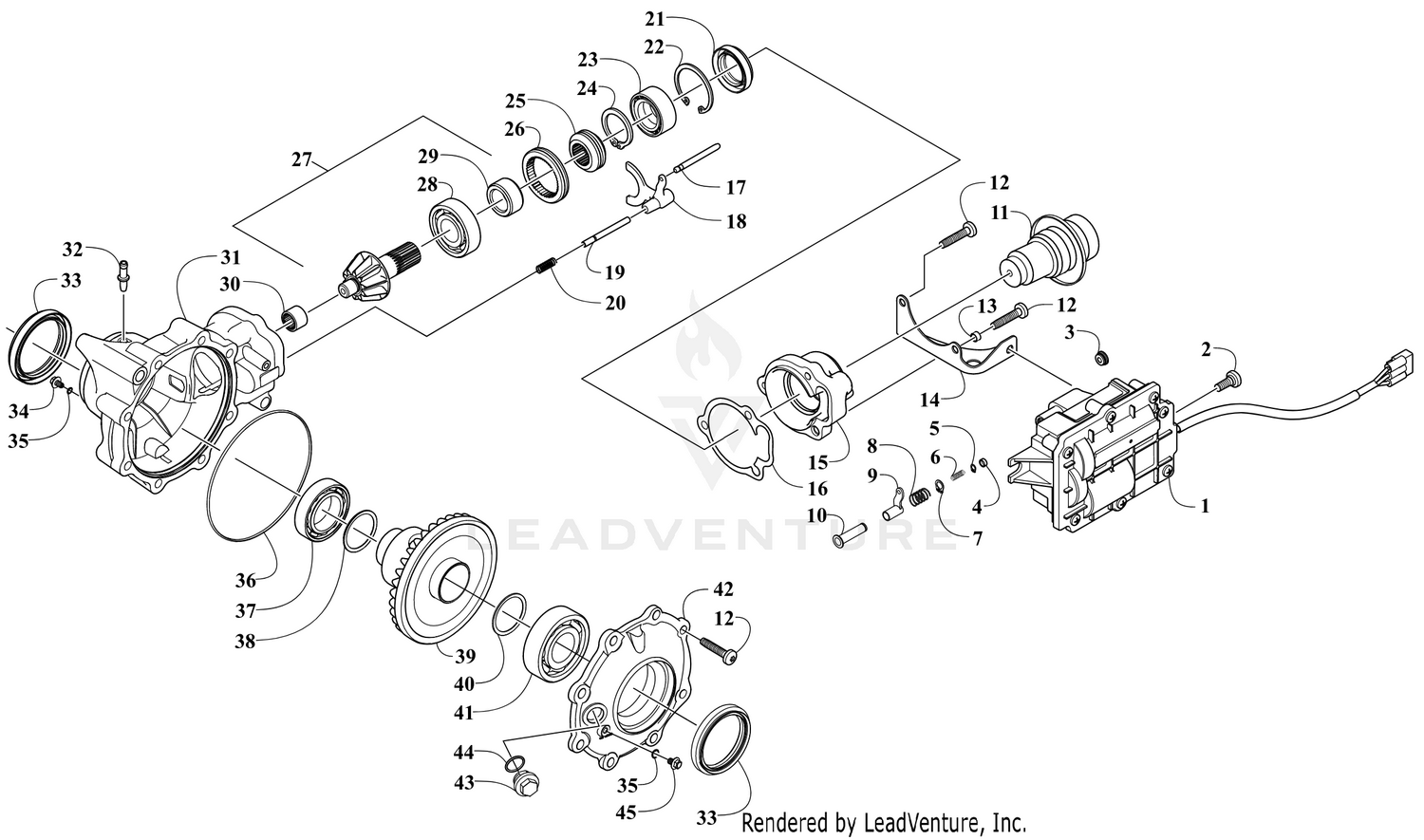

FRONT DRIVE GEARCASE ASSEMBLY [302482]

FRONT DRIVE GEARCASE ASSEMBLY [302482]

Parts (56)

RefPart NumberDescription
0 3307-281 E-LOCK GEARCASE FRONT 3.6 Price: $2,082.95
1 3307-191 ACTUATOR,ELEC LOCK Price: $413.95
2 3307-310 BOLT SPECIAL 6X12 Price: $6.12
3 3307-309 CAP ASSY E-LOCK Price: $6.60
4 3307-299 CAP E-LOCK Price: $1.72
5 3307-311 CIR CLIP EX5 Price: $2.98
6 3307-298 SPRING B E-LOCK Price: $1.72
7 0831-056 CIRCLIP TYPE D 1400 Price: $1.72
8 3307-297 SPRING A E-LOCK Price: $1.23
9 3307-301 STAY SELECTOR Price: $31.95
10 3307-300 SHAFT SELECTOR Price: $18.80
11 3307-296 SHAFT INPUT ASSEMBLY Price: $93.95
12 3305-513 BOLT FLANGE 8*40(G) Price: $2.03
13 3306-048 PIN DOWEL Price: $5.18
14 3307-291 BRACKET ACTUATOR-WELDMENT Price: $9.01
15 3307-292 HOUSING PINION-MACH Price: $43.95
16 3307-285 GASKET FLANGE Price: $14.08
17 3307-286 SHAFT, SELECTOR Price: $7.38
18 3307-287 FORK SELECTOR Price: $43.95
19 3307-284 SHAFT E-LOCK SELECTOR Price: $26.95
20 3307-288 COLLAR ACTUATOR Price: $2.15
21 3323-239 SEAL Price: $6.43
22 3306-046 RING RETAINING Price: $5.18
23 3323-240 BEARING,BALL-DOUBLE ROW Price: $82.95
24 3306-045 RING RETAINING Price: $3.92
25 3307-283 COUPLER DRIVE Price: $35.95
26 3313-788 COLLAR LOCK M64*1.5LH Price: $48.95
27 3307-294 PINION(10 TOOTH)-ASSEMBLY Price: $171.95
28 3306-040 BRG BALL RADIAL 6305 Price: $30.95
29 3306-041 Collar, Retaining Price: Call Us
30 3306-038 BEARING NEEDLE Price: $54.95
31 3307-290 HOUSING GEARCASE-FRONT MACH Price: $253.95
32 3323-150 FITTING, BARB HOSE -INTAKE MANIFOLD Price: $2.18
33 3306-025 OIL SEAL 48*84*9 Price: $53.95
34 3306-027 PLUG DRAIN MAG Price: $23.53
35 0423-153 O-Ring Price: $4.11
36 3307-289 GASKET HOUSING Price: $6.29
37 3306-801 BEARING BALL Price: $74.95
38 3306-132 SHIM 41*49*1.0 Price: $6.43
38 3306-133 SHIM 41*49*1.1 Price: $6.43
38 3306-134 SHIM 41*49*1.2 Price: $6.43
38 3306-135 SHIM 41*49*1.3 Price: $6.43
38 3306-136 SHIM 41*49*1.4 Price: $28.95
38 3306-137 SHIM 41*49*1.5 Price: $6.43
38 3306-138 SHIM 41*49*1.6 Price: $6.43
38 3306-139 SHIM 41*49*1.7 Price: $6.43
39 3307-293 E-LOCK.OPEN TYPE GEARCASE FRONT(3.6).ASS Price: $488.95
40 3307-304 SHIM 61*69*1.3MM Price: $6.43
40 3307-305 SHIM 61*69*1.4MM Price: $6.43
40 3307-306 SHIM 61*69*1.5MM Price: $6.43
40 3307-307 SHIM 61*69*1.6MM Price: $6.43
40 3307-308 SHIM 61*69*1.7 MM Price: $6.43
41 3307-303 BEARING BALL Price: $171.95
42 3307-302 COVER LOCK ASSEMBLY Price: $406.95
43 3306-035 PLUG FILL Price: $35.95
44 0423-154 O-Ring Price: $3.29
