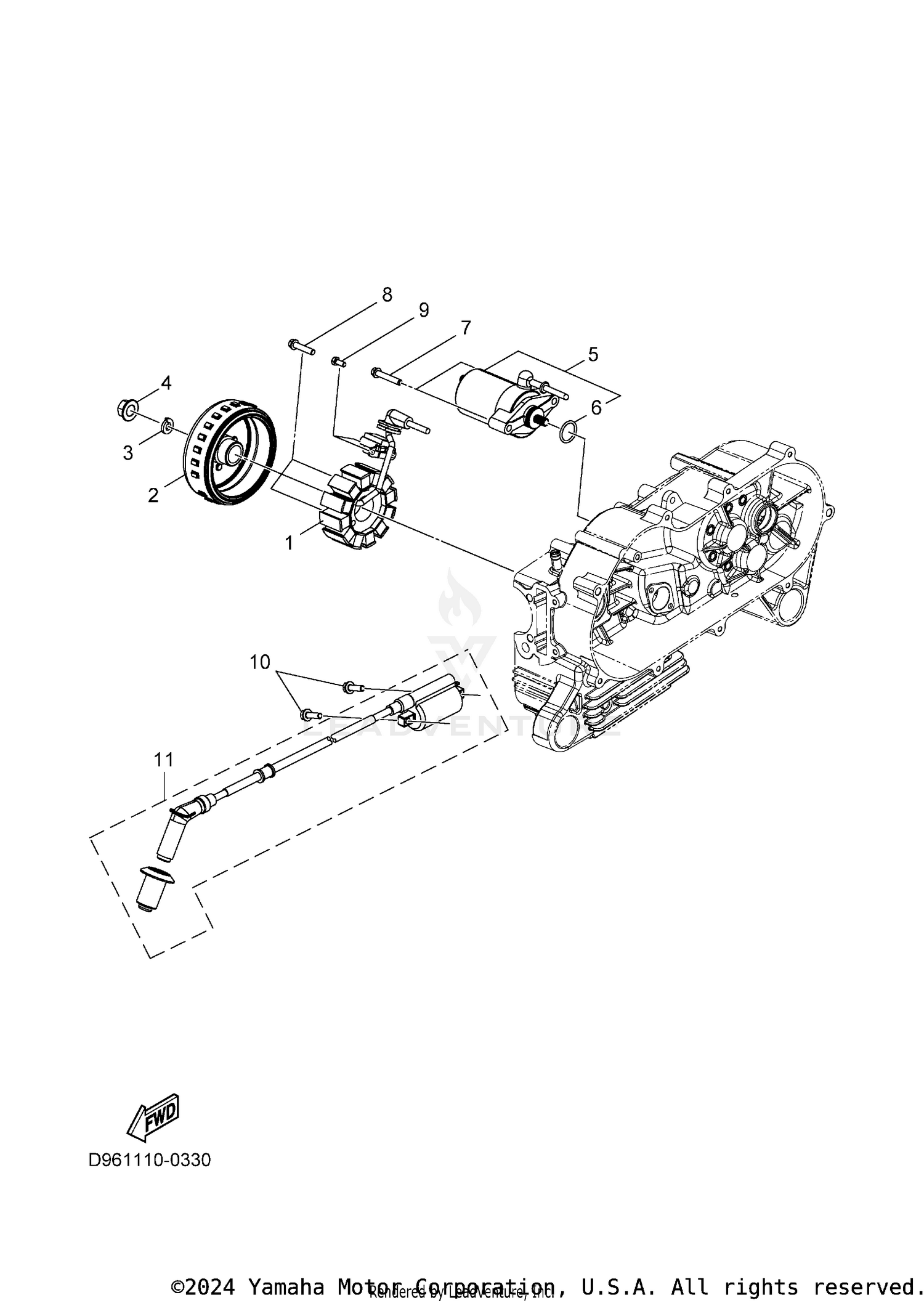

STARTER GENERATOR
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BYS-H1410-00-00 | STATOR ASSY Price: $360.99 |
| 2 | BYS-H1450-00-00 | ROTOR ASSY Price: $315.99 |
| 3 | BD3-H1554-10-00 | WASHER Price: $2.40 |
| 4 | BD3-H1353-10-00 | NUT Price: $5.49 |
| 5 | BD3-H1800-10-00 | STARTING MOTOR ASSY Price: $304.99 |
| 6 | BD3-H1168-00-00 | O-RING Price: $8.49 |
| 7 | BD3-H1152-10-00 | BOLT Price: $4.25 |
| 8 | BYS-E2157-00-00 | BOLT Price: $4.80 |
| 9 | BD3-H1352-10-00 | BOLT Price: $2.55 |
| 10 | BYS-E2623-00-00 | BOLT Price: $5.49 |
