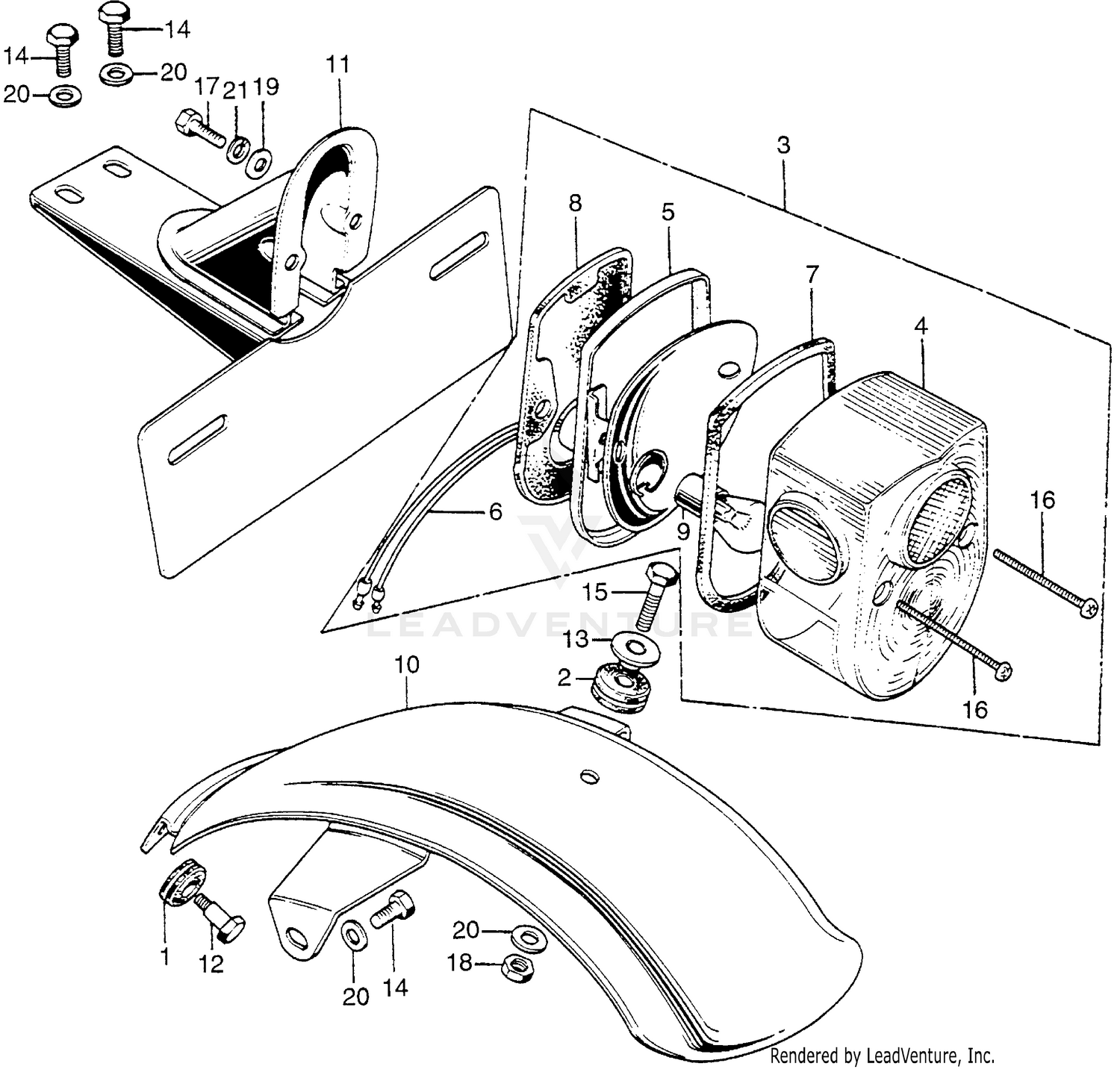

| Ref | Part Number | Description |
|---|
| 2 |
32983-011-000 |
GROMMET, WIRE HARNESS Price: $4.16 |
| 3 |
33700-074-671 |
TAILLIGHT ASSY. (NOT AVAILABLE) This part replaces 33701-074-670. Price: $68.01 |
| 4 |
33702-074-671 |
LENS, TAILLIGHT Price: $42.39 |
| 5 |
33703-074-671 |
BASE, TAILLIGHT (NOT AVAILABLE) Price: $62.59 |
| 6 |
33708-077-671 |
WIRE, TAILLIGHT (NOT AVAILABLE) Price: $8.17 |
| 7 |
33709-074-671 |
GASKET, TAILLIGHT LENS Price: $2.38 |
| 8 |
33719-074-670 |
GASKET, TAILLIGHT BASE (NOT AVAILABLE) Price: $6.20 |
| 9 |
34906-202-670 |
BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-041-670. Price: $13.93 |
| 10 |
80100-045-673XW |
FENDER, RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) Price: $138.92 |
| 11 |
84700-045-671B |
BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE) Price: $101.70 |
| 13 |
90563-045-000 |
WASHER, NUMBER BRACKET MOUNTING Price: $3.91 |
| 15 |
92101-06020-0A |
BOLT, HEX. (6X20) This part replaces 92000-06020. Price: $1.08 |
| 16 |
93500-04045-0B |
SCREW, PAN (4X45) (NOT AVAILABLE) Price: $0.89 |
| 17 |
93500-05012-0A |
SCREW, PAN (5X12) Price: $0.95 |
| 18 |
94001-06200-0S |
NUT, HEX. (6MM) This part replaces 90310-KA3-711. Price: $1.37 |
| 19 |
94101-05000 |
WASHER, PLAIN (5MM) Price: $1.03 |
