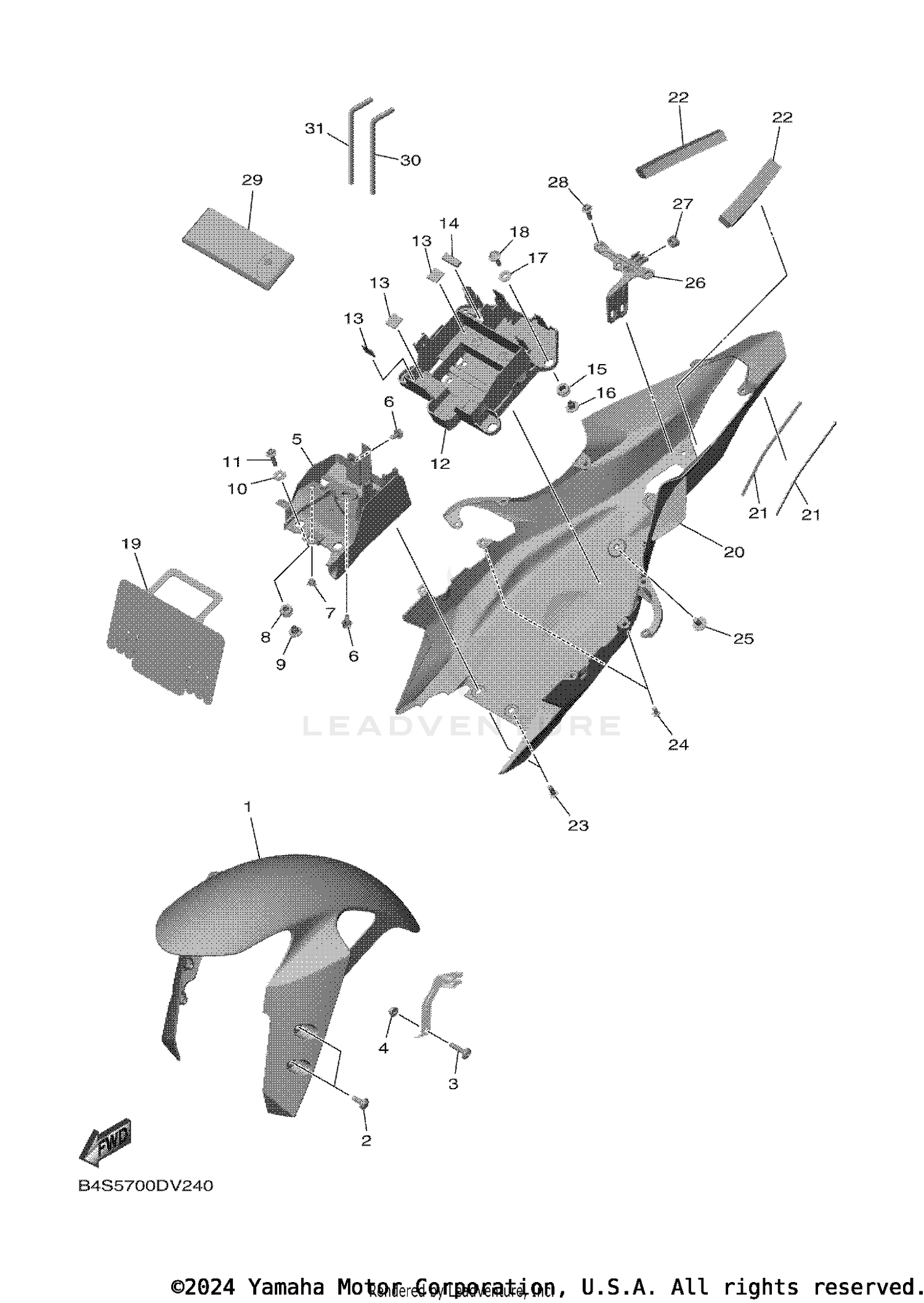

| Ref | Part Number | Description |
|---|
| 1 |
2KS-21510-00-00 |
FRONT FENDER COMP. Price: $2,620.99 |
| 2 |
90111-06043-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $5.49 |
| 3 |
90111-06041-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $9.49 |
| 4 |
95707-06500-00 |
NUT, FLANGE Price: $1.00 |
| 5 |
B3L-8212B-00-00 |
BOX, BATTERY 1 Price: $32.99 |
| 6 |
95817-06012-00 |
BOLT, FLANGE This part replaces 90105-06181-00. Price: $1.95 |
| 7 |
90338-07043-00 |
PLUG Price: $9.49 |
| 8 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 9 |
90387-073M2-00 |
COLLAR Price: $9.49 |
| 10 |
90201-06088-00 |
WASHER, PLATE Price: $9.49 |
| 11 |
90110-06172-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 12 |
2CR-8212C-00-00 |
BOX, BATTERY 2 Price: $26.99 |
| 13 |
13S-21649-00-00 |
DAMPER Price: $7.49 |
| 14 |
5HN-2139X-00-00 |
DAMPER Price: $1.35 |
| 15 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 16 |
90387-073M2-00 |
COLLAR Price: $9.49 |
| 17 |
90201-06088-00 |
WASHER, PLATE Price: $9.49 |
| 18 |
90110-06172-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 19 |
B3L-21652-00-00 |
PROTECTOR Price: $15.49 |
| 20 |
2CR-21611-01-00 |
FENDER, REAR This part replaces 2CR-21611-00-00. Price: $43.99 |
| 21 |
3C5-2414H-00-00 |
DAMPER, PLATE 1 Price: $5.99 |
| 22 |
90520-20003-00 |
DAMPER, PLATE Price: $9.49 |
| 23 |
90269-06008-00 |
RIVET Price: $9.49 |
| 24 |
90269-05005-00 |
RIVET Price: $3.55 |
| 25 |
90269-07076-00 |
RIVET Price: $8.49 |
| 26 |
2CR-2117E-01-00 |
BRACKET, TAILLIGHT This part replaces 2CR-2117E-00-00. Price: $26.99 |
| 27 |
90480-10003-00 |
GROMMET Price: $9.49 |
| 28 |
90110-06163-00 |
BOLT, HEXAGON SOCKET HEAD Price: $11.49 |
| 29 |
2CR-28100-01-00 |
TOOL KIT This part replaces 2CR-28100-00-00. Price: $62.99 |
| 30 |
23P-28164-00-00 |
WRENCH, HEXAGON 8 Price: $3.65 |
