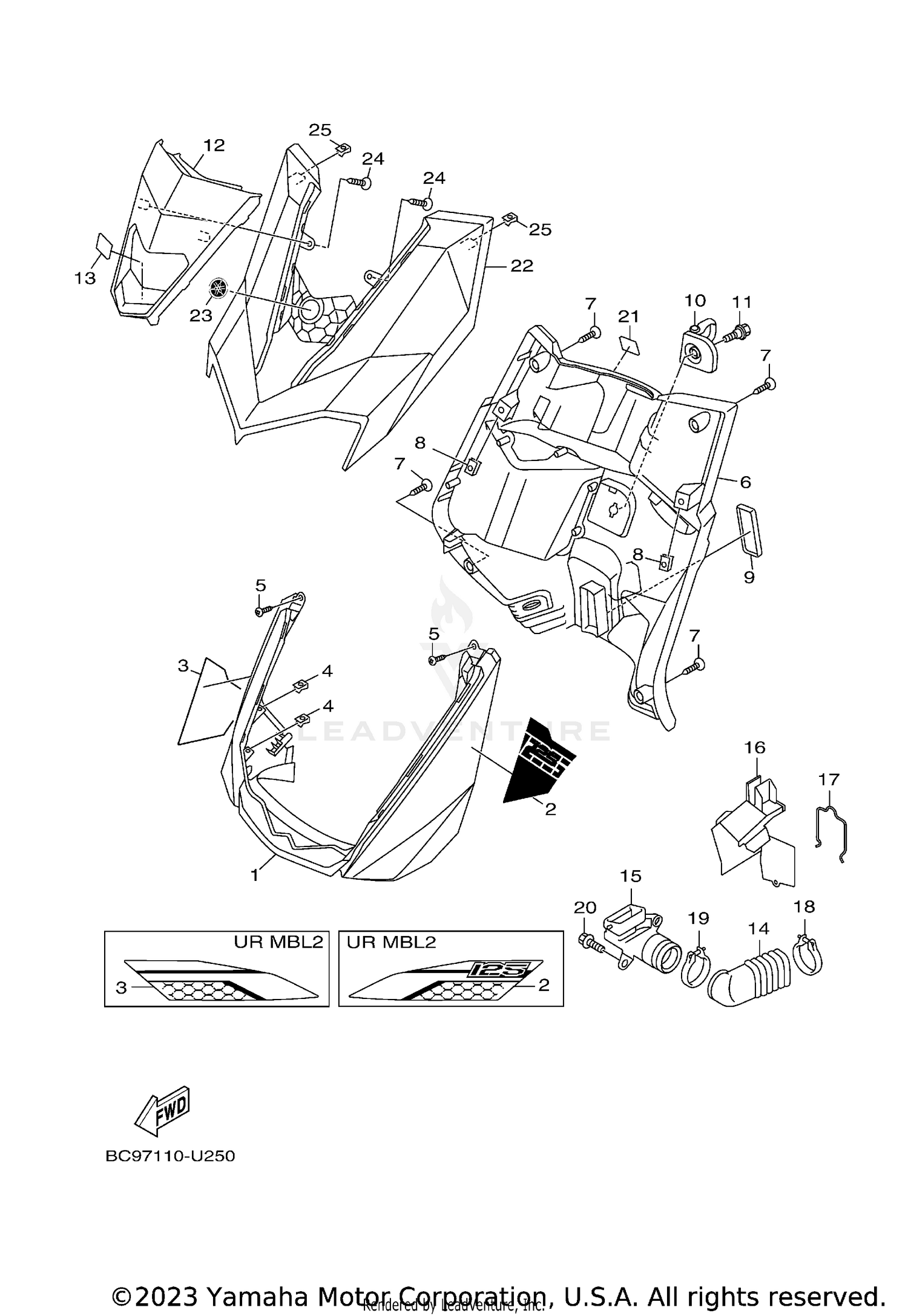

LEG SHIELD
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 90183-06813-00 | NUT, SPRING Price: $1.95 |
| 5 | 97707-50016-00 | SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 6 | 2JS-F8300-00-00 | LEG SHIELD ASSY Price: $38.99 |
| 7 | 90169-05001-00 | TAPPING SCREW Price: $1.05 |
| 8 | 90183-05827-00 | NUT, SPRING This part replaces 90183-05816-00. Price: $1.65 |
| 9 | 5FM-F8349-00-00 | CAP Price: $2.35 |
| 10 | 1CF-F8379-00-00 | HOOK Price: $9.49 |
| 11 | 90109-068A0-00 | BOLT Price: $2.35 |
| 13 | 90520-01801-00 | DAMPER, PLATE Price: $0.40 |
| 14 | 5ML-F838N-01-00 | DUCT 1 Price: $12.49 |
| 15 | 5ML-F838R-00-00 | DUCT 2 Price: $9.99 |
| 16 | 2JS-F8365-00-00 | COVER Price: $10.99 |
| 17 | 5ML-F8457-00-00 | CLIP Price: $1.95 |
| 18 | 5CA-F1823-20-00 | CLAMP, HOSE Price: $4.25 |
| 19 | 90450-53801-00 | HOSE CLAMP ASSY Price: $3.50 |
| 20 | 90109-063F1-00 | BOLT Price: $3.10 |
| 21 | 1CD-F4877-00-00 | LABEL, CAUTION Price: $1.00 |
| 22 | 2JS-H4144-01-00 | COVER, HEADLIGHT Price: $13.49 |
| 23 | 1MS-F1569-00-00 | GRAPHIC 1 Price: $3.50 |
| 24 | 97707-50016-00 | SCREW, TRUSS HEAD TAPPING Price: $1.85 |
