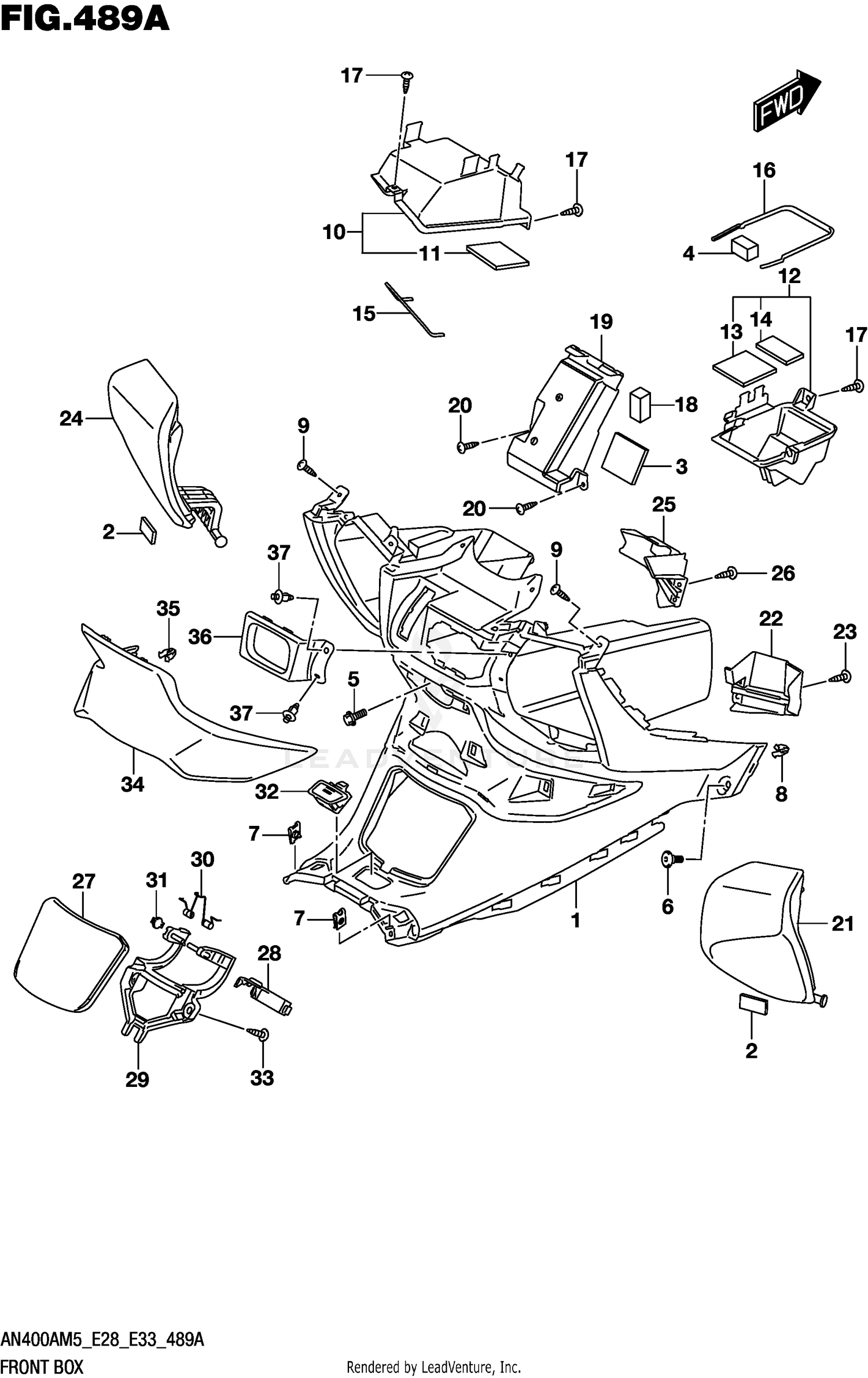

| Ref | Part Number | Description |
|---|
| 1 |
92111-19K00 |
BOX, FRONT Price: $232.74 |
| 2 |
33652-20C00 |
PROTECTOR (50X50X5) This part replaces 33652-21G10. Price: $3.69 |
| 3 |
33652-20C00 |
PROTECTOR (50X50X5) Price: $3.69 |
| 4 |
33652-38F20 |
CUSHION,RR COMB (20X40X20) Price: $3.17 |
| 5 |
09116-06205 |
BOLT (6X16) Price: $2.85 |
| 6 |
09139-05094 |
SCREW (5X18) Price: $5.33 |
| 7 |
09148-05038 |
NUT (M5) Price: $2.37 |
| 8 |
09409-08326 |
CLIP (10.5X14.3) Price: $2.87 |
| 9 |
03541-0512A |
SCREW Price: $1.65 |
| 10 |
92140-19K10 |
COVER,FR BOX UPPER Price: $24.67 |
| 11 |
33652-20C00 |
PROTECTOR (50X50X5) Price: $3.69 |
| 12 |
92150-19K00 |
COVER, FRONT BOX LWR Price: $19.23 |
| 13 |
33652-20C00 |
PROTECTOR (50X50X5) Price: $3.69 |
| 15 |
92116-05H00 |
CUSHION, INNER This part replaces 92113-10G00. Price: $7.62 |
| 16 |
92116-05H00 |
CUSHION, INNER This part replaces 92115-14G00. Price: $7.62 |
| 17 |
03541-0512A |
SCREW Price: $1.65 |
| 18 |
33652-38F20 |
CUSHION,RR COMB (20X40X20) Price: $3.17 |
| 19 |
92191-19K01 |
LID,BATTERY BOX Price: $14.37 |
| 20 |
03541-0516A |
SCREW Price: $1.65 |
| 21 |
92120-19K10 |
LID,FRONT BOX,R Price: $50.70 |
| 22 |
92124-19K00 |
RETAINER, FRONT BOX RH Price: $18.36 |
| 23 |
03541-0516A |
SCREW Price: $1.65 |
| 24 |
92130-19K10 |
LID,FRONT BOX,L Price: $50.70 |
| 25 |
92134-19K00 |
RETAINER, FRONT BOX LH Price: $18.36 |
| 26 |
03541-0516A |
SCREW Price: $1.65 |
| 27 |
92161-19K00 |
LID, FUEL OUTER Price: $21.26 |
| 28 |
92162-14G01 |
LOCK,FUEL LID ARM Price: $14.96 |
| 29 |
92162-19K00 |
LID, FUEL INNER Price: $26.18 |
| 30 |
92163-19K00 |
SPRING, FUEL LID Price: $9.96 |
| 31 |
92164-14G00 |
DAMPER,FUEL LID Price: $15.95 |
| 32 |
92180-05H01-291 |
LOCK,FUEL LID (BLACK) Price: $25.53 |
| 33 |
03541-0512A |
SCREW Price: $1.65 |
| 34 |
94423-19K00 |
COVER,CENTER Price: $94.51 |
| 35 |
09409-08326 |
CLIP (10.5X14.3) Price: $2.87 |
| 36 |
94672-19K01 |
COVER,MAIN SWITCH Price: $11.05 |
