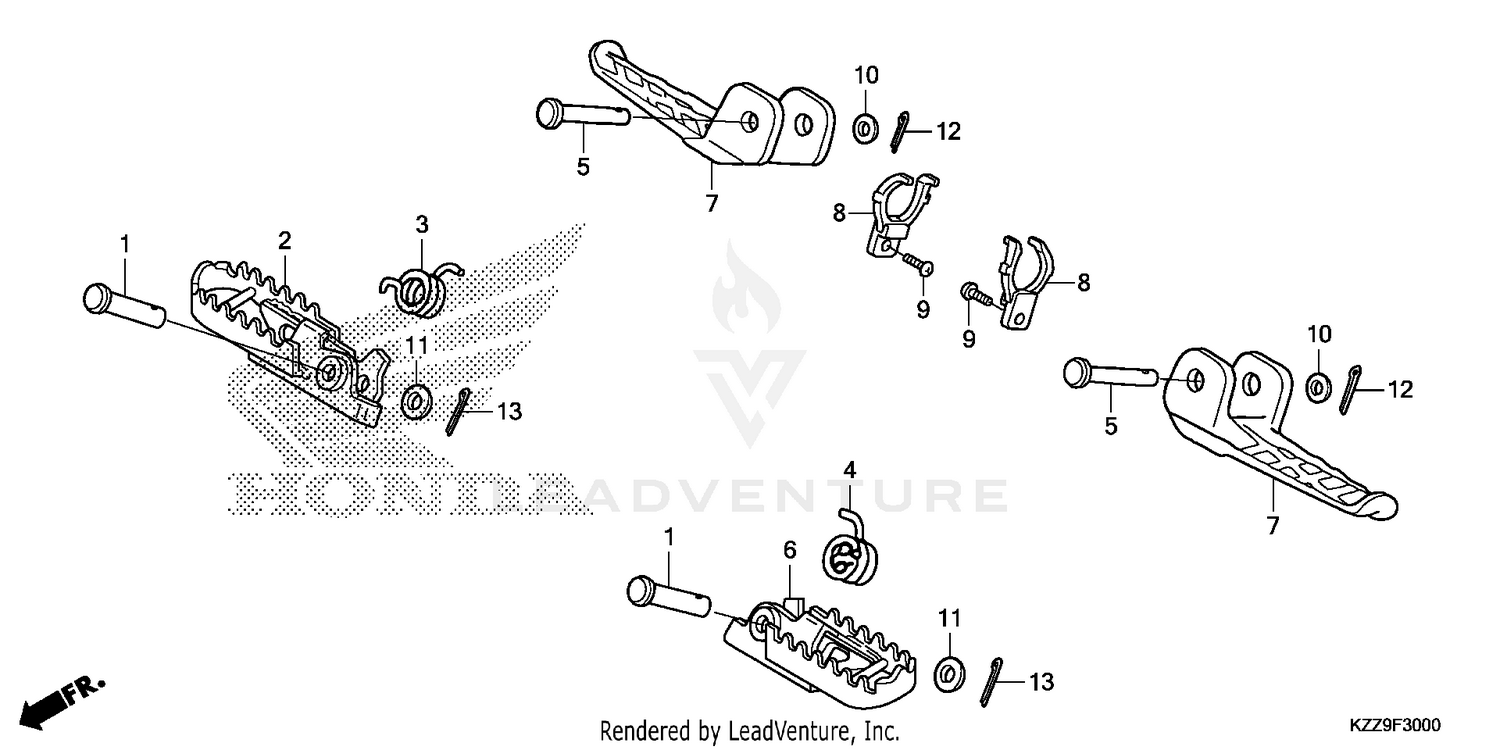

| Ref | Part Number | Description |
|---|
| 1 |
50603-KZZ-900 |
PIN, STEP JOINT Price: $4.25 |
| 2 |
50616-KZZ-305 |
STEP, R. (COO) Price: $19.89 |
| 3 |
50617-KZZ-900 |
SPRING, R. STEP RETURN Price: $2.47 |
| 4 |
50618-KZZ-900 |
SPRING, L. STEP RETURN Price: $2.47 |
| 5 |
50639-KZZ-900 |
PIN, STEP BAR Price: $3.45 |
| 6 |
50642-KZZ-305 |
STEP, L. (COO) Price: $19.89 |
| 7 |
50711-KZZ-305 |
STEP, PILLION (COO) Price: $7.64 |
| 8 |
50713-KZZ-900 |
GUIDE, PILLION STEP Price: $4.55 |
| 9 |
90020-KZZ-900 |
SCREW, PAN (4X10) Price: $1.11 |
| 10 |
94101-08000 |
WASHER, PLAIN (8MM) Price: $0.87 |
| 11 |
94102-10000 |
WASHER, PLAIN (10MM) Price: $0.78 |
| 12 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 13 |
94201-20220 |
PIN, COTTER (2.0X22) PIN, COTTER (2.0X25) Price: $1.08 |
| 13 |
94201-20350 |
PIN, COTTER (2.0X35) This part replaces 94201-20250. Price: $1.08 |
| 13 |
94201-29220 |
PIN, COTTER (2.0X22) This part replaces 94201-20180. Price: $1.08 |
