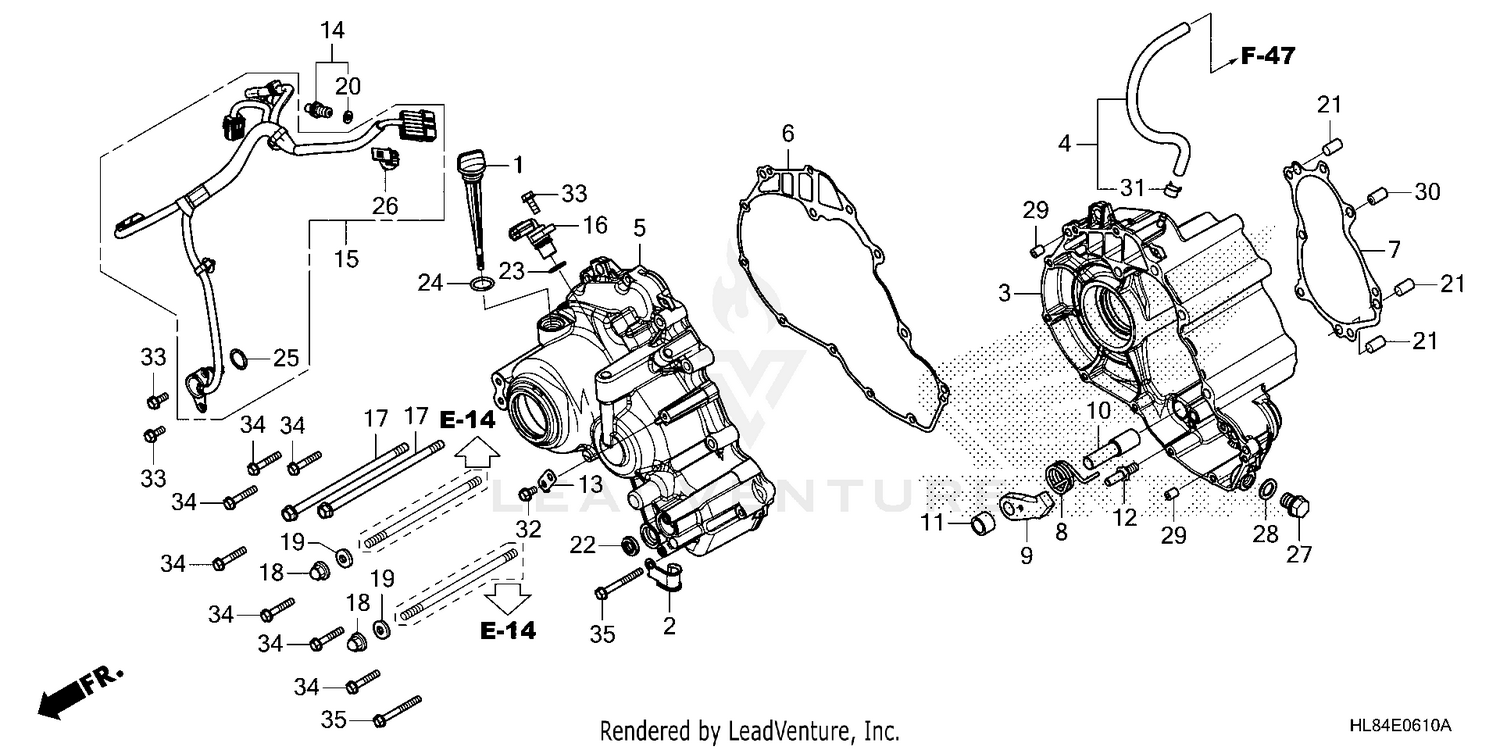

| Ref | Part Number | Description |
|---|
| 1 |
15650-HL4-000 |
DIPSTICK, OIL Price: $17.87 |
| 2 |
19530-HL4-000 |
CLAMP, DRAIN HOSE Price: $5.20 |
| 3 |
21100-HL6-A00 |
CASE, SUB-TRANSMISSION Price: $352.85 |
| 4 |
21111-HL4-010 |
TUBE ASSY., BREATHER Price: $16.60 |
| 5 |
21200-HL6-A01 |
COVER, SUB-TRANS Price: $282.48 |
| 6 |
21205-HL4-003 |
GASKET, SUB-TRANSMISSION COVER Price: $22.24 |
| 7 |
21206-HL6-A01 |
GASKET, SUB-TRANSMISSION CASE Price: $13.60 |
| 8 |
24552-HL4-000 |
SPRING, PARKING PAWL Price: $4.40 |
| 10 |
24562-HL4-000 |
SHAFT, PARKING Price: $10.35 |
| 12 |
24652-HL4-000 |
PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE) Price: $5.04 |
| 13 |
32156-HL4-000 |
STAY, HARNESS CLIP Price: $4.27 |
| 14 |
35600-HL4-305 |
SWITCH SET, NEUTRAL Price: $24.45 |
| 15 |
35759-HL8-A01 |
SW, SUBDRUM POSITION Price: $139.93 |
| 16 |
37700-KZR-601 |
SENSOR ASSY., SPEED (TDK-EPC) Price: $53.38 |
| 17 |
90017-HL4-000 |
BOLT, FLANGE (8X165) Price: $8.31 |
| 18 |
90307-MJE-D00 |
NUT, HEX. CAP (8MM) Price: $1.47 |
| 19 |
90441-286-000 |
WASHER, SEALING (8MM) Price: $2.16 |
| 20 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 21 |
90701-MV9-670 |
PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 22 |
91205-KF0-003 |
OIL SEAL (12X20X5) (ARAI) Price: $4.35 |
| 23 |
91303-KF0-003 |
O-RING (14.8X2.4) (ARAI) Price: $2.02 |
| 24 |
91307-KF0-003 |
O-RING (18X3) (ARAI) Price: $3.35 |
| 25 |
91333-KE5-003 |
O-RING (17.0X2.5) (ARAI) Price: $2.55 |
| 26 |
91535-STK-003 |
CLIP, CONNECTOR (DARK BLUE) Price: $7.70 |
| 27 |
92800-14000 |
BOLT, DRAIN PLUG (14MM) Price: $4.47 |
| 28 |
94109-14000 |
WASHER, DRAIN PLUG (14MM) Price: $0.65 |
| 29 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 30 |
94301-10160 |
PIN, DOWEL (10X16) (Honda Code 0058206) Price: $2.58 |
| 31 |
95002-41000-08 |
CLAMP, TUBE (D10) Price: $2.45 |
| 32 |
95701-06012-00 |
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) Price: $1.70 |
| 33 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 34 |
95701-06035-00 |
BOLT, FLANGE (6X35) Price: $1.97 |
