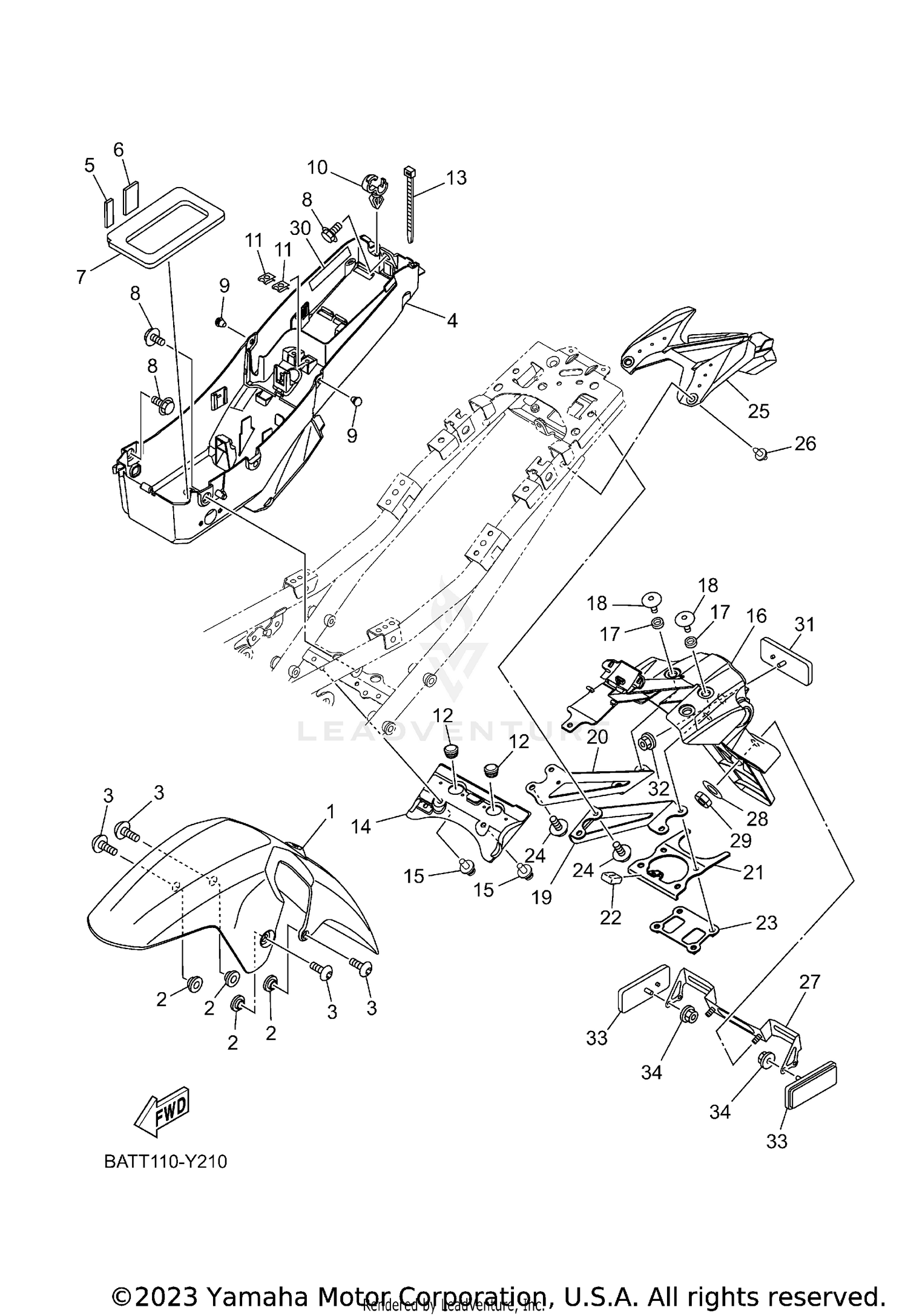

| Ref | Part Number | Description |
|---|
| 1 |
B4C-21511-00-00 |
FENDER, FRONT Price: $45.99 |
| 2 |
90387-06355-00 |
COLLAR Price: $3.85 |
| 3 |
90111-06151-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06161-00. Price: $3.45 |
| 4 |
BAT-8212B-00-00 |
BOX, BATTERY 1 Price: $52.99 |
| 5 |
BAT-21639-00-00 |
DAMPER 2 Price: $3.35 |
| 6 |
BAT-21649-00-00 |
DAMPER Price: $4.65 |
| 7 |
1WS-21639-00-00 |
DAMPER 2 Price: $7.49 |
| 8 |
90109-06202-00 |
BOLT Price: $3.10 |
| 9 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 10 |
90464-18002-00 |
CLAMP Price: $9.49 |
| 11 |
90183-04039-00 |
NUT, spring Price: $8.49 |
| 12 |
90480-14100-00 |
GROMMET Price: $9.49 |
| 13 |
90464-15152-00 |
CLAMP This part replaces 90465-13275-00. Price: $6.49 |
| 14 |
1WS-21642-01-00 |
GUARD, FLAP Price: $5.99 |
| 15 |
90269-06002-00 |
RIVET Price: $9.49 |
| 16 |
BAT-21629-00-00 |
GUARD, MUD Price: $58.99 |
| 17 |
90387-06106-00 |
COLLAR This part replaces 90387-06372-00. Price: $8.49 |
| 18 |
90111-06061-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06089-00. Price: $9.49 |
| 19 |
1WS-2164F-00-00 |
STAY 1 Price: $23.99 |
| 20 |
1WS-2164G-00-00 |
STAY 2 Price: $22.99 |
| 21 |
BAT-21682-00-00 |
STAY, PLATE Price: $15.49 |
| 22 |
1WS-21746-00-00 |
DAMPER Price: $3.20 |
| 23 |
BAT-2161G-00-00 |
BRACKET 6 Price: $10.49 |
| 24 |
90105-06206-00 |
BOLT,WASHER BASED This part replaces 90105-06205-00. Price: $2.70 |
| 25 |
1WS-2163A-00-00 |
COVER, REAR FENDER 1 Price: $9.49 |
| 26 |
90269-07008-00 |
RIVET Price: $3.60 |
| 27 |
2RC-84751-00-00 |
BRACKET, LICENSE Price: $35.99 |
| 28 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 29 |
95617-06100-00 |
NUT, U This part replaces 95602-06100-00. Price: $2.90 |
| 30 |
3JJ-28446-A2-00 |
LABEL, CAUTION Price: $4.95 |
| 31 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
| 32 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 33 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
