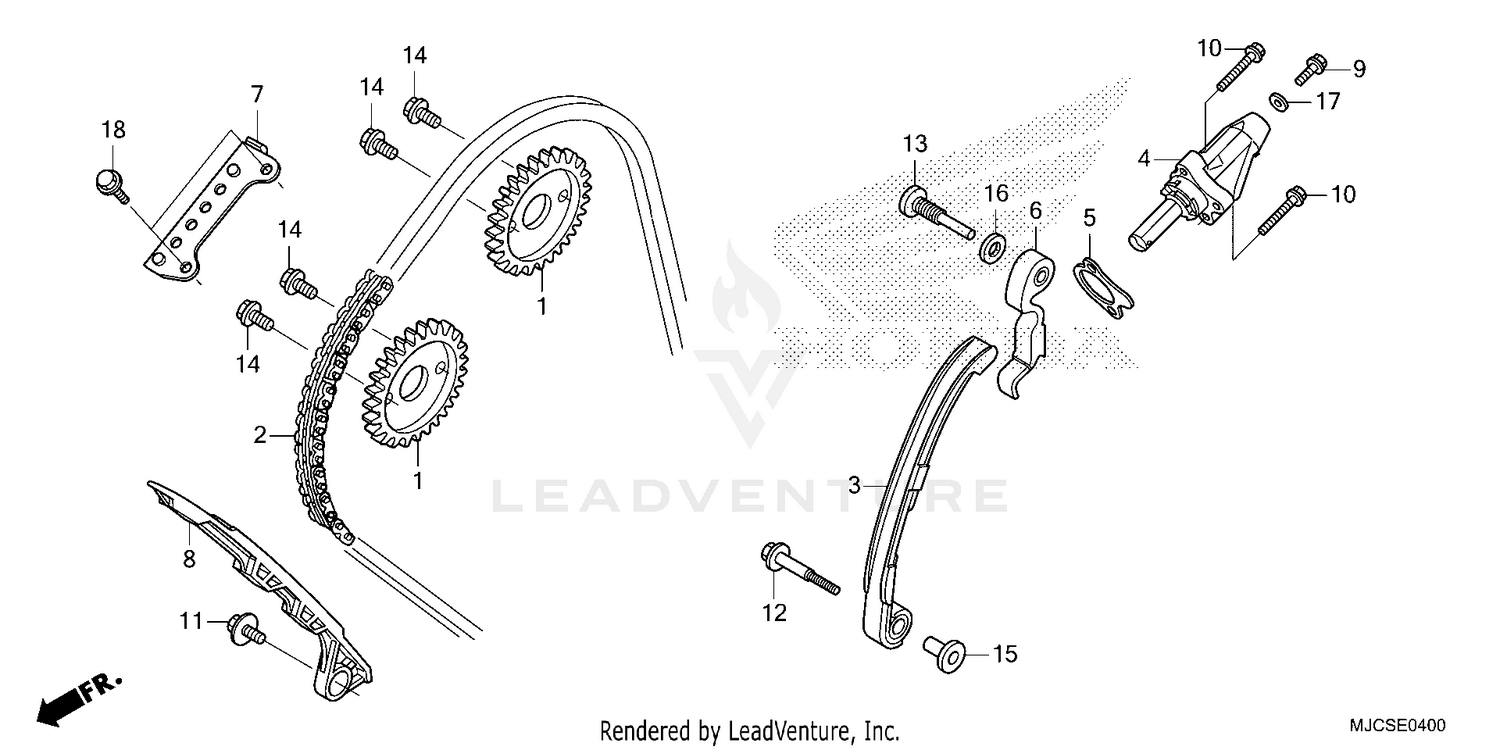

| Ref | Part Number | Description |
|---|
| 1 |
14321-MEE-000 |
SPROCKET, CAM (34T) Price: $59.89 |
| 2 |
14401-MEE-003 |
CHAIN, CAM (116L) (BORG WARNER) Price: $92.11 |
| 3 |
14510-MFJ-D00 |
TENSIONER A, CAM CHAIN Price: $90.18 |
| 4 |
14520-MEE-013 |
LIFTER ASSY., TENSIONER Price: $119.02 |
| 5 |
14523-MCW-003 |
GASKET, TENSIONER HOLE Price: $5.58 |
| 6 |
14530-MEE-D00 |
TENSIONER B, CAM CHAIN Price: $77.82 |
| 7 |
14546-MCJ-000 |
GUIDE B, CAM CHAIN Price: $55.15 |
| 8 |
14620-MEE-000 |
GUIDE A, CAM CHAIN Price: $52.73 |
| 9 |
90004-GHB-600 |
BOLT, FLANGE (6X10) (NSHF) Price: $3.89 |
| 10 |
96001-06025-00 |
BOLT, FLANGE (6X25) This part replaces 90010-GHB-670. Price: $2.20 |
| 11 |
90021-MM5-000 |
BOLT-WASHER (6X12) (Honda Code 2551760) Price: $6.42 |
| 12 |
90022-MFJ-D00 |
PIVOT, CAM CHAIN TENSIONER Price: $2.56 |
| 13 |
90023-MFJ-D00 |
SHAFT B, CAM CHAIN TENSIONER Price: $5.11 |
| 14 |
90082-HA0-000 |
BOLT, FLANGE KNOCK (7X10.5) (Honda Code 1824291) Price: $2.25 |
| 15 |
90401-MFJ-D00 |
COLLAR, CAM CHAIN TENSIONER Price: $7.80 |
| 16 |
90403-MG7-000 |
WASHER, SEALING (10MM) (Honda Code 1562412) Price: $4.09 |
| 17 |
90442-397-000 |
WASHER, SEALING (6MM) Price: $2.58 |
