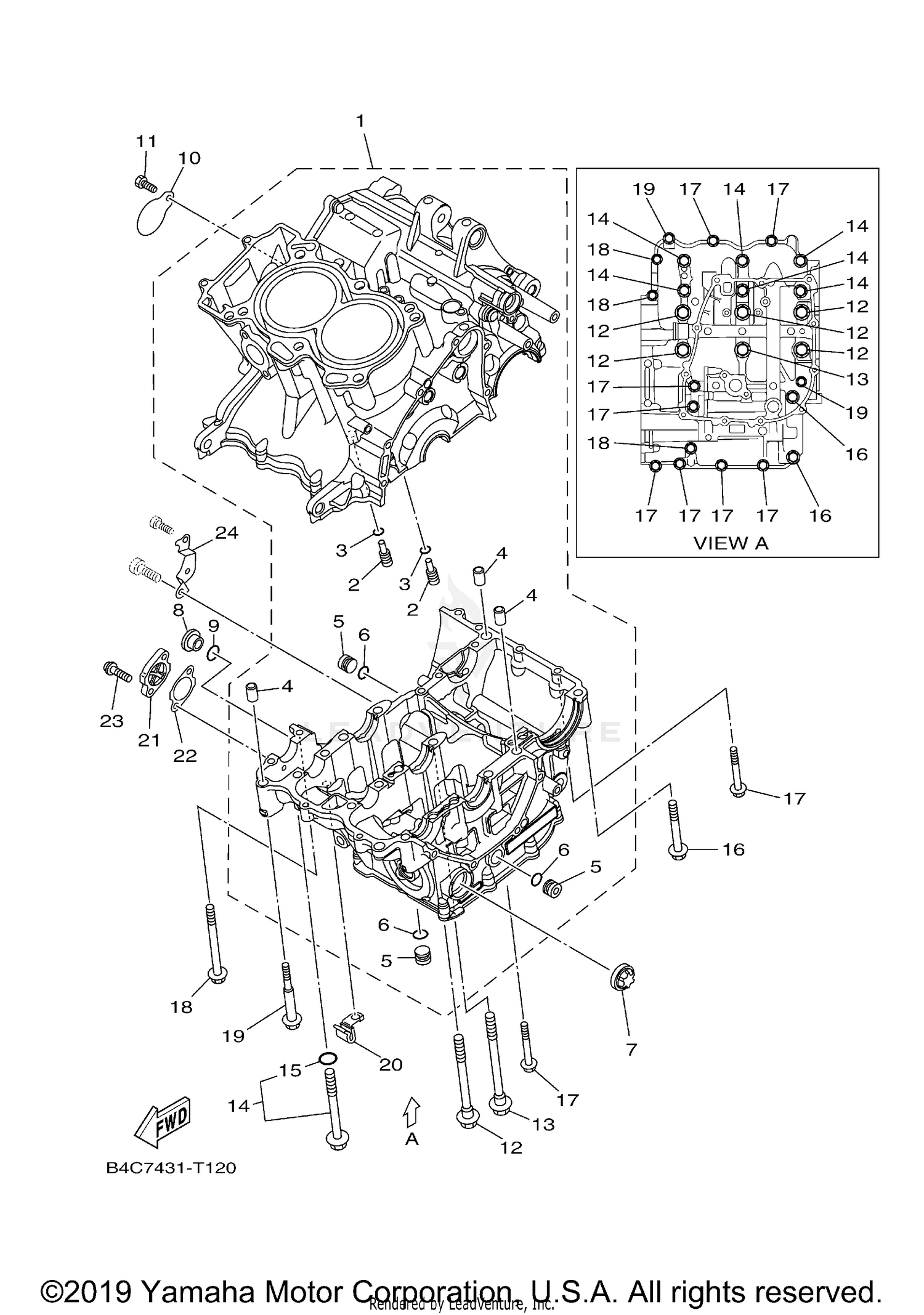

CRANKCASE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5EB-15155-00-00 | NOZZLE 3 Price: $15.49 |
| 3 | 93210-04092-00 | O-RING Price: $4.05 |
| 4 | 99530-10114-00 | PIN, DOWEL This part replaces 99530-10014-00. Price: $2.65 |
| 5 | 90338-16262-00 | PLUG Price: $16.49 |
| 6 | 93210-12790-00 | O-RING Price: $8.49 |
| 7 | 2H7-15361-00-00 | GAUGE, LEVEL Price: $105.99 |
| 8 | 36Y-15189-01-00 | PLUG This part replaces 36Y-15189-00-00. Price: $15.49 |
| 9 | 93210-16325-00 | O-RING Price: $8.49 |
| 10 | 1WS-15189-00-00 | PLUG Price: $7.49 |
| 11 | 97012-06014-00 | BOLT This part replaces 90101-06043-00. Price: $8.49 |
| 14 | 1WS-15156-00-00 | BOLT, CRANKCASE JOURNAL Price: $8.49 |
| 15 | 93210-07540-00 | O-RING Price: $7.49 |
| 16 | 95814-08065-00 | BOLT, FLANGE This part replaces 95812-08065-00. Price: $5.49 |
| 17 | 95817-06040-00 | BOLT, FLANGE This part replaces 95812-06040-00. Price: $6.49 |
| 18 | 95812-06060-00 | BOLT, FLANGE Price: $3.50 |
| 19 | 90109-06100-00 | BOLT Price: $9.49 |
| 20 | 90462-10064-00 | CLAMP Price: $6.49 |
| 22 | 1WS-15456-01-00 | GASKET, OIL PUMP C This part replaces 1WS-15456-00-00. Price: $7.49 |
| 23 | 90110-06396-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06395-00. Price: $3.20 |
