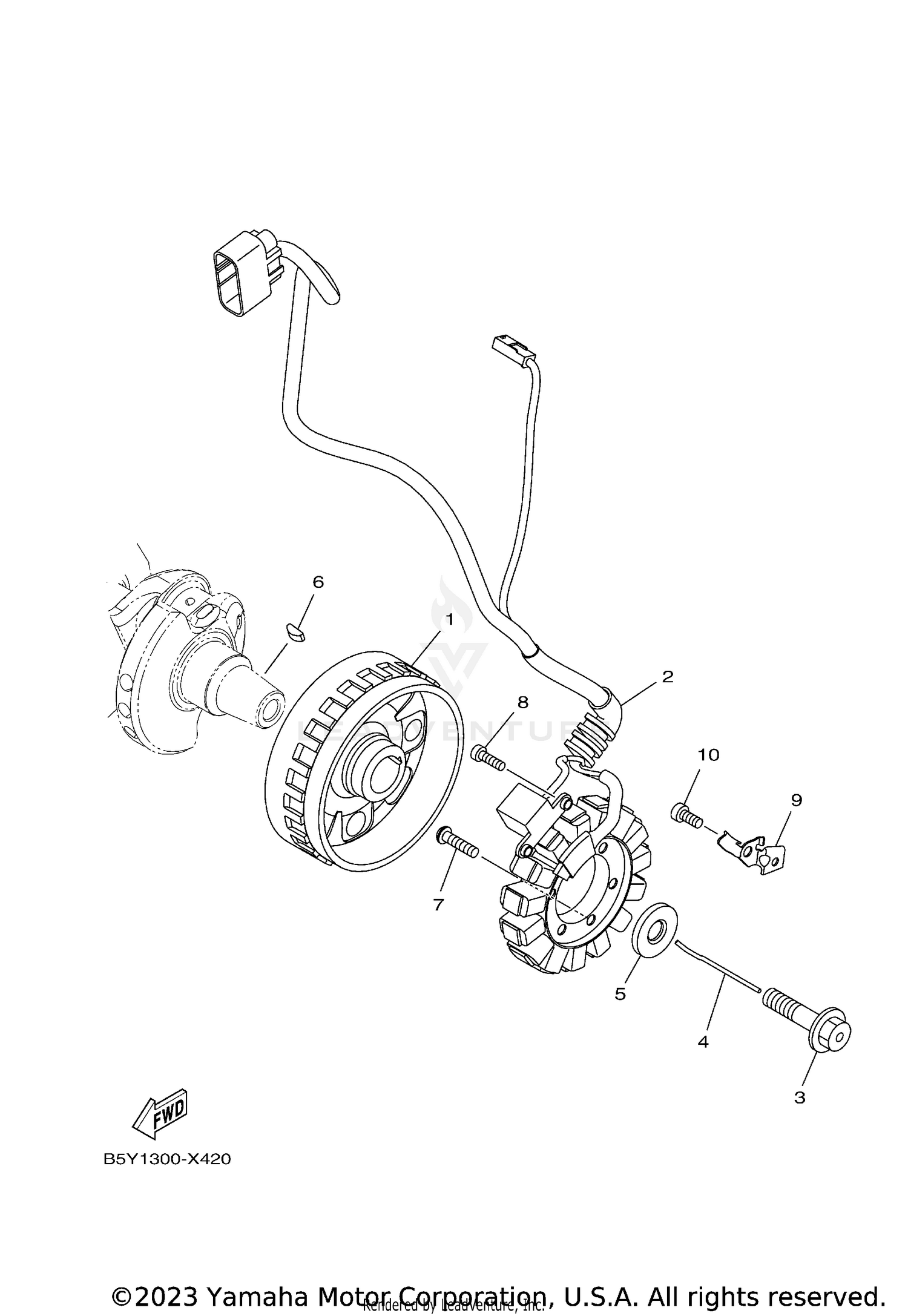

GENERATOR
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B5Y-81450-00-00 | ROTOR ASSY Price: $861.99 |
| 2 | B5Y-81410-01-00 | STATOR ASSY This part replaces B5Y-81410-00-00. Price: $340.99 |
| 3 | B67-81452-00-00 | BOLT Price: $37.99 |
| 4 | 2CR-11455-00-00 | SHAFT 1 Price: $3.30 |
| 5 | 90201-12008-00 | WASHER, PLATE Price: $16.49 |
| 6 | 90280-05029-00 | KEY, WOODRUFF Price: $12.49 |
| 7 | 90149-06079-00 | SCREW This part replaces 90149-06080-00. Price: $9.49 |
| 8 | 91317-05016-00 | BOLT This part replaces 90110-05034-00. Price: $3.55 |
| 9 | 2CR-15484-00-00 | CLAMP 2 Price: $9.49 |
