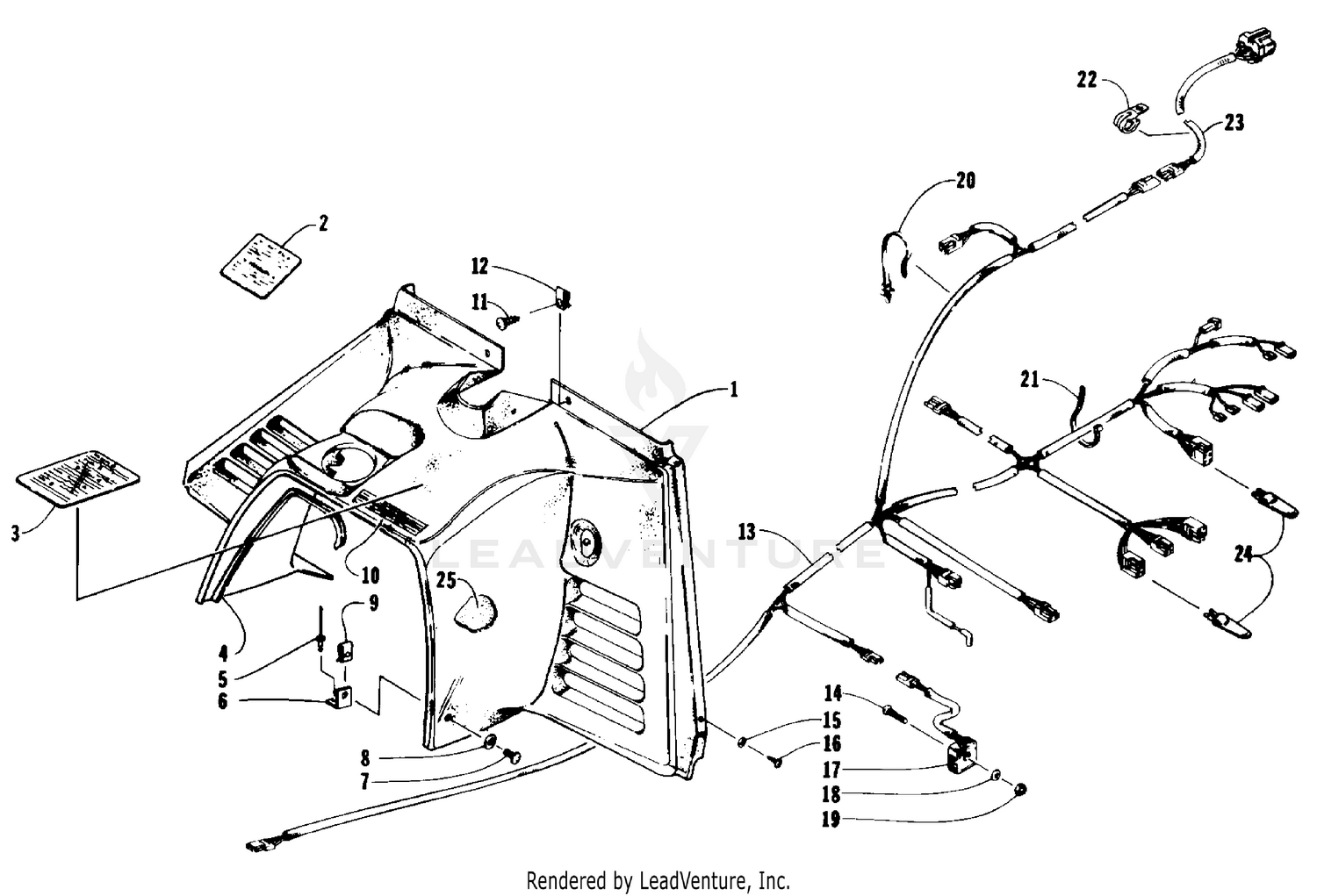

| Ref | Part Number | Description |
| 1 |
0616-222 |
Console Price: $211.95 |
| 2 |
1611-414 |
Decal, Battery/Engine Price: $15.95 |
| 4 |
0706-780 |
Seal, Cover Price: $10.95 |
| 5 |
8060-484 |
Rivet Price: $0.46 |
| 6 |
0106-956 |
Bracket, Mounting - Console Price: $2.29 |
| 7 |
8007-607 |
Screw Price: $1.49 |
| 8 |
8050-217 |
Washer, Flat Price: $0.24 |
| 9 |
0123-539 |
Clip, U-Nut Price: $0.49 |
| 10 |
1611-408 |
Decal, Warning Price: $12.95 |
| 11 |
0623-219 |
Screw, Self-Tapping Price: $0.66 |
| 12 |
0623-425 |
Nut, Speed Price: $0.69 |
| 13 |
0686-129 |
Harness, Main Price: $172.95 |
| 14 |
0623-096 |
Bolt, Ribbed Price: $0.39 |
| 15 |
8050-158 |
Washer, Lock Price: $0.09 |
| 16 |
0623-378 |
SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y Price: $0.86 |
| 17 |
0630-001 |
Regulator, Voltage Price: $70.95 |
| 18 |
8050-212 |
Washer Price: $0.82 |
| 19 |
8040-366 |
Nut, Lock Price: $0.35 |
| 20 |
0623-164 |
Tie, Cable - Push-Mount Price: $1.09 |
| 21 |
0123-788 |
Tie, Cable - 8 in Price: $0.23 |
| 22 |
1623-984 |
Clamp, Routing Price: $7.08 |
| 23 |
0686-171 |
Harness, Headlight Price: $65.83 |
| 24 |
0609-069 |
Posistor Price: $3.59 |
| 25 |
0617-140 |
Foam, Console - Right Price: $5.95 |
