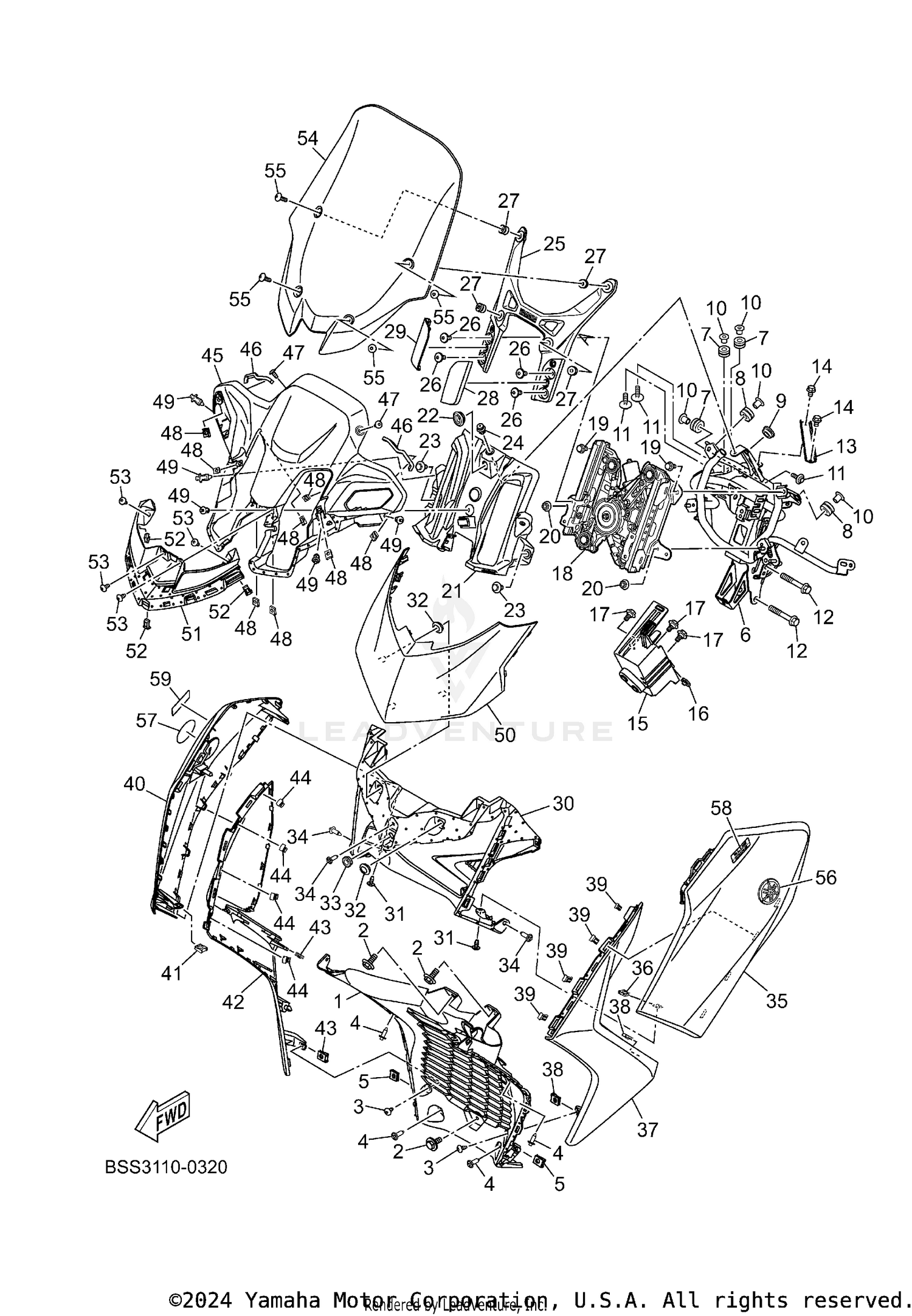

| Ref | Part Number | Description |
|---|
| 1 |
BKA-F837N-00-00 |
GRILL, AIR INTAKE Price: $20.99 |
| 2 |
90119-06051-00 |
BOLT, WITH WASHER Price: $9.49 |
| 3 |
90160-05808-00 |
SCREW, ROUND TAPPING Price: $0.55 |
| 4 |
90269-06813-00 |
RIVET Price: $0.40 |
| 5 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 6 |
BSS-F8321-00-00 |
STAY 1 Price: $109.99 |
| 7 |
90480-14836-00 |
GROMMET Price: $1.10 |
| 8 |
90480-14229-00 |
GROMMET Price: $9.49 |
| 9 |
90480-13567-00 |
GROMMET Price: $5.49 |
| 10 |
90387-068N8-00 |
COLLAR Price: $1.90 |
| 11 |
90119-06268-00 |
BOLT, WITH WASHER Price: $2.45 |
| 12 |
95817-08055-00 |
BOLT, FLANGE This part replaces 95812-08055-00. Price: $4.21 |
| 13 |
BKA-F8427-00-00 |
REINFORCEMENT 1 Price: $5.49 |
| 14 |
95812-06010-00 |
BOLT, FLANGE Price: $3.20 |
| 15 |
BSS-H212B-00-00 |
BOX, BATTERY 1 Price: $9.99 |
| 16 |
90183-05014-00 |
NUT, SPRING Price: $5.49 |
| 17 |
90109-068B5-00 |
BOLT Price: $0.50 |
| 18 |
BSS-83306-00-00 |
DRIVE UNIT ASSY Price: $683.99 |
| 19 |
95D37-06012-00 |
BOLT, FLANGE DEEP Price: $0.15 |
| 20 |
90179-06403-00 |
NUT This part replaces 90179-06841-00. Price: $6.99 |
| 21 |
BSS-F8365-00-00 |
COVER Price: $11.49 |
| 22 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 23 |
90109-068B5-00 |
BOLT Price: $0.50 |
| 24 |
90269-06812-00 |
RIVET Price: $1.30 |
| 25 |
BSS-F833C-00-00 |
LINK 1 Price: $49.99 |
| 26 |
90111-06839-00 |
BOLT, HEX. SOCKET BUTTON Price: $0.50 |
| 27 |
90179-05003-00 |
NUT Price: $6.49 |
| 28 |
BSS-F8219-00-00 |
COVER 1 Price: $2.35 |
| 29 |
BSS-F8229-00-00 |
COVER 2 Price: $2.35 |
| 30 |
BKA-F286F-00-00 |
COVER, FRONT 2 Price: $21.99 |
| 31 |
90160-05808-00 |
SCREW, ROUND TAPPING Price: $0.55 |
| 32 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 33 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 34 |
90269-06813-00 |
RIVET Price: $0.40 |
| 36 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 38 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 39 |
90464-04004-00 |
CLAMP Price: $0.60 |
| 41 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 43 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 44 |
90464-04004-00 |
CLAMP Price: $0.60 |
| 45 |
BSS-F83D3-00-00 |
COVER, FLASHER 1 Price: $23.99 |
| 46 |
90520-06827-00 |
DAMPER, PLATE Price: $0.30 |
| 47 |
90160-05808-00 |
SCREW, ROUND TAPPING Price: $0.55 |
| 48 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 49 |
90269-06813-00 |
RIVET Price: $0.40 |
| 51 |
BSS-F838E-00-00 |
COVER, HEADLIGHT Price: $9.99 |
| 52 |
90464-04004-00 |
CLAMP Price: $0.60 |
| 53 |
90160-05808-00 |
SCREW, ROUND TAPPING Price: $0.55 |
| 54 |
BSS-F837U-00-00 |
SCREEN Price: $163.99 |
| 55 |
90111-05825-00 |
BOLT, HEXAGON SOCK Price: $0.50 |
| 56 |
B74-F414B-10-00 |
EMBLEM Price: $4.85 |
| 57 |
B74-F414B-10-00 |
EMBLEM Price: $4.85 |
| 58 |
2PH-F1737-00-00 |
EMBLEM Price: $4.40 |
