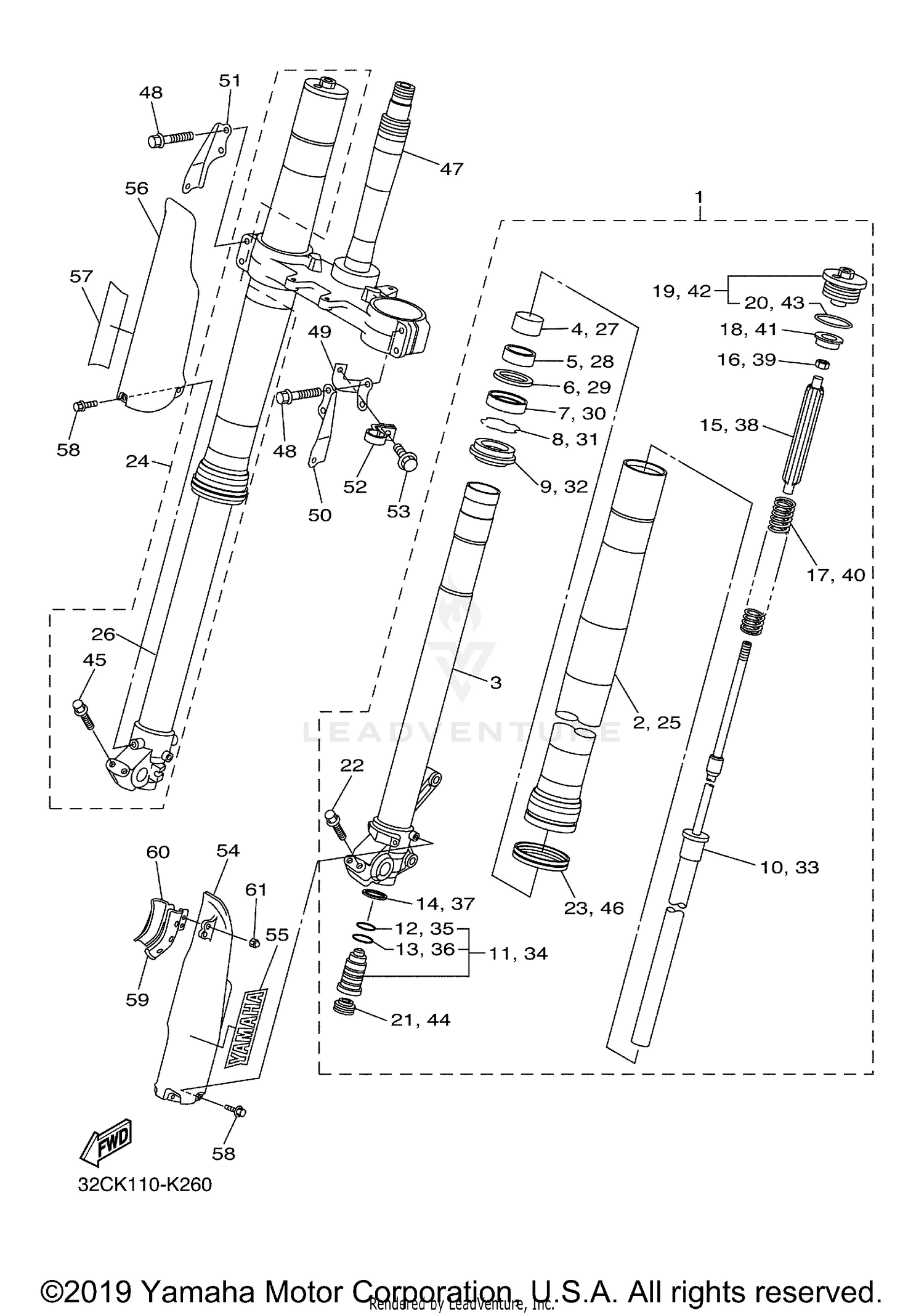

| Ref | Part Number | Description |
|---|
| 1 |
32D-23102-50-00 |
FRONT FORK ASSY (L.H) Price: $1,336.99 |
| 2 |
3D7-23106-50-00 |
OUTER TUBE COMP. Price: $740.99 |
| 3 |
3D7-23110-00-00 |
INNER TUBE COMP. 1 Price: $402.99 |
| 4 |
5ET-23171-L0-00 |
PISTON, FRONT FORK Price: $23.99 |
| 5 |
5ET-23125-L0-00 |
METAL, SLIDE 1 Price: $38.99 |
| 6 |
5UN-23146-L0-00 |
WASHER, OIL SEAL Price: $17.99 |
| 7 |
5UN-23145-L0-00 |
OIL SEAL Price: $24.99 |
| 8 |
4SS-23153-L0-00 |
RING, SNAP Price: $8.49 |
| 9 |
5HD-23144-L0-00 |
SEAL, DUST Price: $33.99 |
| 10 |
32D-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $451.99 |
| 11 |
32D-2316A-00-00 |
VALVE COMP. Price: $280.99 |
| 12 |
4DA-23147-L0-00 |
O-RING (3XJ-23147-00) Price: $16.49 |
| 13 |
276-23114-01-00 |
GASKET This part replaces 276-23114-00-00. Price: $4.60 |
| 14 |
2HH-23158-L0-00 |
GASKET Price: $11.99 |
| 15 |
3D7-23117-00-00 |
GUIDE, SPRING Price: $38.99 |
| 16 |
3XJ-23357-L0-00 |
NUT Price: $1.30 |
| 17 |
32D-23141-00-00 |
SPRING, FRONT FORK Price: $59.99 |
| 18 |
4SS-23143-L0-00 |
SEAT, SPRING LOWER Price: $13.49 |
| 19 |
3D7-23111-00-00 |
BOLT, CAP Price: $234.99 |
| 20 |
3D7-23147-00-00 |
O-RING Price: $7.49 |
| 21 |
3JD-2312G-L0-00 |
PLUG, HOLE Price: $7.49 |
| 22 |
95024-08040-00 |
BOLT, FLANGE This part replaces 95022-08040-00. Price: $9.49 |
| 23 |
5XC-2314F-00-00 |
PROTECTER GUIDE COMP., 1 Price: $52.99 |
| 24 |
32D-23103-50-00 |
FRONT FORK ASSY (R.H) Price: $1,336.99 |
| 25 |
3D7-23106-50-00 |
OUTER TUBE COMP. Price: $740.99 |
| 26 |
3D7-23120-00-00 |
INNER TUBE COMP. 2 Price: $396.99 |
| 27 |
5ET-23171-L0-00 |
PISTON, FRONT FORK Price: $23.99 |
| 28 |
5ET-23125-L0-00 |
METAL, SLIDE 1 Price: $38.99 |
| 29 |
5UN-23146-L0-00 |
WASHER, OIL SEAL Price: $17.99 |
| 30 |
5UN-23145-L0-00 |
OIL SEAL Price: $24.99 |
| 31 |
4SS-23153-L0-00 |
RING, SNAP Price: $8.49 |
| 32 |
5HD-23144-L0-00 |
SEAL, DUST Price: $33.99 |
| 33 |
32D-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $451.99 |
| 34 |
32D-2316A-00-00 |
VALVE COMP. Price: $280.99 |
| 35 |
4DA-23147-L0-00 |
O-RING (3XJ-23147-00) Price: $16.49 |
| 36 |
276-23114-01-00 |
GASKET This part replaces 276-23114-00-00. Price: $4.60 |
| 37 |
2HH-23158-L0-00 |
GASKET Price: $11.99 |
| 38 |
3D7-23117-00-00 |
GUIDE, SPRING Price: $38.99 |
| 39 |
3XJ-23357-L0-00 |
NUT Price: $1.30 |
| 40 |
32D-23141-00-00 |
SPRING, FRONT FORK Price: $59.99 |
| 41 |
4SS-23143-L0-00 |
SEAT, SPRING LOWER Price: $13.49 |
| 42 |
3D7-23111-00-00 |
BOLT, CAP Price: $234.99 |
| 43 |
3D7-23147-00-00 |
O-RING Price: $7.49 |
| 44 |
3JD-2312G-L0-00 |
PLUG, HOLE Price: $7.49 |
| 45 |
95024-08040-00 |
BOLT, FLANGE This part replaces 95022-08040-00. Price: $9.49 |
| 46 |
5XC-2314F-00-00 |
PROTECTER GUIDE COMP., 1 Price: $52.99 |
| 47 |
3D7-23340-00-00 |
UNDER BRACKET COMP. Price: $670.99 |
| 48 |
95024-08040-00 |
BOLT, FLANGE This part replaces 95022-08040-00. Price: $9.49 |
| 49 |
3D7-2331E-00-00 |
GUIDE, CABLE Price: $10.99 |
| 50 |
32D-85112-00-00 |
BRACKET, REFLECTOR 1 Price: $24.99 |
| 51 |
32D-85112-10-00 |
BRACKET, REFLECTOR 1 Price: $24.99 |
| 52 |
5VK-23389-00-00 |
GUIDE, CABLE Price: $16.49 |
| 53 |
90105-05016-00 |
BOLT, FLANGE Price: $5.49 |
| 54 |
1C3-2315H-10-00 |
PROTECTOR 1 Price: $22.99 |
| 55 |
4XL-2153A-11-00 |
EMBLEM, YAMAHA This part replaces 4XL-2153A-10-00. Price: $10.99 |
| 56 |
1C3-2315J-10-00 |
PROTECTOR 2 Price: $22.99 |
| 57 |
4XL-2153A-11-00 |
EMBLEM, YAMAHA This part replaces 4XL-2153A-10-00. Price: $10.99 |
| 58 |
3SP-23356-L0-00 |
BOLT 2 Price: $9.49 |
| 59 |
3D7-23466-00-00 |
CLAMP Price: $14.49 |
| 60 |
3D7-23467-00-00 |
CLAMP Price: $19.99 |
