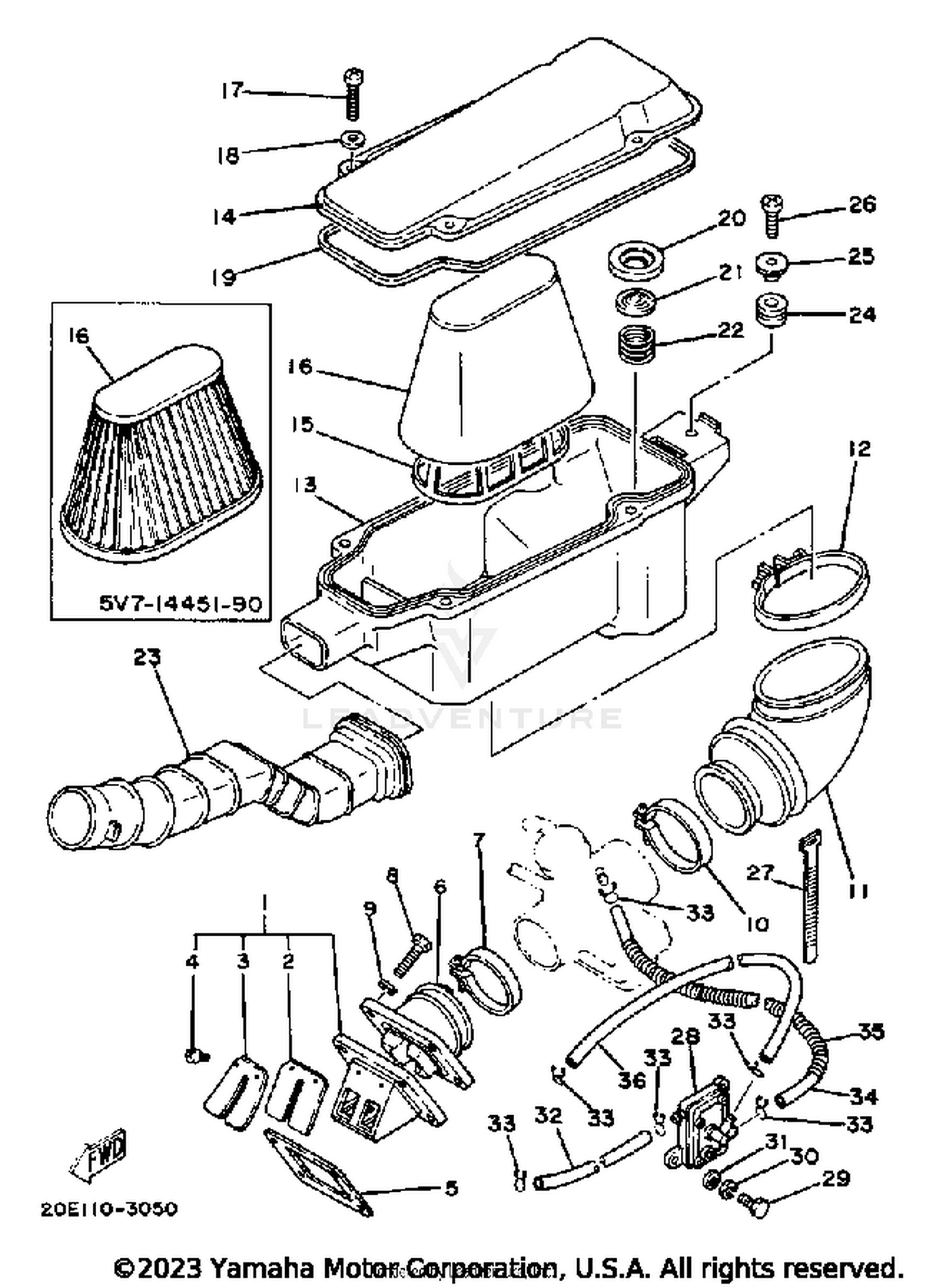

| Ref | Part Number | Description |
|---|
| 1 |
345-13610-20-00 |
REED VALVE ASY This part replaces 558-13610-00-00. Price: $247.99 |
| 2 |
345-13613-70-00 |
REED, VALVE Price: $78.99 |
| 3 |
345-13616-70-00 |
STOPPER, REED VALVE Price: $29.99 |
| 4 |
98580-03008-00 |
SCREW, PAN HEAD (98501-03008-00 Price: $3.85 |
| 5 |
87A-13621-00-00 |
GASKET, VALVE SEAT Price: $9.49 |
| 6 |
345-13565-71-00 |
JOINT, CARBURETOR Price: $172.99 |
| 7 |
90460-43179-00 |
CLAMP, HOSE This part replaces 90460-43053-00. Price: $21.99 |
| 8 |
97017-06025-00 |
BOLT This part replaces 97011-06025-00. Price: $4.55 |
| 9 |
92990-06600-00 |
WASHER, PLATE This part replaces 92901-06600-00. Price: $2.85 |
| 10 |
90460-49058-00 |
CLAMP, HOSE Price: $8.49 |
| 11 |
5V7-14453-00-00 |
JOINT,AIR CLNR 1 Price: $22.99 |
| 12 |
90460-01186-00 |
CLAMP, HOSE Price: $17.99 |
| 13 |
5V7-14411-00-00 |
CASE,AIR CLEANER 1 Price: $40.99 |
| 14 |
5V7-14412-00-00 |
CAP,CLEANER CASE 1 Price: $19.72 |
| 15 |
5V7-14458-00-00 |
GUIDE,ELEMENT Price: $28.99 |
| 16 |
5V7-14451-00-00 |
ELEMENT,AIR CLNR Price: $58.99 |
| 16 |
5V7-14451-90-00 |
ELEMENT,AIR CLNR Price: $26.14 |
| 17 |
98580-06020-00 |
SCREW, PAN HEAD Price: $9.49 |
| 18 |
92990-06600-00 |
WASHER, PLATE This part replaces 92901-06600-00. Price: $2.85 |
| 19 |
1VJ-14462-00-00 |
GASKET, TAIL LENS Price: $19.99 |
| 20 |
93104-18006-00 |
OIL SEAL, SO-TYPE Price: $6.99 |
| 21 |
3X3-14477-00-00 |
PLATE Price: $6.96 |
| 22 |
90501-05588-00 |
SPRING, COMPRESSION Price: $6.49 |
| 23 |
5V7-14437-00-00 |
DUCT Price: $46.99 |
| 24 |
90480-14229-00 |
GROMMET Price: $9.49 |
| 25 |
90387-06033-00 |
COLLAR Price: $9.49 |
| 26 |
98517-06025-00 |
SCREW, PAN HEAD This part replaces 98511-06025-00. Price: $4.05 |
| 27 |
437-83936-11-00 |
BAND, SWITCH CORD Price: $5.00 |
| 28 |
5V7-24410-01-00 |
FUEL PUMP ASSY This part replaces 5V7-24410-00-00. Price: $119.99 |
| 29 |
97024-06020-00 |
BOLT This part replaces 97023-06020-00. Price: $9.49 |
| 30 |
92995-06100-00 |
WASHER, PAN HEAD Price: $3.45 |
| 31 |
92990-06600-00 |
WASHER, PLATE This part replaces 92901-06600-00. Price: $2.85 |
| 32 |
5RB-24315-00-00 |
PIPE 5 This part replaces 90445-09064-00. Price: $8.49 |
| 33 |
90467-08003-00 |
CLIP, SCISSOR Price: $11.49 |
| 34 |
90445-09353-00 |
HOSE Price: $1.98 |
| 35 |
90501-08668-00 |
SPRING, COMPRESSION This part replaces 90501-08430-00. Price: $12.49 |
