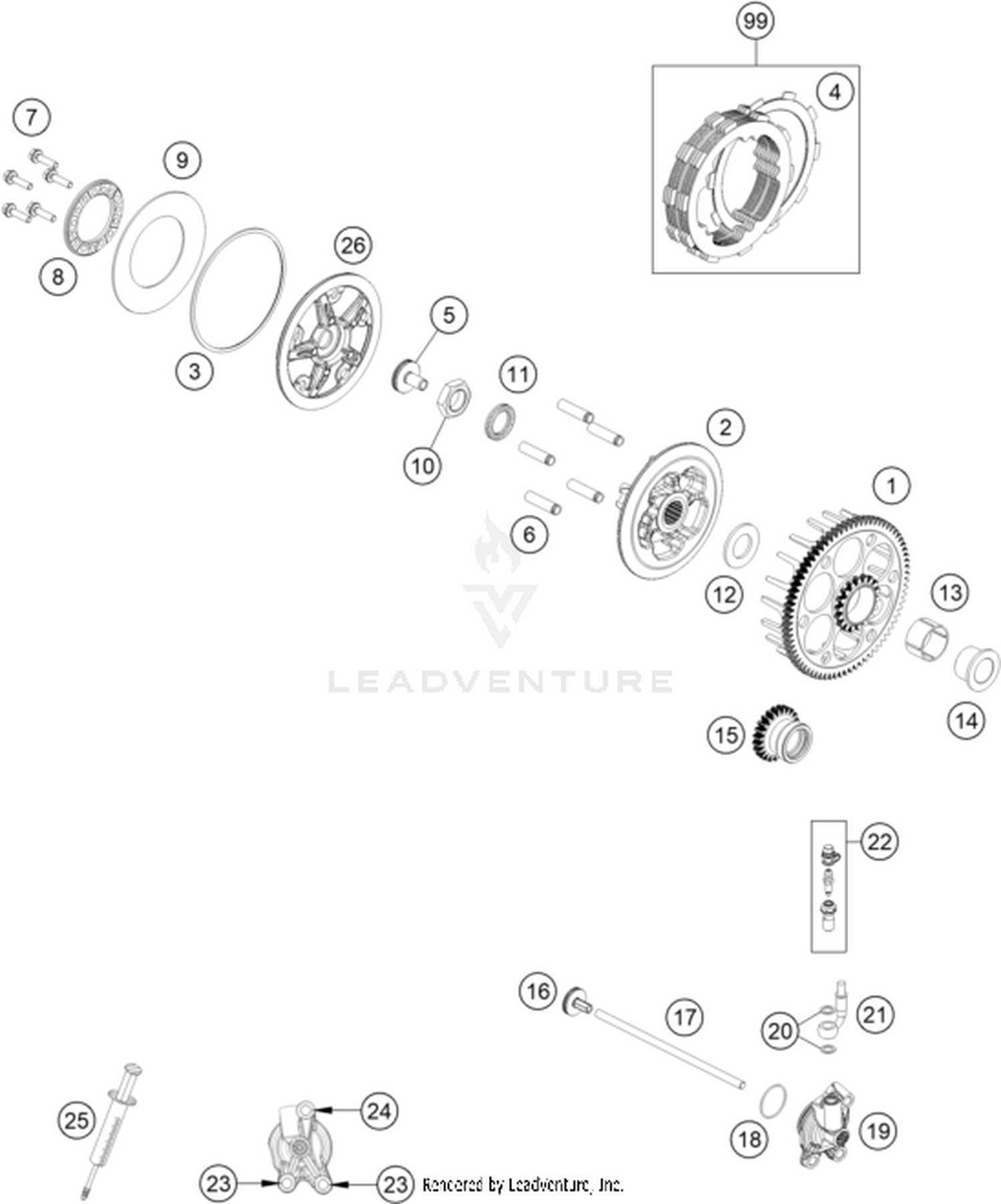

32 CLUTCH
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 50532002000 | Inner clutch hub Price: Call Us |
| 3 | 50532013000 | Inner ring Price: Call Us |
| 4 | 50532011000 | Friction plate 1.95 mm Price: Call Us |
| 5 | 78132057144 | PRESSURE PIECE CPL. Price: Call Us |
| 6 | 50532004100 | Sleeve 7.95x31.65 This part replaces 50532004000. Price: Call Us |
| 7 | 0025050206 | HH collar screw M5x20 TX30 Price: Call Us |
| 8 | 50532006000 | Spring plate Price: Call Us |
| 9 | 50532005000 | Clutch spring Price: Call Us |
| 10 | 0936181506 | Hex nut DIN0936-M18x1.5 right Price: Call Us |
| 11 | 0252012002900 | Wedge lock washer 19.5x29x3.4 Price: Call Us |
| 12 | 50532017000 | Supporting plate 20x36x2.5 Price: Call Us |
| 13 | 0405263017 | Needle cage K263017 Price: Call Us |
| 14 | 50532015000 | Collar 20x26x19,5 Price: Call Us |
| 16 | 78132057144 | PRESSURE PIECE CPL. Price: Call Us |
| 17 | A42032054000 | Push rod Price: Call Us |
| 18 | 0770300015 | O-ring 30x1.5 NBR 70 Price: Call Us |
| 19 | 79232061044 | OUTPUT CYLINDER CPL. Price: Call Us |
| 20 | 0603082121 | SEAL RING CU DIN7603- 8X12X1 Price: Call Us |
| 21 | 79232063000 | CLUTCH PIPE Price: Call Us |
| 22 | 79032064000 | BLEEDER SCREW CPL. Price: Call Us |
| 23 | 0025060166 | HH collar screw M6x16 TX30 Price: Call Us |
| 24 | 0025060256 | HH collar screw M6x25 TX30 Price: Call Us |
| 25 | 50329050000 | VENT INJEKTION HYDR. CLUTCH Price: Call Us |
| 26 | 50532003000 | Preasure plate Price: Call Us |
