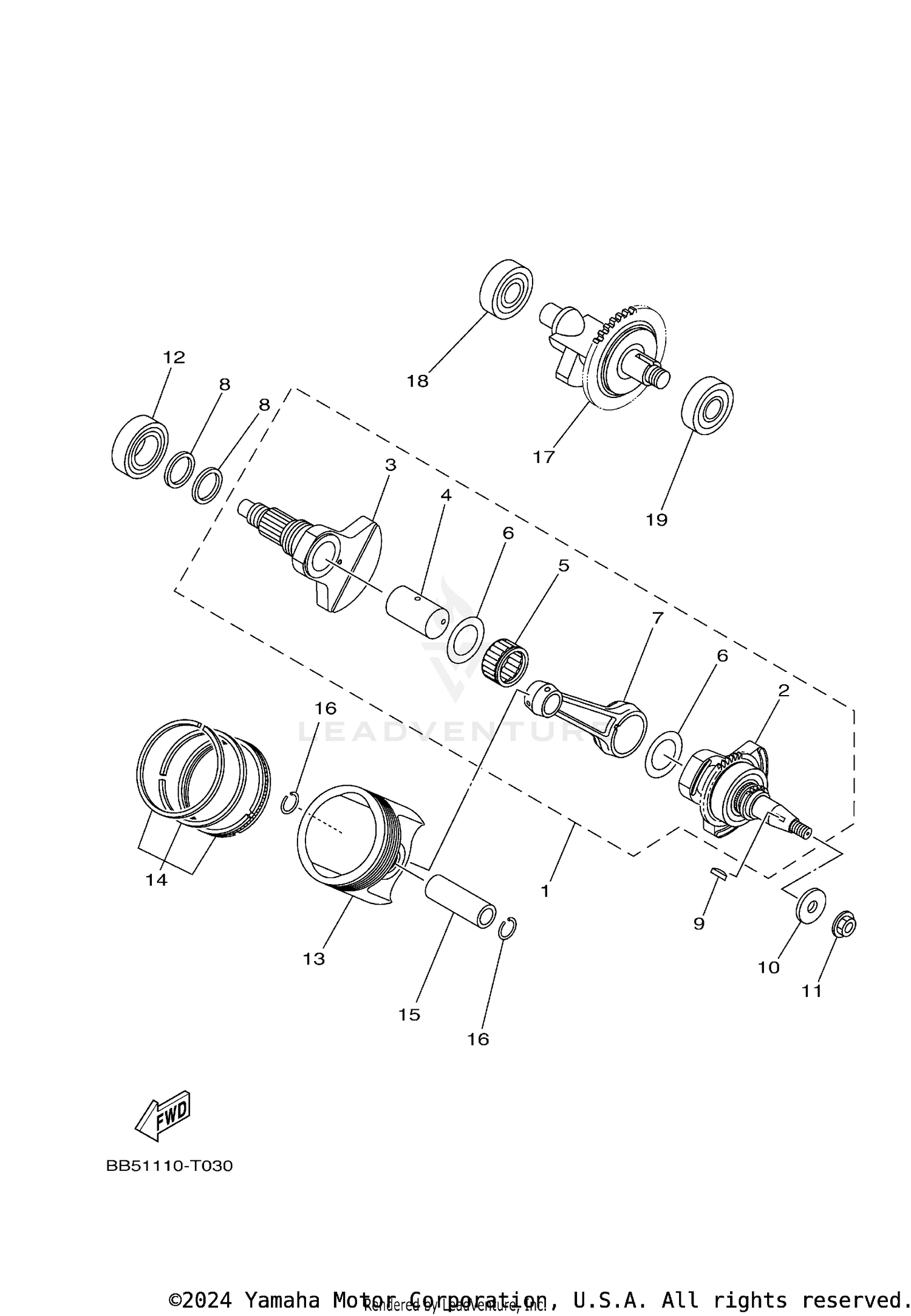

CRANKSHAFT PISTON
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BB5-11400-01-00 | CRANKSHAFT ASSY This part replaces BB5-11400-00-00. Price: $666.99 |
| 2 | BB5-11401-09-00 | CRANK SUB ASSY 1 Price: $326.99 |
| 3 | 5ND-11402-09-00 | CRANK SUB ASSY 2 Price: $239.99 |
| 4 | BB5-11681-00-00 | PIN, CRANK 1 Price: $63.99 |
| 5 | 93310-635D4-00 | BEARING Price: $118.99 |
| 6 | 90201-356K1-00 | WASHER, PLATE Price: $16.49 |
| 7 | 5GH-11651-01-00 | ROD, CONNECTING Price: $164.99 |
| 8 | 5GH-11447-00-00 | SEAL, CRANK Price: $47.99 |
| 9 | 90280-05001-00 | KEY, WOODRUFF This part replaces 90280-05048-00. Price: $13.49 |
| 10 | 90201-14028-00 | WASHER, PLATE Price: $17.49 |
| 11 | 90179-14317-00 | NUT Price: $23.99 |
| 12 | 93306-30629-00 | BEARING Price: $78.99 |
| 13 | 5ND-11631-00-YX | PISTON (STD) This part replaces 5ND-11631-00-00. Price: $132.99 |
| 14 | 5ND-11603-00-00 | PISTON RING SET (STD) Price: $66.99 |
| 15 | 3LD-11633-00-00 | PIN, PISTON Price: $37.99 |
| 16 | 93450-22027-00 | CIRCLIP Price: $8.49 |
| 17 | 5ND-11500-00-00 | BALANCER ASSY Price: $284.99 |
| 18 | 93306-30302-00 | BEARING This part replaces 93306-30315-00. Price: $49.99 |
