Parts Catalog

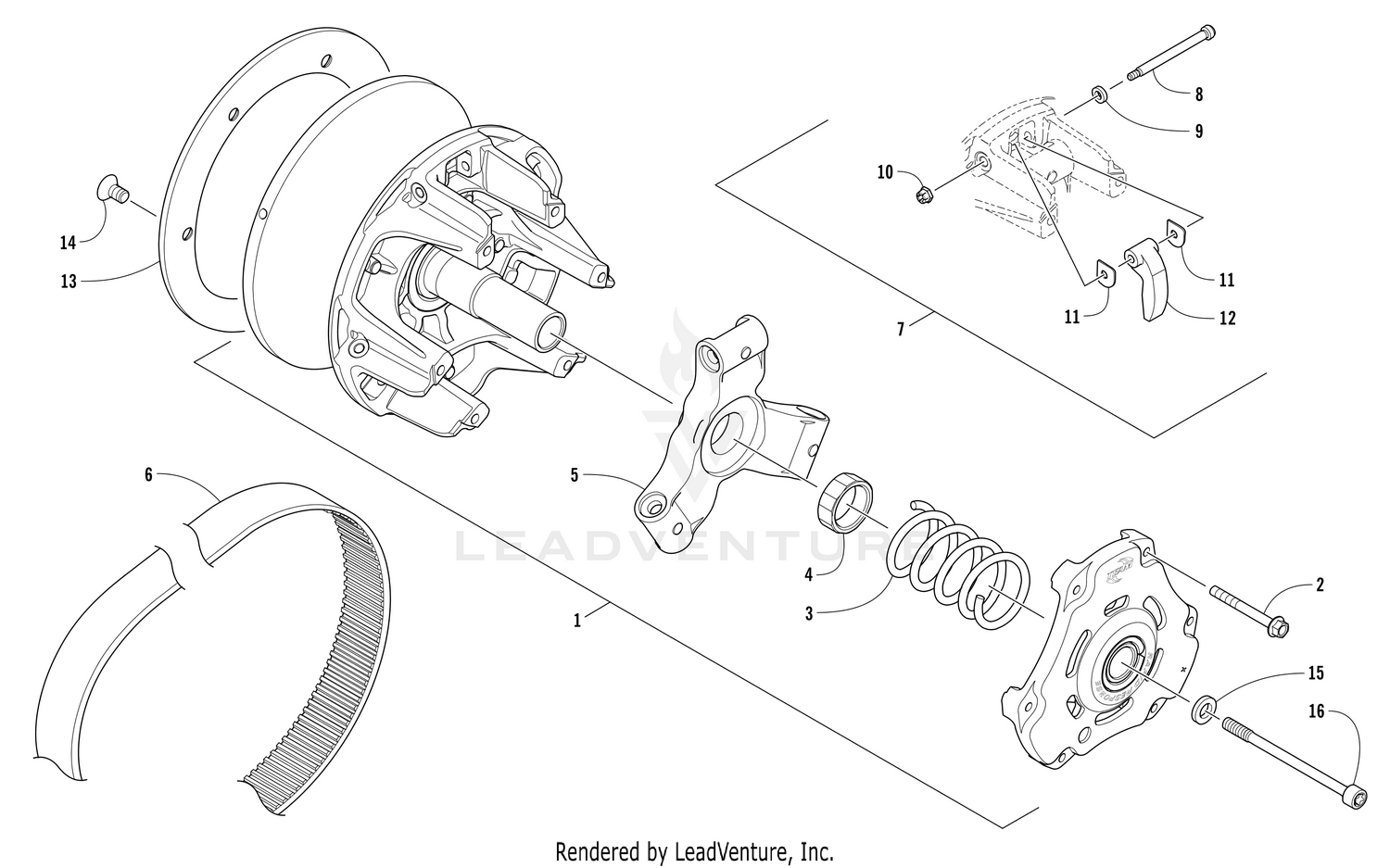

DRIVE CLUTCH [106130]

Parts (13)

Ref	Part Number	Description
2	0646-950	Screw, Shoulder Price: $10.85
3	0646-875	Spring, Drive Clutch Price: $87.95
4	0646-979	Nut, Jam Price: $36.95
5	0646-956	Spider Price: $442.95
6	0627-111	Belt, Drive Price: $239.95
8	0823-396	Screw, Shoulder Price: $13.28
9	2623-091	Washer Price: $6.06
10	0823-399	Nut, Lock Hex Price: $10.85
11	0646-880	Washer, Thrust Price: $18.31
12	0646-906	Arm, Cam Price: $67.95
13	0645-410	Ring, Damper Price: $87.95
14	2623-218	Screw, Machine Price: $12.22
15	1623-649	Washer, Clutch Bolt Price: $6.29
