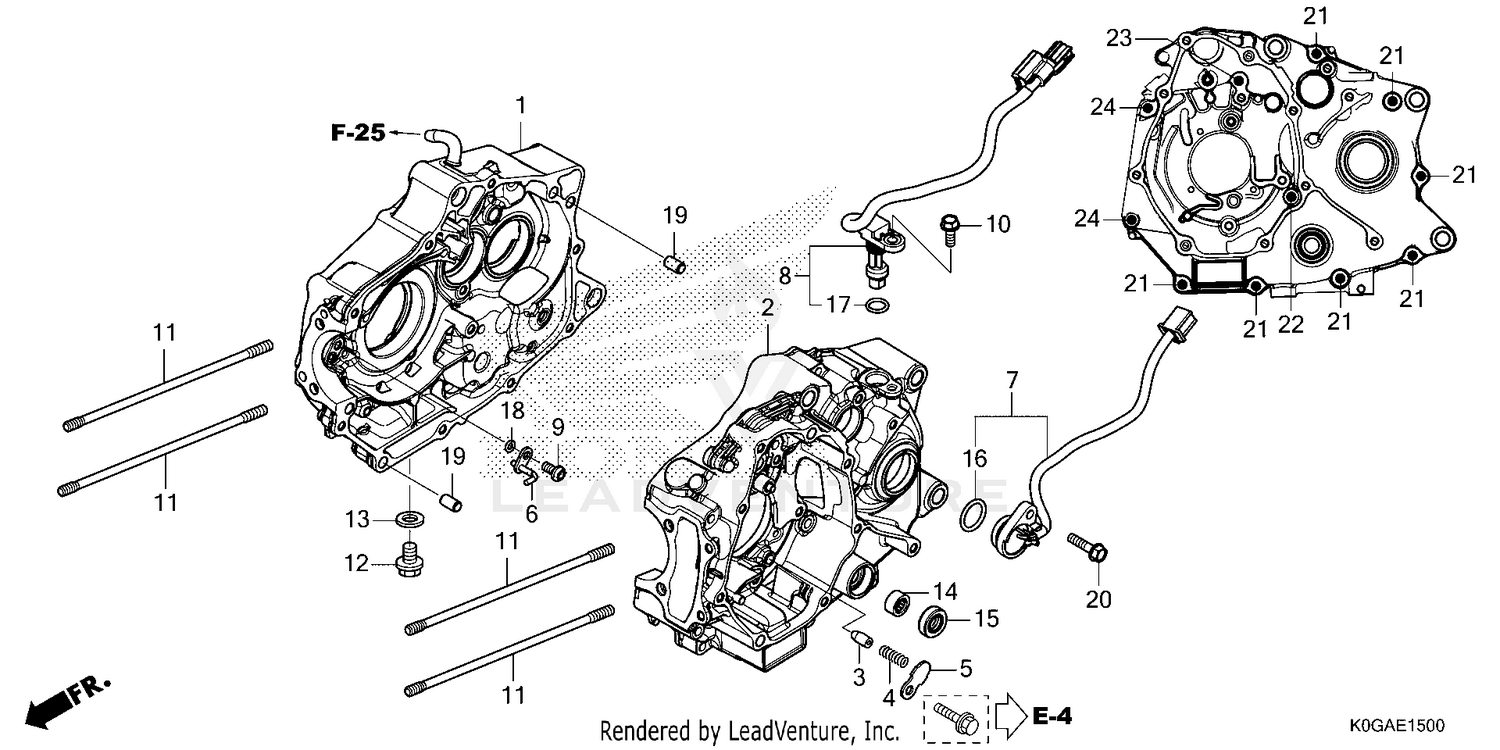

| Ref | Part Number | Description |
|---|
| 1 |
11100-K0G-T20 |
CRANKCASE, R. Price: $129.61 |
| 2 |
11200-K0G-T20 |
CRANKCASE, L. Price: $136.25 |
| 3 |
11215-KYZ-900 |
PLUG, BEARING PUSH Price: $3.00 |
| 4 |
11216-KYZ-900 |
SPRING, BEARING PUSH Price: $0.51 |
| 5 |
11218-K26-G00 |
PLATE, PUSH PLUG Price: $1.31 |
| 6 |
15201-K1M-T02 |
JET, PISTON Price: $5.55 |
| 7 |
35759-K0G-T21 |
CONTACT ASSY. Price: $32.00 |
| 8 |
37700-K0G-T21 |
SENSOR ASSY., SPEED Price: $34.53 |
| 9 |
90003-K0J-N00 |
BOLT, SPECIAL (6X12) Price: $0.25 |
| 10 |
90004-GHB-640 |
BOLT, FLANGE (6X18) (NSHF) Price: $3.35 |
| 11 |
90031-KYY-900 |
BOLT, CYLINDER STUD Price: $5.76 |
| 12 |
90131-896-650 |
BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000. Price: $2.76 |
| 13 |
90407-259-000 |
GASKET, DRAIN PETCOCK (12.5X20) Price: $3.35 |
| 14 |
91053-MFJ-D01 |
BEARING, NEEDLE (12X16X10) Price: $5.36 |
| 15 |
91208-KWB-601 |
OIL SEAL,11.6 X 22 Price: $1.69 |
| 16 |
91301-HP2-671 |
O-RING (21X2.4) Price: $2.65 |
| 17 |
91304-K0L-D01 |
O-RING (11.4X2.1) Price: $1.25 |
| 18 |
91305-K0J-N00 |
O-RING (3.8X1.4) Price: $0.25 |
| 19 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 20 |
95701-06018-00 |
BOLT, FLANGE (6X18) BOLT, HEX. (6X18) Price: $1.70 |
| 21 |
96001-06040-00 |
BOLT, FLANGE (6X40) Price: $2.27 |
| 22 |
96001-06050-00 |
BOLT, FLANGE (6X50) BOLT, FLANGE (6X55) Price: $2.27 |
| 23 |
96001-06060-00 |
BOLT, FLANGE (6X60) Price: $2.27 |
