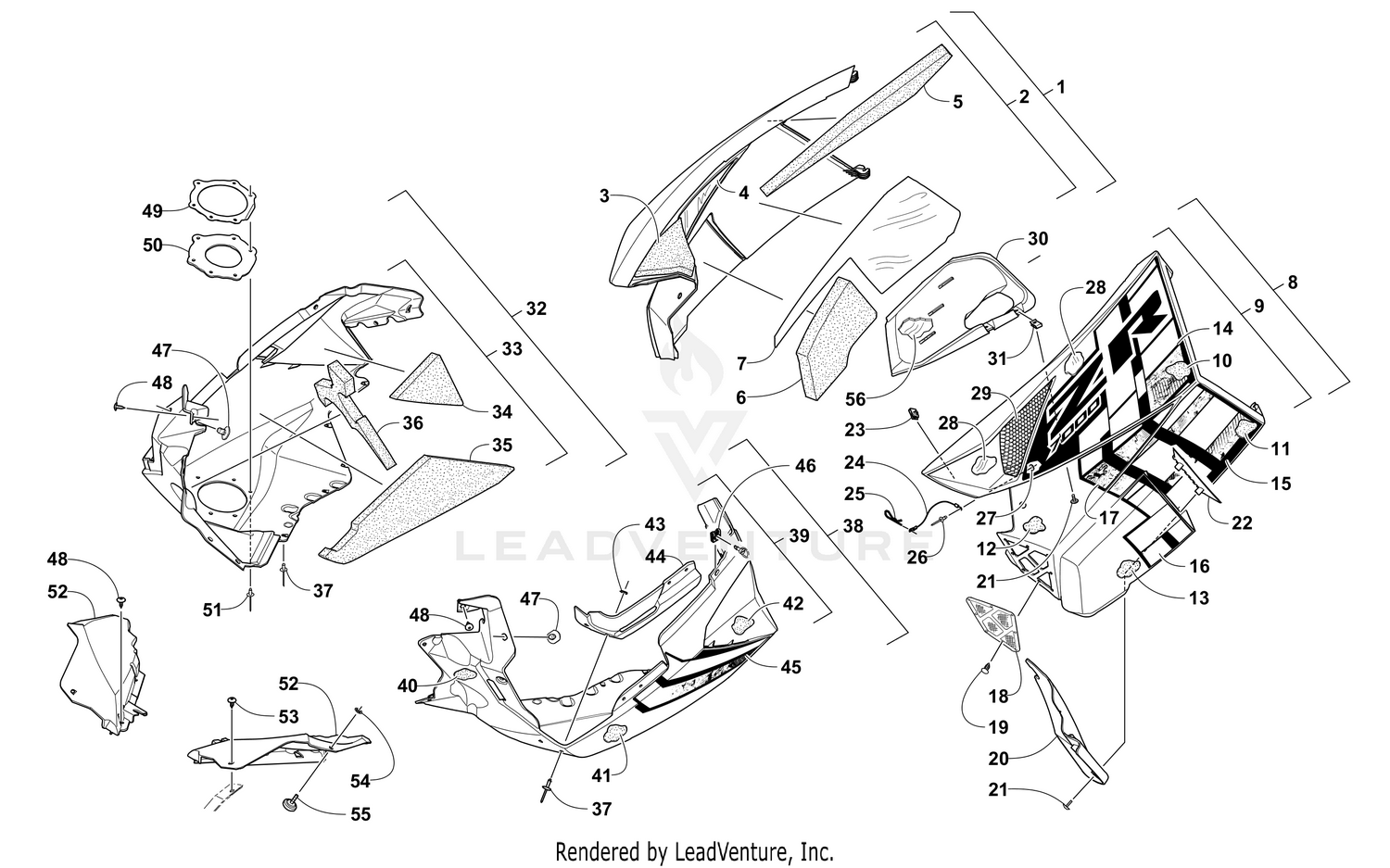

SKID PLATE AND SIDE PANEL ASSEMBLY [104482]

Parts (47)

Ref	Part Number	Description
3	0617-626	Foam, Side Panel - Upper Front - Right Price: $5.09
4	6606-414	Foil, Protective Price: $17.95
5	0617-628	Foam, Side Panel - Upper Rear - Right Price: $45.95
6	0617-632	Foam, Side Panel - Lower Front - Right Price: $24.20
7	6606-416	Foil, Protective Price: $4.23
10	0617-629	Foam, Side Panel - Upper Rear - Left Price: $19.35
11	0617-635	Foam, Side Panel - Lower Rear - Left Price: $19.29
12	0617-631	Foam, Side Panel - Center Front - Left Price: $2.59
13	0617-681	Foam, Side Panel - Lower Front - Left Price: $7.23
14	3621-526	Decal, Side Panel - Upper - Right Price: $42.95
14	3621-527	Decal, Side Panel - Upper - Left Price: $42.95
15	3621-522	Decal, Side Panel - Lower - "7000" - Right Price: $12.50
15	3621-523	Decal, Side Panel - Lower - "7000" - Left Price: $35.95
16	9611-517	Decal, Side Panel - Front Price: $8.44
17	3621-530	Decal, Side Panel - Mid - Right Price: $4.84
17	3621-531	Decal, Side Panel - Vent - Left Price: $16.79
18	2602-704	Screen, Vent Price: $20.56
19	0623-269	Clip, Retaining Price: $1.32
20	2602-711	Deflector, Air Price: $22.99
21	0623-797	Screw, Self-Tapping Price: $0.42
22	2602-703	Retainer, Air Deflector Price: $14.49
23	1623-637	Clip, U-Nut Price: $2.61
24	0607-447	Cable Price: $11.02
25	0605-283	Clip, Hairpin Price: $2.29
26	8060-486	Rivet Price: $0.29
27	8050-127	Washer Price: $1.57
31	1623-030	Clip, U-Nut Price: $1.08
34	0617-640	Foam, Skid Plate - Upper Rear - Right Price: $4.23
35	0617-638	Foam, Skid Plate - Center Front - Right Price: $17.95
36	0617-636	Foam, Skid Plate - Upper Front - Right Price: $45.95
37	8061-708	Rivet Price: $1.08
40	0617-637	Foam, Skid Plate - Upper Front - Left Price: $7.95
41	0617-639	Foam, Skid Plate - Center Front - Left Price: $19.35
42	0617-641	Foam, Skid Plate - Upper Rear - Left Price: $4.72
43	0123-802	Washer Price: $0.23
44	6606-613	Panel, Reinforcement Price: $14.49
45	3621-538	Decal, Skid Plate - Right Price: $12.07
45	3621-539	Decal, Skid Plate - Left Price: $12.07
46	2623-005	Clip, Retaining Price: $2.91
47	6606-592	Pin, Retaining Price: $3.88
48	1623-129	Screw, Self-Tapping Price: $0.29
49	2612-685	Plate, Exhaust Outlet Price: $65.95
50	2612-964	Seal, Exhaust Outlet Price: $13.28
51	8061-508	Rivet Price: $1.53
52	6606-342	Fascia, Front - Right - Black Price: $39.95
52	6606-579	Fascia, Front - Left - Black Price: $38.95
53	0623-784	Screw, Self-Tapping Price: $0.09
