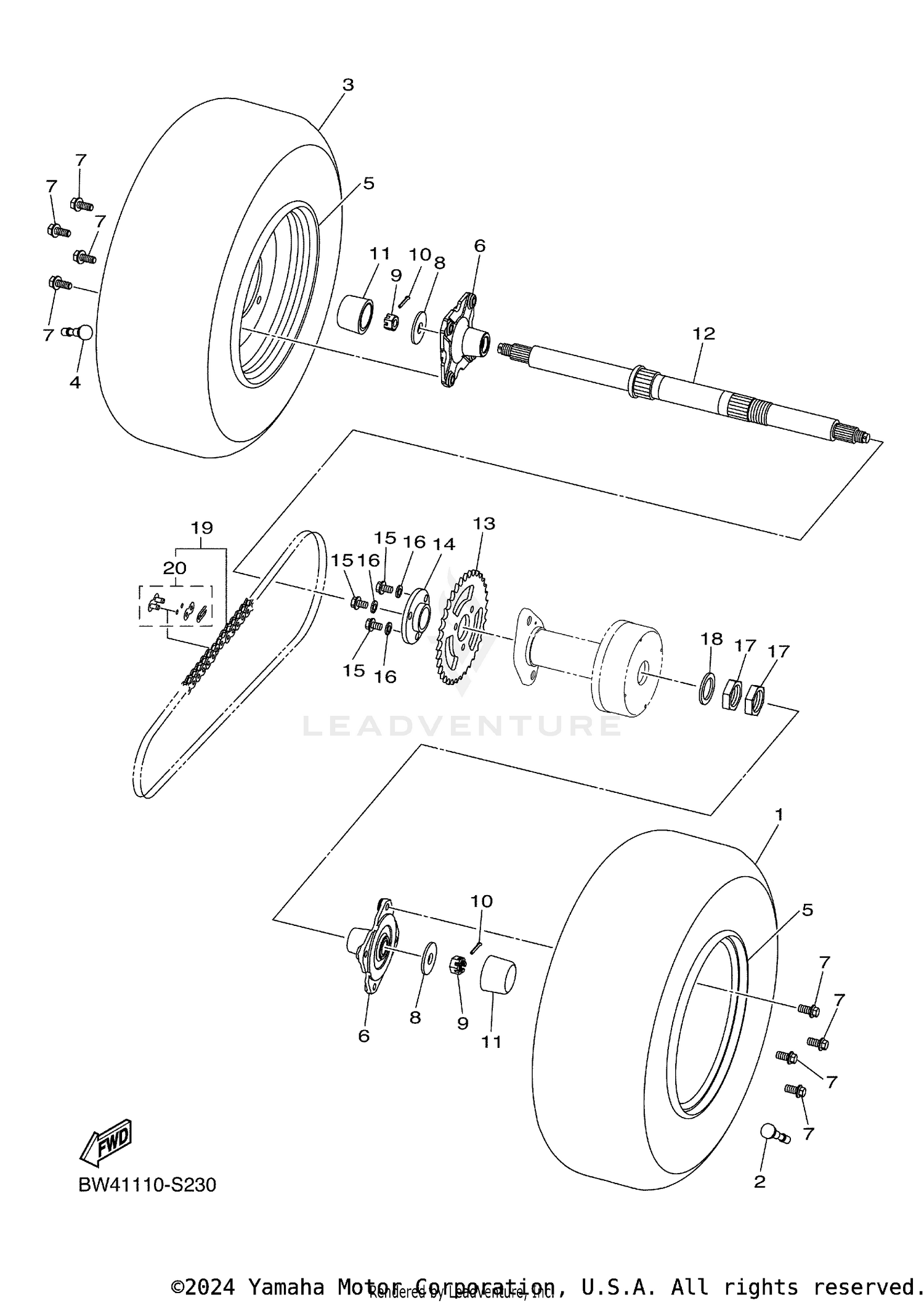

REAR AXLE WHEEL
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BW4-F53P3-00-00 | TIRE Price: $262.99 |
| 2 | BD3-F5170-00-00 | AIR VALVE ASSY Price: $37.99 |
| 3 | BW4-F53P3-00-00 | TIRE Price: $262.99 |
| 4 | BD3-F5170-00-00 | AIR VALVE ASSY Price: $37.99 |
| 5 | BW4-F5390-00-00 | REAR WHEEL COMP. Price: $172.99 |
| 6 | BW4-F5377-00-00 | COLLAR, WHEEL Price: $135.99 |
| 7 | BD3-F4592-10-00 | BOLT Price: $8.49 |
| 8 | BW4-F2243-00-00 | WASHER 1 Price: $10.49 |
| 9 | BW4-F5382-00-00 | NUT, AXLE Price: $8.49 |
| 10 | BD3-F112N-10-00 | PIN Price: $2.80 |
| 11 | BD3-F512A-00-00 | CAP, WHEEL Price: $12.49 |
| 12 | BW4-F5381-00-00 | AXLE, WHEEL Price: $450.99 |
| 13 | BW4-F5438-10-00 | SPROCKET, DRIVEN ( This part replaces BW4-F5438-00-00. Price: $96.99 |
| 14 | BD3-F5386-10-00 | COLLAR, SPROCKET A This part replaces BD3-F5386-00-00. Price: $130.99 |
| 15 | BW4-F3459-00-00 | BOLT Price: $6.49 |
| 16 | BD3-F2156-10-00 | WASHER, PLATE Price: $2.35 |
| 17 | BD3-F1636-10-00 | NUT Price: $49.99 |
| 18 | BD3-F3737-00-00 | WASHER 1 Price: $24.99 |
