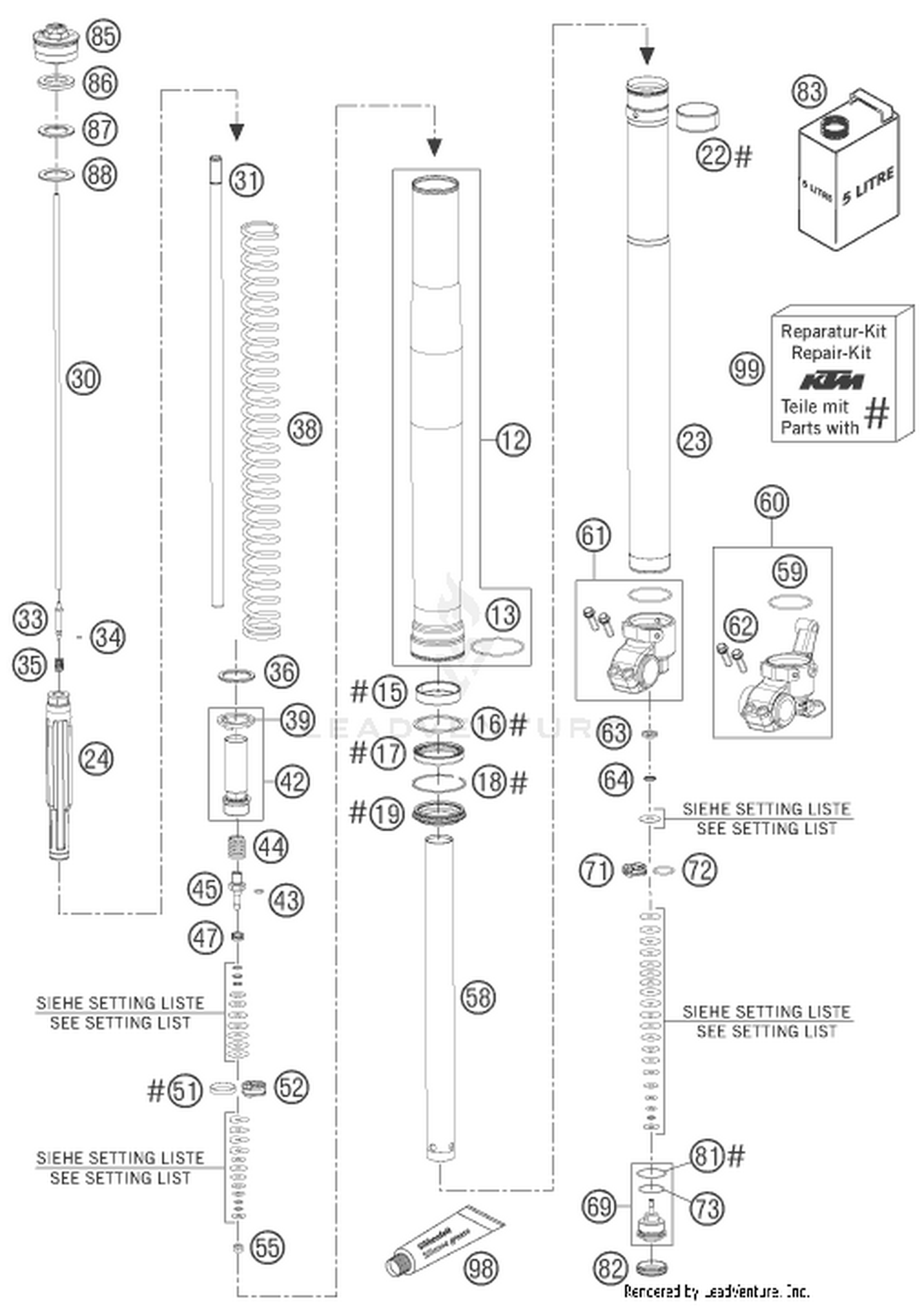

| Ref | Part Number | Description |
|---|
| 12 |
48600553E |
OUTER TUBE L=610MM D=54/60 2L Price: Call Us |
| 13 |
48600016 |
Round-wire snap ring 48x2 Price: Call Us |
| 15 |
48601009 |
Guide bushing 48x52x12 This part replaces 48600429. Price: Call Us |
| 16 |
48600013 |
Supportwasher 50x57,6x1,5 Price: Call Us |
| 17 |
S604800001000C1 |
Shaft seal SKF 48x58x11,4 black This part replaces 48600399. Price: Call Us |
| 18 |
48600070 |
Snap ring SB58x1,5 acc drawing Price: Call Us |
| 19 |
S604800000000C1 |
Dirtscarper SKF 48mm black This part replaces 48600400. Price: Call Us |
| 22 |
48601008 |
Guide bushing 47x49x20 This part replaces 48600428. Price: Call Us |
| 23 |
48600417 |
INNER TUBE D=48 L=595 2005 Price: Call Us |
| 24 |
48600380S1 |
Stop 14,4x32,1x200 cpl. This part replaces 48600241S1. Price: Call Us |
| 30 |
48600143 |
ADJUSTMENT TUBE L=467MM 06 Not Available Price: |
| 31 |
48600538 |
PISTON ROD D=14 M11X1 L=501 Not Available Price: |
| 33 |
48600189 |
Needle 6x42,6 rebound Price: Call Us |
| 34 |
48600046 |
O-ring 3x1,5 NBR70 Price: Call Us |
| 35 |
48600033 |
Spring (7,2) 4-23 needle Price: Call Us |
| 36 |
48600037 |
Preload bush 26,5x42x5 Price: Call Us |
| 38 |
91410045S |
SPRING 5,9 N/MM SET D=5,5MM Price: Call Us |
| 39 |
48600021 |
Spring retainer 33,5x43x3 Price: Call Us |
| 42 |
48600196S |
Screw sleeve M29,3x1 cpl. Price: Call Us |
| 43 |
48600239 |
O-ring 8x1,25 NBR70 siliconize Price: Call Us |
| 44 |
48600403 |
Spring (15) 12-34,5 rebound Price: Call Us |
| 45 |
48600203 |
Tap 6x45 rebound Price: Call Us |
| 47 |
35480377 |
Spring (11,7) 1,5-8 valve Price: Call Us |
| 51 |
48600060 |
Pistonring 26x28x5 Price: Call Us |
| 52 |
48600042 |
Piston 6,05x27,65x12 rebound Price: Call Us |
| 55 |
40540486 |
Nut M6x0,5 h6,5 WAF10 rebound Price: Call Us |
| 58 |
48600537 |
TUBE 28X29,3X1 L=435 ALU D=8,5 Not Available Price: |
| 59 |
48600048 |
O-ring 46x2 NBR70 siliconized Price: Call Us |
| 60 |
48600534S |
AXLE CLAMP L/S KPL. D=48 06 Not Available Price: |
| 61 |
48600861S |
Axle clamp right cpl. This part replaces 48600238S. Price: Call Us |
| 62 |
0025080256 |
HH collar screw M8x25 This part replaces 0015080253. Price: Call Us |
| 63 |
48600163 |
Nut valve M6x0,5 h6,5 WAF17 Price: Call Us |
| 64 |
48600202 |
Spring (8,5) l6,5 valve Price: Call Us |
| 69 |
48600586S3 |
Compression, cmpl. This part replaces 48600152S1. Price: Call Us |
| 71 |
48600047 |
Piston 6x27,8x9 compression Price: Call Us |
| 72 |
46811499 |
O-ring 21x2 NBR70 Price: Call Us |
| 73 |
35480320 |
O-ring 24x2 NBR70 Price: Call Us |
| 81 |
48600004 |
Copper disc 29,5x33,5x1 Price: Call Us |
| 82 |
48600141 |
Rubber cap 35x10 NBR80 Price: Call Us |
| 83 |
48601166S1 |
Fork Fluid Viscosity 4.0 5L This part replaces 48600401S1. Price: Call Us |
| 85 |
48600431S |
PRE-LOAD ADJ. CPL. M51X1,5 05 Price: Call Us |
| 86 |
48600053 |
Preload bush 26,5x42x1,5 Price: Call Us |
| 87 |
48600036 |
Preload bush 42x26,5x2,5 Price: Call Us |
| 88 |
48600038 |
Preload bush 26,5x42x10 Price: Call Us |
| 98 |
T14034 |
Fuchs grease IPR (250g) This part replaces T511. Price: Call Us |
