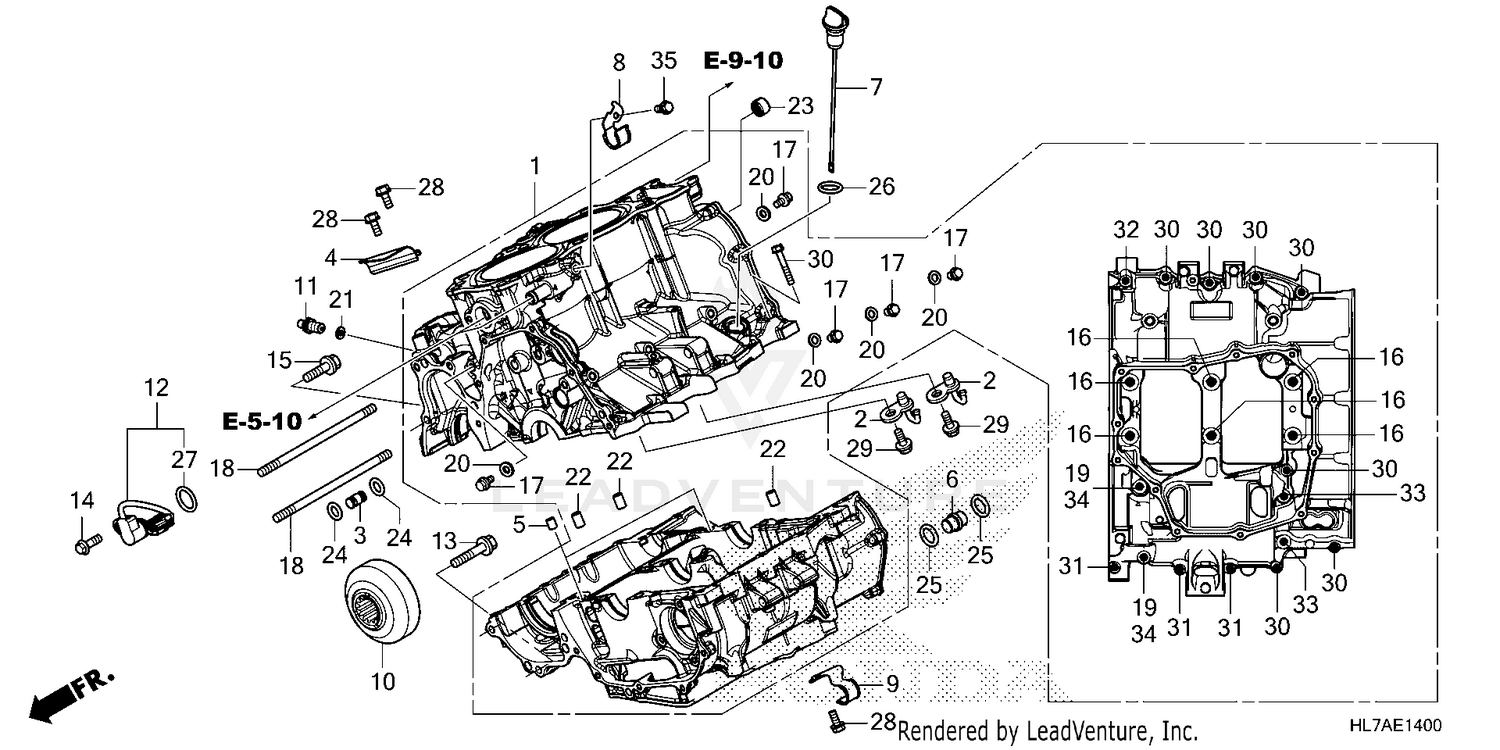

| Ref | Part Number | Description |
|---|
| 1 |
11000-HL6-A01 |
CRANKCASE SET Price: $2,974.26 |
| 2 |
11140-HL6-A02 |
JET, PISTON Price: $84.62 |
| 3 |
11145-HL4-000 |
PIN, OIL GUIDE (8MM) Price: $10.45 |
| 4 |
11150-HL4-000 |
COVER, ANGLE SENSOR Price: $6.84 |
| 5 |
11207-HL4-000 |
ORIFICE (1.3MM) Price: $3.89 |
| 6 |
15236-HL4-000 |
JOINT, SPECIAL Price: $11.22 |
| 7 |
15660-HL6-A00 |
DIPSTICK, OIL Price: $21.44 |
| 8 |
17560-HL6-A00 |
STAY, FUEL HOSE Price: $6.84 |
| 9 |
19510-HL6-A00 |
STAY, OIL COOLER HOSE Price: $9.00 |
| 10 |
23060-HL4-AJ0 |
DAMPER, FINAL DRIVE Price: $242.75 |
| 11 |
35600-HL4-003 |
SWITCH, NEUTRAL Price: $23.47 |
| 12 |
38800-HL6-A01 |
SENSOR ASSY., ANGLE (350DEGREE) Price: $237.69 |
| 13 |
90003-MCS-000 |
BOLT, FLANGE (8X40) Price: $2.22 |
| 14 |
90011-MGE-D00 |
BOLT, KNOCK (6MM) Price: $3.29 |
| 15 |
90014-HL4-000 |
BOLT, FLANGE (8X28) Price: $4.73 |
| 16 |
90015-HL4-003 |
BOLT, FLANGE (10X110) Price: $6.42 |
| 17 |
90024-HL4-BA0 |
BOLT, SEALING (8MM) Price: $1.65 |
| 18 |
90031-HL4-000 |
BOLT, STUD (8X167) Price: $9.53 |
| 19 |
90442-MR1-770 |
WASHER, SEALING (8MM) Price: $2.60 |
| 20 |
90471-HL4-BA0 |
GASKET (8MM) Price: $0.85 |
| 21 |
90545-MC0-000 |
WASHER, OIL BOLT (10.2X15X1.4) Price: $4.25 |
| 22 |
90701-MV9-670 |
PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 23 |
91024-MGS-D21 |
BEARING, NEEDLE (12X18X12) Price: $4.71 |
| 24 |
91305-MG7-003 |
O-RING (5X1.7) (ARAI) Price: $3.62 |
| 25 |
91306-HL4-000 |
O-RING (22.8X2.4) Price: $3.71 |
| 26 |
91307-035-000 |
O-RING (18X3) Price: $3.40 |
| 27 |
91310-MGE-D01 |
O-RING (16.5X2.5) Price: $5.49 |
| 28 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 29 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 30 |
95701-06040-00 |
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) Price: $1.97 |
| 31 |
95701-06050-00 |
BOLT, FLANGE (6X50) (Honda Code 2410975) Price: $2.27 |
| 32 |
95701-06060-00 |
BOLT, FLANGE (6X60) Price: $0.36 |
| 33 |
95701-08040-00 |
BOLT, FLANGE (8X40) Price: $1.44 |
| 34 |
95701-08065-00 |
BOLT, FLANGE (8X65) Price: $1.96 |
