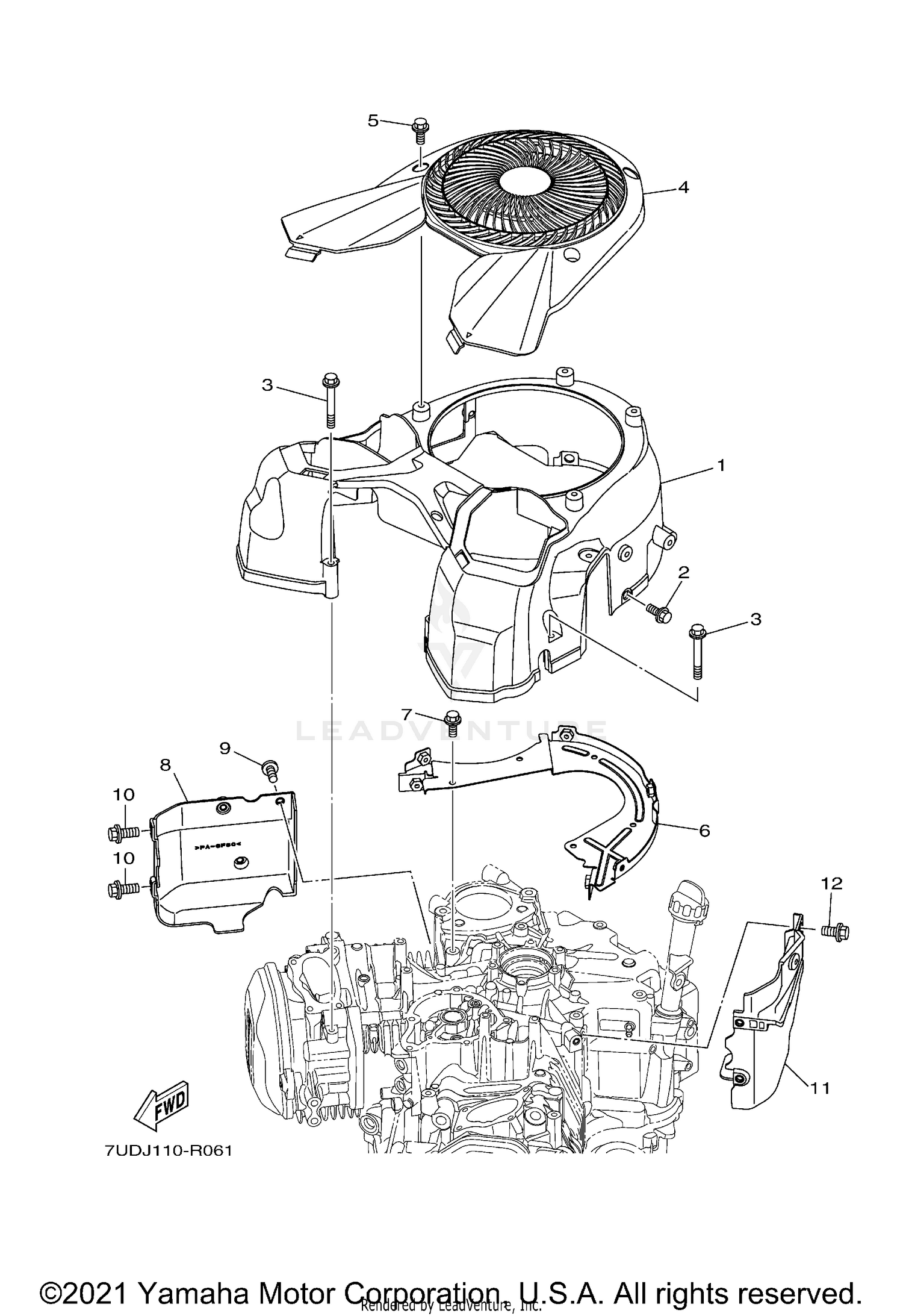

AIR SHROUD STARTER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 7UD-E2621-00-00 | CASE, FAN Price: $103.99 |
| 2 | 90109-06190-00 | BOLT Price: $5.99 |
| 3 | 95817-06055-00 | BOLT, FLANGE This part replaces 95802-06055-00. Price: $2.35 |
| 4 | 7UD-E2616-00-00 | COVER, FAN CASE Price: $87.99 |
| 5 | 90109-06190-00 | BOLT Price: $5.99 |
| 6 | 7UD-E2646-00-00 | SCROLL, AIR SHROUD Price: $30.99 |
| 7 | 95817-06014-00 | BOLT, FLANGE This part replaces 95802-06014-00. Price: $2.80 |
| 8 | 7UD-E2651-10-00 | AIR SHROUD, CYLINDER 1 Price: $31.99 |
| 9 | 95812-06010-00 | BOLT, FLANGE This part replaces 95802-06010-00. Price: $3.20 |
| 10 | 95817-06016-00 | BOLT, FLANGE This part replaces 95802-06016-00. Price: $1.95 |
| 11 | 7UD-E2653-10-00 | AIR SHROUD, CYLINDER 3 Price: $24.99 |
