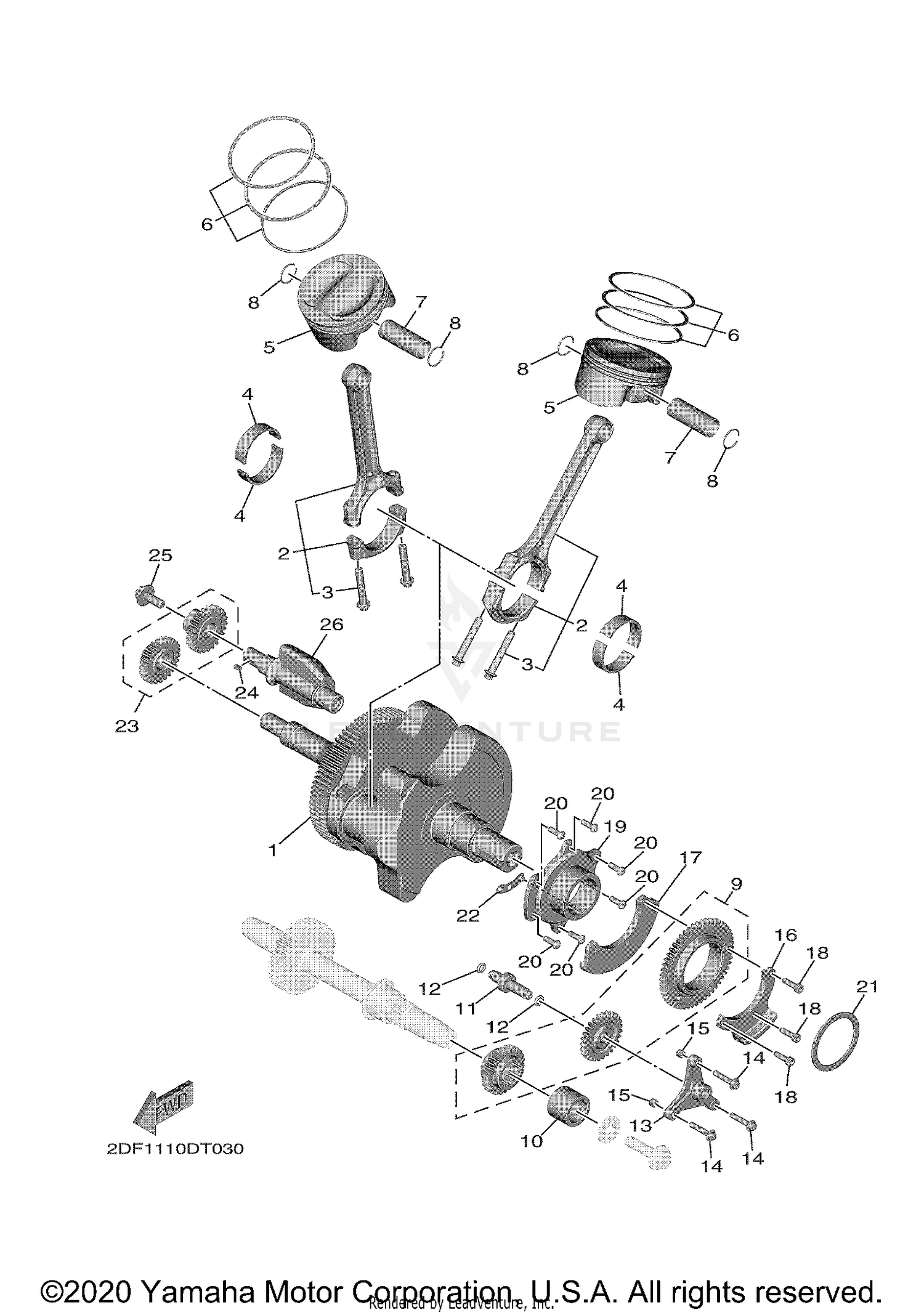

CRANKSHAFT PISTON
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2DF-11400-00-00 | CRANKSHAFT ASSY Price: $878.99 |
| 2 | 5C7-11650-01-00 | CONNECTING ROD ASSY Price: $344.99 |
| 3 | 5YU-11654-00-00 | BOLT, CONNECTING ROD Price: $8.49 |
| 5 | 2DF-11631-00-00 | PISTON (STD) Price: $147.99 |
| 6 | 2DF-11610-00-00 | PISTON RING SET (STD) Price: $34.99 |
| 7 | 5VK-11633-00-00 | PIN, PISTON Price: $45.99 |
| 8 | 93450-23172-00 | CIRCLIP Price: $1.15 |
| 9 | 2DF-W114B-00-00 | DRIVE GEAR SET Price: $210.99 |
| 10 | 2DF-11478-00-00 | COLLAR Price: $16.49 |
| 11 | 1D7-11455-00-00 | SHAFT 1 Price: $33.99 |
| 12 | 93210-06003-00 | O-RING Price: $6.49 |
| 13 | 2DF-1135A-00-00 | BRACKET Price: $24.99 |
| 14 | 90109-06028-00 | BOLT Price: $1.60 |
| 15 | 99530-08012-00 | PIN, DOWEL Price: $6.60 |
| 16 | 2DF-11454-00-00 | WEIGHT 1 Price: $61.99 |
| 17 | 2DF-1145A-00-00 | WEIGHT 3 Price: $55.99 |
| 18 | 91314-06020-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06211-00. Price: $2.65 |
| 19 | 2DF-11444-00-00 | HOUSING Price: $154.99 |
| 20 | 90149-06161-00 | SCREW This part replaces 90149-06166-00. Price: $8.49 |
| 21 | 1D7-11483-00-00 | WASHER, WEIGHT 1 Price: $31.99 |
| 22 | 2DF-11479-00-00 | GASKET Price: $32.99 |
| 23 | 1D7-W114A-01-00 | BREAKER GEAR SET Price: $156.99 |
| 24 | 90282-04001-00 | KEY, STRAIGHT Price: $6.49 |
| 25 | 90105-10445-00 | BOLT, WASHER BASED Price: $12.49 |
