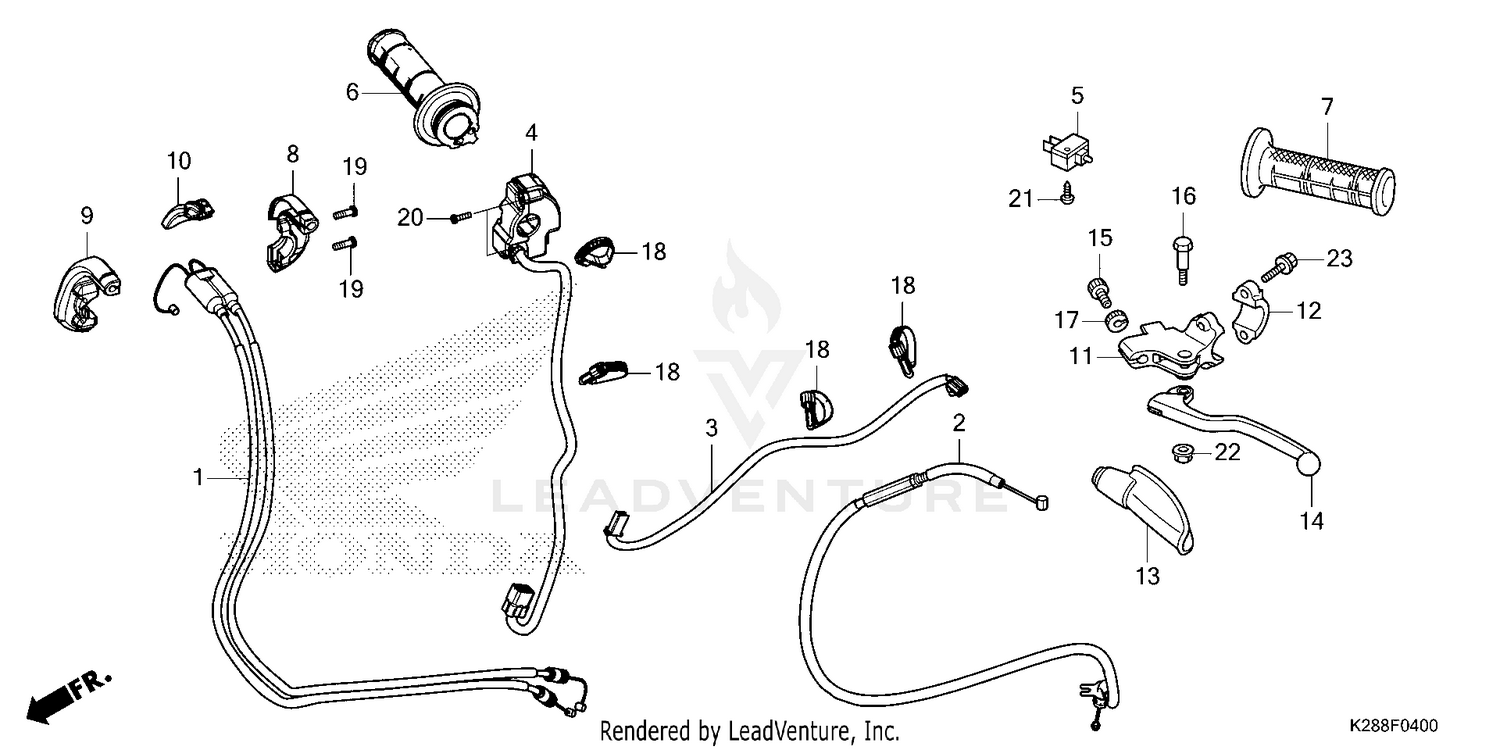

| Ref | Part Number | Description |
|---|
| 1 |
17910-K28-A61 |
CABLE, THROTTLE Price: $84.04 |
| 2 |
22870-K28-A61 |
CABLE, CLUTCH Price: $39.89 |
| 3 |
32101-K28-A60 |
SUB-HARNESS, CLUTCH Price: $15.11 |
| 4 |
35130-K28-A61 |
SWITCH ASSY., ENGINE STOP Price: $103.00 |
| 5 |
35330-MK5-003 |
SWITCH ASSY., CLUTCH Price: $21.53 |
| 6 |
53140-K28-A60 |
GRIP, THROTTLE Price: $34.35 |
| 7 |
53166-K28-305 |
GRIP, L. HANDLE (COO) Price: $13.05 |
| 8 |
53167-K28-A60 |
HOUSING, THROTTLE (UPPER) Price: $31.64 |
| 9 |
53168-K28-A60 |
HOUSING, THROTTLE (LOWER) Price: $34.84 |
| 10 |
53169-K28-A60 |
SLIDER, THROTTLE CABLE Price: $9.13 |
| 11 |
53172-K28-910 |
BRACKET, L. HANDLE LEVER Price: $81.13 |
| 12 |
53174-K28-910 |
HOLDER, L. LEVER BRACKET Price: $20.44 |
| 13 |
53177-KZZ-900 |
COVER, L. HANDLE LEVER Price: $3.24 |
| 14 |
53178-K28-305 |
LEVER, L. HANDLE (COO) This part replaces 53178-K28-910. Price: $50.60 |
| 15 |
53192-KTJ-900 |
BOLT, WIRE ADJUSTING Price: $7.05 |
| 16 |
90113-KYY-900 |
BOLT, HANDLE LEVER PIVOT Price: $3.71 |
| 17 |
90321-KTJ-900 |
NUT, FIXING Price: $12.03 |
| 18 |
90650-KW3-000 |
BAND, WIRE Price: $5.62 |
| 19 |
93500-05016-0G |
SCREW, PAN (5X16) SCREW, PAN (4X20) Price: $0.95 |
| 20 |
93892-04014-07 |
SCREW-WASHER (4X14) Price: $1.03 |
| 21 |
93901-32220 |
SCREW, TAPPING (3X10) Price: $0.95 |
| 22 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
