Parts Catalog

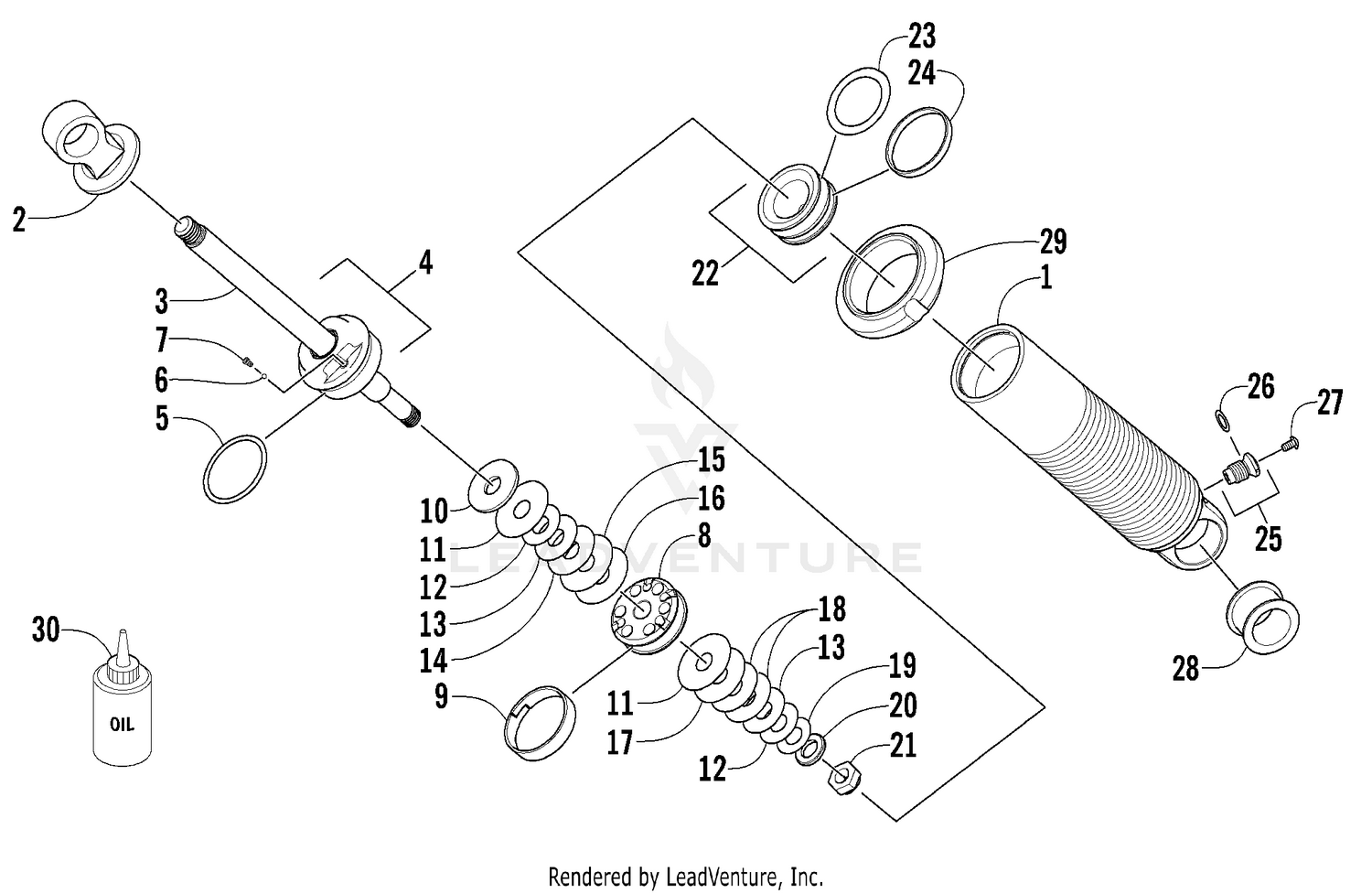

REAR SUSPENSION FRONT ARM SHOCK ABSORBER [60067]

Parts (26)

Ref	Part Number	Description
1	2604-154	Body, Shock Price: $171.95
2	1604-825	Eyelet, Shock Price: $59.95
3	2604-861	SHAFT, CHROME.498 X 5.75" Price: $100.95
5	1604-271	O-Ring Price: $2.66
6	2604-276	Ball, Check Price: $1.09
7	2604-277	Screw, Set Price: $0.39
8	0603-952	PISTON, 0.059 ORIFICE Price: $23.53
9	1604-274	STRAP, PISTON - TEFLON Price: $26.95
10	1604-272	Washer, Top Out Price: $1.70
11	2603-125	VALVE,SHOCK-1.250 DIA X .010 Price: $6.69
12	2603-055	VALVE,SHOCK- .800 DIA X .010 Price: $3.99
13	2603-065	VALVE,SHOCK- .900 DIA X .010 Price: $4.82
14	2603-076	VALVE,SHOCK-1.000 DIA X .012 Price: $4.94
15	2603-096	VALVE,SHOCK-1.100 DIA X .012 Price: $4.09
16	2603-136	VALVE,SHOCK-1.300 DIA X .012 Price: $4.82
17	2603-095	VALVE,SHOCK-1.100 DIA X .010 Price: $3.99
18	2603-075	VALVE,SHOCK-1.000 DIA X .010 Price: $4.82
19	2603-045	Valve, .700 DIA X .010 Price: $3.89
20	1604-273	Washer, Backup Price: $0.79
21	0623-696	Nut, Lock Price: $1.59
23	2604-152	O-Ring, Piston - Floating Price: $2.15
24	2604-153	Strap, Piston – Teflon Price: $7.95
26	0830-168	ORING,7.6454 ID X 1.778 CS Price: $1.20
27	0624-546	Screw, Machine Price: $0.39
28	2604-156	Bushing Price: $9.64
29	1603-911	Nut, Adjuster Price: $4.09
