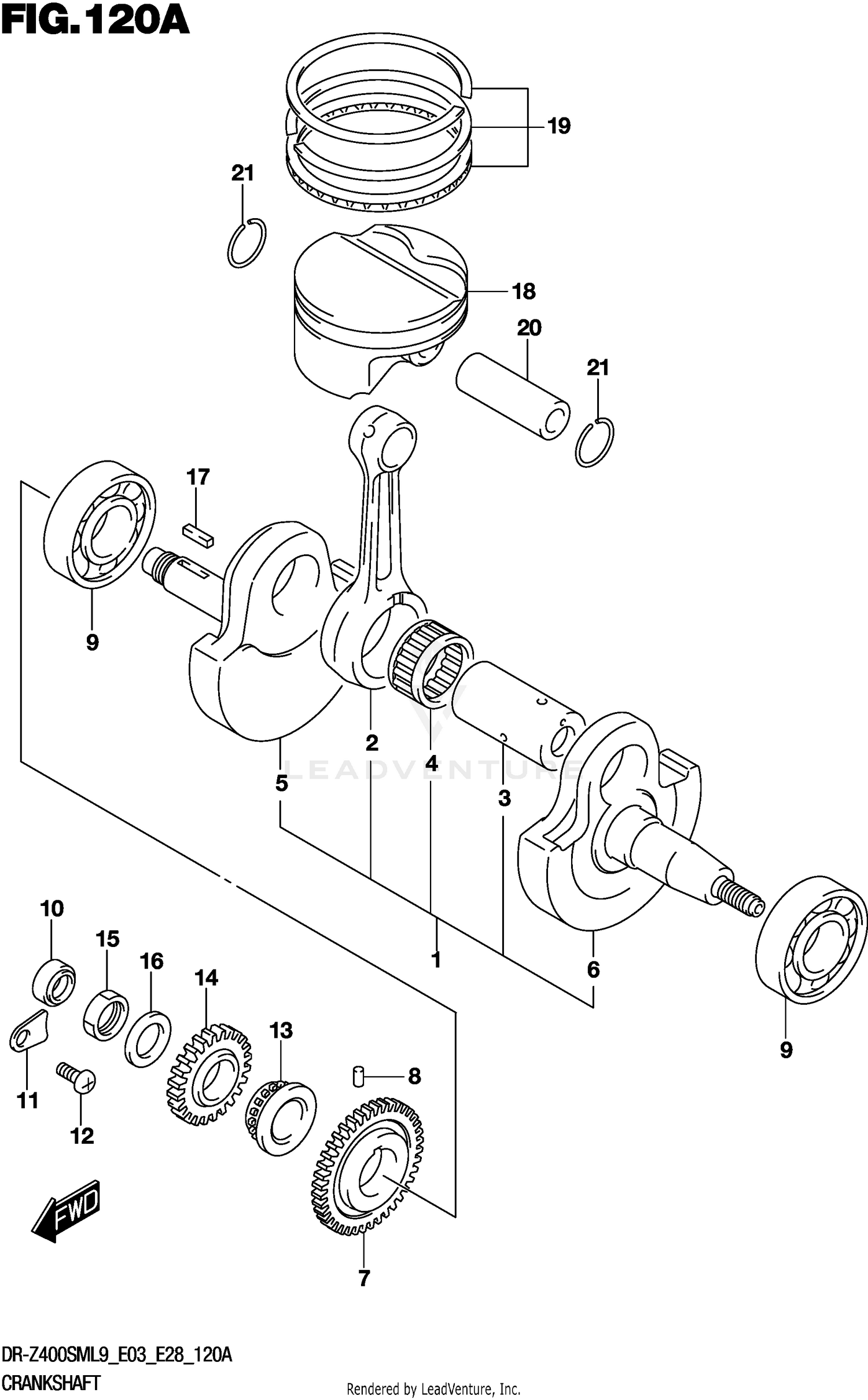

CRANKSHAFT
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 12200-33H00 | CRANKSHAFT ASSY Price: $987.93 |
| 7 | 12661-29F00 | GEAR,CRANK BALANCER DRIVE (NT Price: $156.02 |
| 8 | 09261-05005 | PIN (5X8) Price: $1.73 |
| 9 | 09262-30100 | BEARING (30X72X18) Price: $92.03 |
| 11 | 24742-18A00 | RETAINER,BEARING Price: $4.72 |
| 12 | 02112-0612A | SCREW Price: $1.73 |
| 13 | 12731-29F10 | SPROCKET,CAM CHAIN DRIVE (NT: Price: $67.32 |
| 14 | 21111-29F10 | GEAR,PRIMARY DRIVE (NT:25) Price: $87.73 |
| 15 | 09140-18012 | NUT Price: $10.19 |
| 16 | 09164-18008 | WASHER (18.3X31.5X2) Price: $5.18 |
| 17 | 09421-05002 | KEY Price: $4.82 |
| 18 | 12111-29F00-0F0 | PISTON Price: $197.84 |
| 19 | 12140-29F00 | RING SET,PISTON Price: $71.38 |
| 20 | 12151-24F10 | PIN,PISTON Price: $24.53 |
