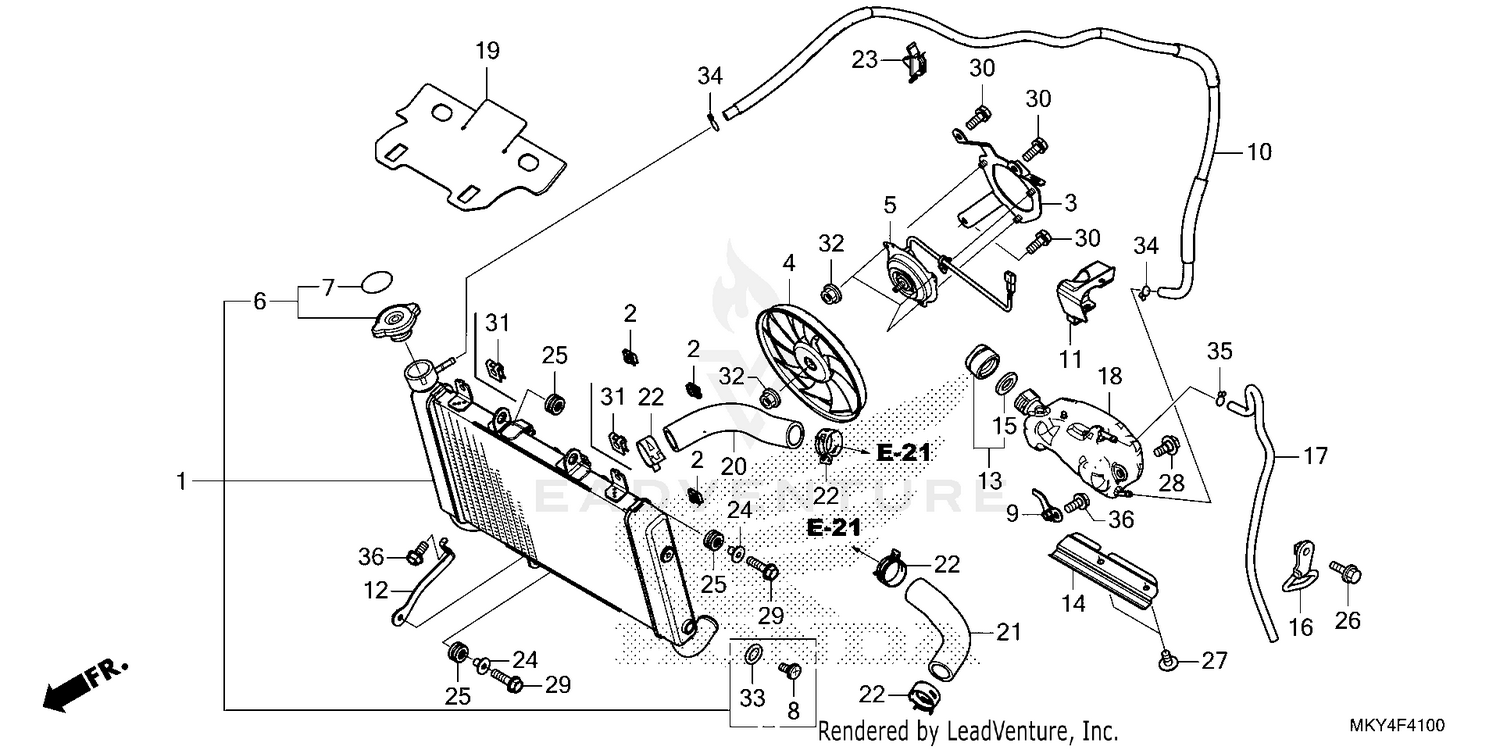

| Ref | Part Number | Description |
|---|
| 1 |
19010-MKN-L51 |
RADIATOR (TOYO) Price: $245.80 |
| 2 |
19014-KEA-003 |
NUT, SETTING (6MM) Price: $3.89 |
| 3 |
19015-MJE-D01 |
SHROUD Price: $23.36 |
| 4 |
19020-MFG-D01 |
FAN, COOLING Price: $46.91 |
| 5 |
19030-MKN-D51 |
MOTOR ASSY., FAN Price: $133.87 |
| 6 |
19037-GEE-710 |
CAP, RADIATOR Price: $36.69 |
| 7 |
19046-PAA-A00 |
LABEL, RADIATOR CAP Price: $3.50 |
| 8 |
19071-MEC-003 |
PETCOCK, DRAIN Price: $4.49 |
| 9 |
19102-MJE-D00 |
STAY, RESERVE TANK Price: $3.36 |
| 10 |
19103-MKN-D50 |
TUBE, RESERVE TANK Price: $24.07 |
| 11 |
19104-MJE-D00 |
COVER, RESERVE TANK Price: $6.55 |
| 12 |
19105-MJE-D00 |
STAY, RADIATOR (LOWER) Price: $9.38 |
| 13 |
19106-GET-000 |
CAP ASSY., RESERVE TANK Price: $8.67 |
| 14 |
19106-MJE-DB0 |
GUARD, RESERVE TANK HEAT Price: $12.51 |
| 15 |
19107-GET-000 |
GASKET, RESERVE TANK Price: $4.71 |
| 16 |
19107-MJE-D40 |
STAY, TUBE CLAMP Price: $8.44 |
| 17 |
19108-MJE-D00 |
TUBE, RESERVE TANK OVERFLOW Price: $7.20 |
| 18 |
19110-MKY-D50 |
TANK, RADIATOR RESERVE Price: $13.04 |
| 19 |
19126-MKN-D50 |
GUARD, RADIATOR HEAT Price: $6.38 |
| 20 |
19501-MJE-D00 |
HOSE A, RADIATOR Price: $15.42 |
| 21 |
19502-MJE-D00 |
HOSE B, RADIATOR Price: $14.31 |
| 22 |
19511-R9G-004 |
CLIP, WATER HOSE Price: $7.22 |
| 23 |
32161-393-003 |
CLIP, WIRE HARNESS Price: $3.51 |
| 24 |
61102-KTY-D30 |
COLLAR, RADIATOR MOUNTING Price: $5.04 |
| 25 |
61304-415-000 |
RUBBER, HEADLIGHT CASE MOUNTING Price: $4.35 |
| 26 |
90013-GHB-630 |
BOLT, FLANGE (6X16) Price: $2.55 |
| 27 |
90106-KRG-000 |
SCREW, PAN (6X12) Price: $2.49 |
| 28 |
90111-162-000 |
BOLT, FLANGE (6MM) Price: $3.29 |
| 29 |
90115-MKN-D50 |
BOLT, FLANGE (6X22) Price: $1.40 |
| 30 |
90120-GHB-601 |
BOLT-WASHER (6X12) Price: $2.20 |
| 31 |
90303-MGZ-J40 |
NUT, CLIP (6MM) Price: $1.22 |
| 32 |
90315-MK3-003 |
NUT, SERRATE (5MM) Price: $2.65 |
| 33 |
91353-MEC-003 |
O-RING (9.8X1.9) Price: $4.29 |
| 34 |
95002-02100 |
CLIP, TUBE (B10) Price: $1.98 |
| 35 |
95002-50000 |
CLIP, TUBE (C9) Price: $1.32 |
