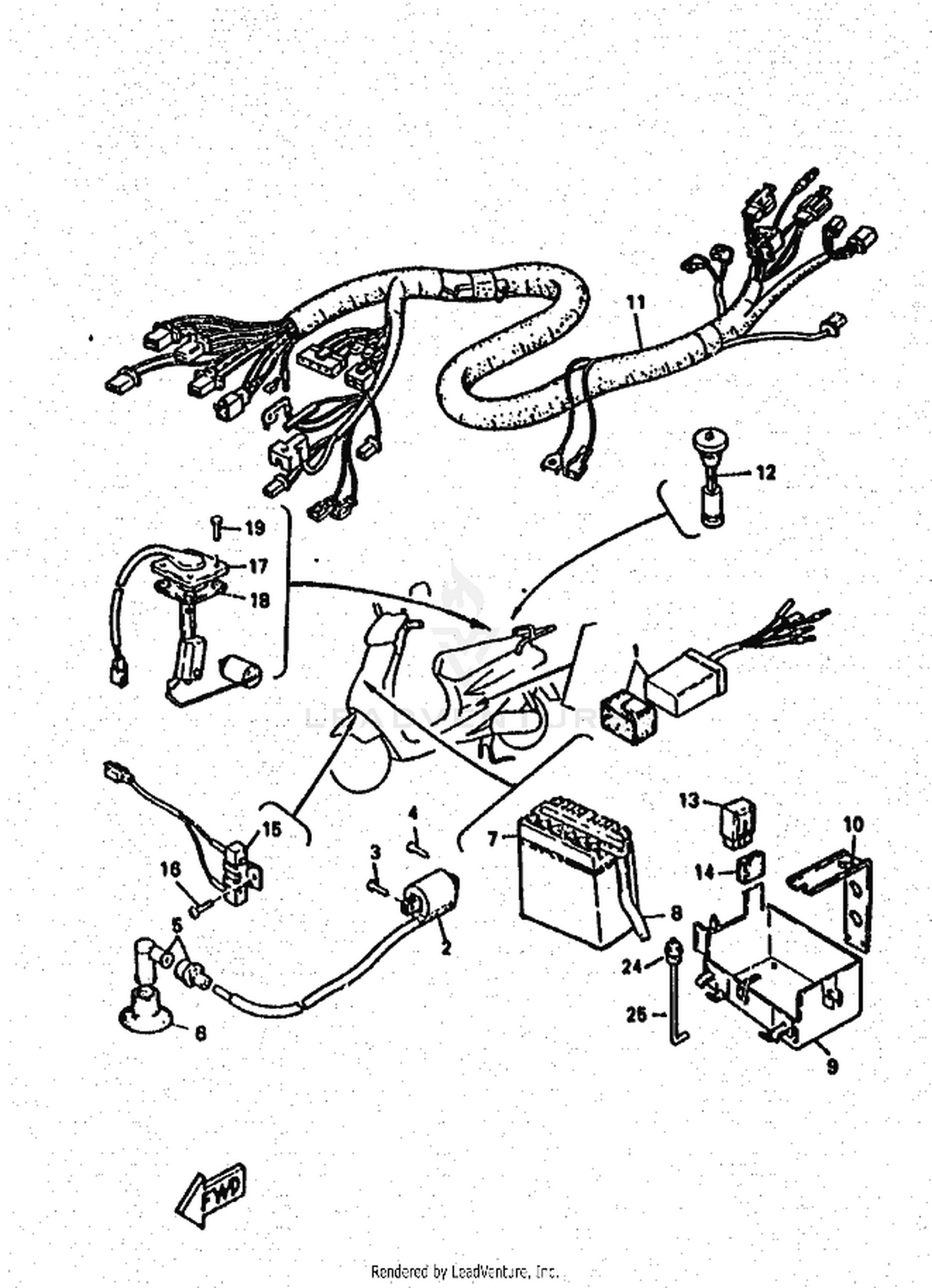

35 ELECTRICAL 2
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3KJ-85540-10 | C.D.I. UNIT ASSY Price: Call Us |
| 2 | 4JP-82310-00 | IGNITION COIL ASSY Price: Call Us |
| 3 | 97017-06016 | BOLT Price: Call Us |
| 4 | 90153-06034 | SCREW, HEXAGON Price: Call Us |
| 5 | 56J-82370-00 | PLUG CAP ASSY Price: Call Us |
| 6 | 3KJ-82372-00 | SEAL, PLUG CAP Price: Call Us |
| 8 | 90445-08048 | HOSE (L730) Price: Call Us |
| 9 | 4CU-F177G-00 | BOX, BATTERY Price: Call Us |
| 10 | 4CU-F172K-00 | BRACKET 1 Price: Call Us |
| 11 | 4RC-82590-00 | WIRE HARNESS ASSY Price: Call Us |
| 12 | 3VL-H5720-10 | OIL LEVEL GAUGE ASSY Price: Call Us |
| 13 | 29U-81950-93 | RELAY ASSY Price: Call Us |
| 14 | 90465-18147 | CLAMP Price: Call Us |
| 15 | 2JA-85370-00 | RESISTOR ASSY Price: Call Us |
| 16 | 98507-06014 | SCREW, PAN HEAD Price: Call Us |
| 17 | 4CU-85752-00 | SENDER UNIT ASSY, FUEL METER Price: Call Us |
| 18 | 5G3-85753-00 | GASKET, SENDER UNIT Price: Call Us |
| 19 | 90119-05071 | BOLT, WITH WASHER Price: Call Us |
| 24 | 97707-06500 | SCREW, TAPPING Price: Call Us |
