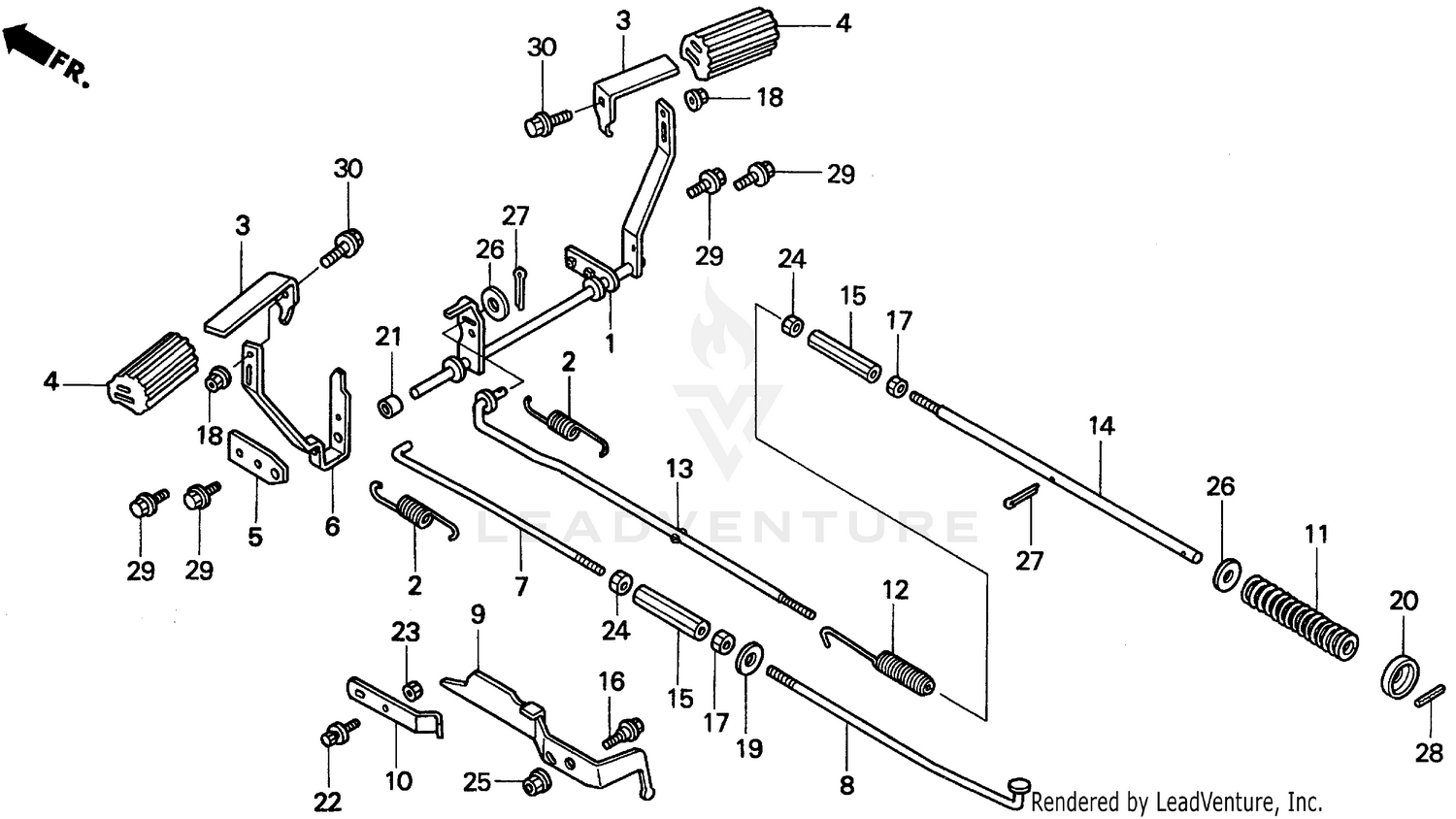

| Ref | Part Number | Description |
|---|
| 1 |
46511-771-000 |
PEDAL, BRAKE Price: $96.94 |
| 2 |
46514-771-000 |
SPRING, BRAKE PEDAL Price: $2.38 |
| 3 |
46515-772-000 |
BRACKET, BRAKE/CLUTCH Price: $4.50 |
| 4 |
46545-772-000 |
RUBBER, PEDAL Price: $12.43 |
| 5 |
46592-771-000 |
PIVOT, BRAKE PEDAL Price: $4.60 |
| 6 |
46911-771-000 |
PEDAL, CLUTCH Price: $11.60 |
| 7 |
46931-771-000 |
ROD A, CLUTCH Price: $4.04 |
| 8 |
46932-771-000 |
ROD B, CLUTCH Price: $17.76 |
| 9 |
47110-771-000 |
LEVER, PARKING BRAKE Price: $7.16 |
| 10 |
47135-772-010 |
SEE PART DETAILS - PRI; SPRING, PARKING BRAKE LEVER Price: $2.12 |
| 11 |
47251-771-000 |
SPRING, BRAKE LOAD SETTING Price: $1.80 |
| 12 |
47255-771-000 |
SPRING, BRAKE DAMPER Price: $4.16 |
| 13 |
47261-771-000 |
ROD, RR. BRAKE Price: $24.30 |
| 14 |
47265-771-000 |
ROD B, RR. BRAKE Price: $9.76 |
| 15 |
47268-771-000 |
JOINT (8MM) Price: $10.04 |
| 16 |
90110-751-000 |
BOLT, ADJUSTING ARM Price: $5.16 |
| 17 |
90201-750-000 |
NUT, HEX. (8MM) Price: $3.62 |
| 18 |
90309-MR1-770 |
NUT, FLANGE (8MM) Price: $4.30 |
| 19 |
90524-030-000 |
SEE PART DETAILS - PRI; WASHER A, HANDLE HOLDER SETTING Price: $1.74 |
| 20 |
90505-772-000 |
WASHER, PLAIN (0.63) Price: $0.74 |
| 21 |
91555-771-000 |
COLLAR (22.2X2.3X16) Price: $1.26 |
| 22 |
93404-05012-08 |
BOLT-WASHER (5X12) Price: $2.02 |
| 23 |
94001-05000-0S |
SEE PART DETAILS - PRI; NUT, HEX. (5MM) Price: $3.34 |
| 24 |
94001-08000-0S |
SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338). Price: $1.64 |
| 25 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 26 |
94101-10800 |
WASHER, PLAIN (10MM) (Honda Code 0562199). Price: $2.36 |
| 27 |
94201-40220 |
PIN, SPLIT (4.0X22) Price: $1.08 |
| 28 |
94305-40252 |
PIN, SPRING (4X25) Price: $2.68 |
| 29 |
95701-08018-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X18) (Honda Code 2563237). Price: $2.02 |
