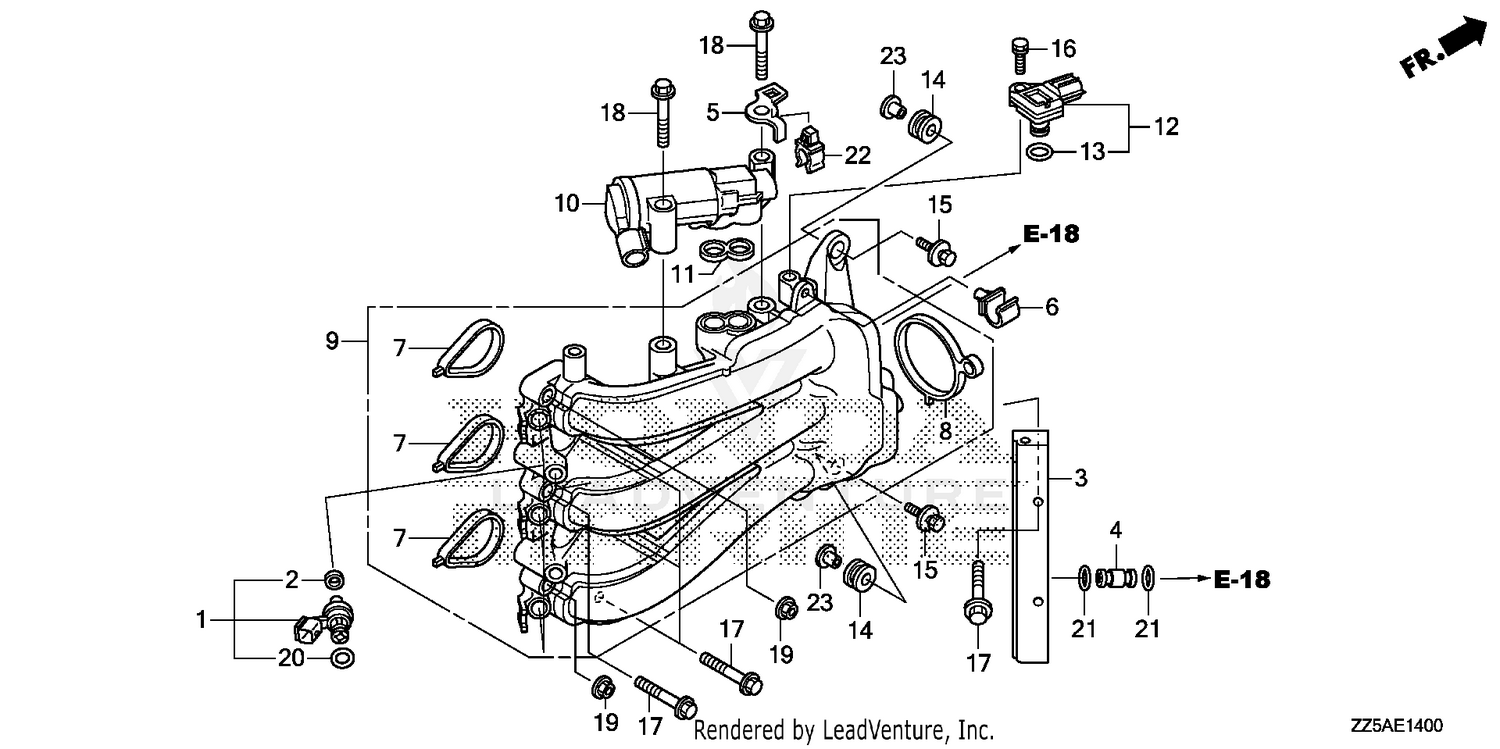

| Ref | Part Number | Description |
|---|
| 1 |
16450-ZZ5-003 |
INJECTOR ASSY., FUEL Price: $97.17 |
| 2 |
16472-KPC-D50 |
RING, SEAL Price: $2.82 |
| 3 |
16620-ZZ5-010 |
LINE, FUEL Price: $164.76 |
| 4 |
16752-ZY3-A00 |
JOINT, FUEL PIPE Price: $10.06 |
| 5 |
16817-ZZ5-010 |
BRKT B, TUBE CLAMP Price: $6.38 |
| 6 |
16896-ZY9-003 |
CLAMP B, FUEL TUBE Price: $3.84 |
| 7 |
17105-ZZ5-003 |
GASKET, IN. MANIFOLD Price: $84.78 |
| 8 |
17107-ZZ5-003 |
GASKET, THROTTLE BODY Price: $17.78 |
| 9 |
17110-ZZ5-003 |
MANIFOLD, INLET Price: $934.56 |
| 10 |
36550-ZZ5-003 |
VALVE ASSY., ELECTRONIC AIR CONTROL Price: $245.64 |
| 11 |
36551-ZY6-003 |
GASKET, ELECTRONIC AIR CONTROL VALVE Price: $14.88 |
| 12 |
37830-RNA-A01 |
SENSOR ASSY., MAP Price: $117.64 |
| 13 |
37835-PGK-A01 |
O-RING Price: $11.78 |
| 14 |
40102-ZV5-000 |
GROMMET, CASE (LOWER) Price: $3.62 |
| 15 |
90013-ZZ5-M01 |
BOLT-WASHER (6X25) Price: $3.36 |
| 19 |
90201-ZZ5-M01 |
NUT, FLANGE (6MM) Price: $1.42 |
| 20 |
91301-KPH-701 |
O-RING (7.3X2.2) Price: $3.88 |
| 21 |
91301-MJ0-003 |
O-RING (7.8X1.9) (ARAI) Price: $2.86 |
| 22 |
91531-SZ5-003 |
CLIP, TUBE (3.5) Price: $5.80 |
