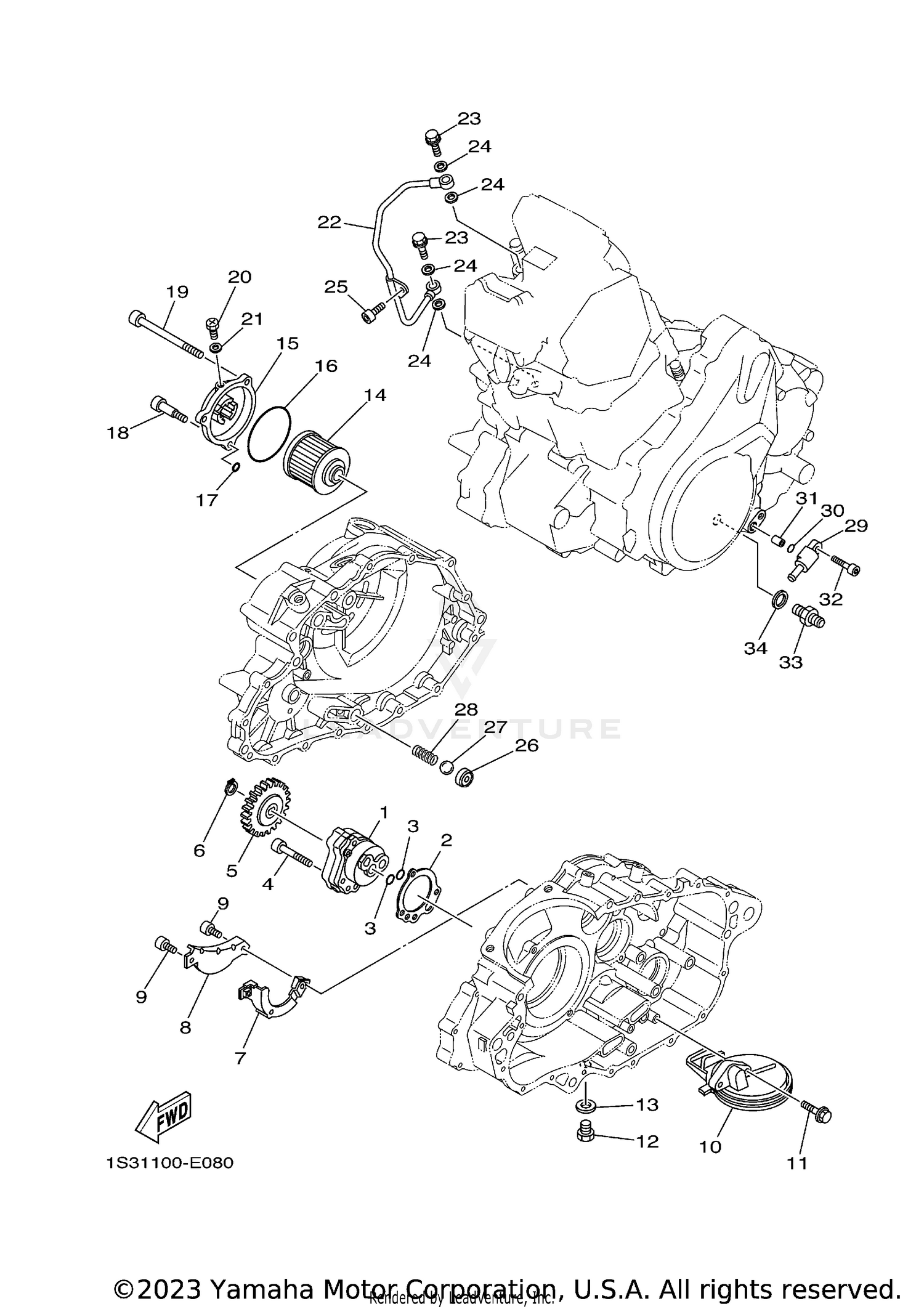

| Ref | Part Number | Description |
|---|
| 1 |
5LP-13300-00-00 |
OIL PUMP ASSY Price: $237.99 |
| 2 |
5LP-13329-00-00 |
GASKET, PUMP COVER Price: $7.49 |
| 3 |
93210-13361-00 |
O-RING Price: $6.49 |
| 4 |
91312-06035-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.28 |
| 5 |
3AJ-13325-00-00 |
GEAR, PUMP DRIVEN Price: $30.99 |
| 6 |
99009-11400-00 |
CIRCLIP Price: $9.49 |
| 7 |
1S3-13356-00-00 |
COVER, PUMP 2 Price: $24.99 |
| 8 |
1S3-13327-00-00 |
COVER, PUMP GEAR Price: $8.49 |
| 9 |
91312-05008-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05030-00. Price: $8.49 |
| 10 |
1S3-13410-00-00 |
STRAINER HOUSING ASSY Price: $63.99 |
| 11 |
95022-06020-00 |
BOLT, FLANGE This part replaces 90105-06082-00. Price: $3.90 |
| 12 |
90340-14029-00 |
PLUG, STRAIGHT SCREW Price: $4.60 |
| 13 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 14 |
4X7-13440-90-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 4X7-13440-01-00. Price: $15.49 |
| 15 |
1S3-13447-00-00 |
COVER, OIL ELEMENT Price: $49.99 |
| 16 |
93210-64297-00 |
O-RING Price: $8.99 |
| 17 |
93210-07135-00 |
O-RING Price: $6.99 |
| 18 |
90109-06169-00 |
BOLT Price: $6.49 |
| 19 |
91312-06095-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.70 |
| 20 |
90149-05018-00 |
SCREW Price: $8.49 |
| 21 |
90430-05126-00 |
GASKET Price: $7.49 |
| 22 |
1S3-13171-00-00 |
PIPE, DELIVERY 2 Price: $79.99 |
| 23 |
90401-10024-00 |
BOLT, UNION Price: $10.49 |
| 24 |
90430-10188-00 |
GASKET Price: $7.49 |
| 25 |
91317-06012-00 |
BOLT This part replaces 91312-06012-00. Price: $9.49 |
| 26 |
583-13113-00-00 |
SEAT, CHECK BALL Price: $25.99 |
| 27 |
93503-08007-00 |
BALL Price: $4.50 |
| 28 |
90501-043E0-00 |
SPRING, COMPRESSION Price: $4.75 |
| 29 |
1S3-13416-00-00 |
PIPE, OIL 1 Price: $44.99 |
| 30 |
93210-10197-00 |
O-RING Price: $8.49 |
| 31 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 32 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 33 |
1S3-13132-00-00 |
JOINT Price: $16.49 |
