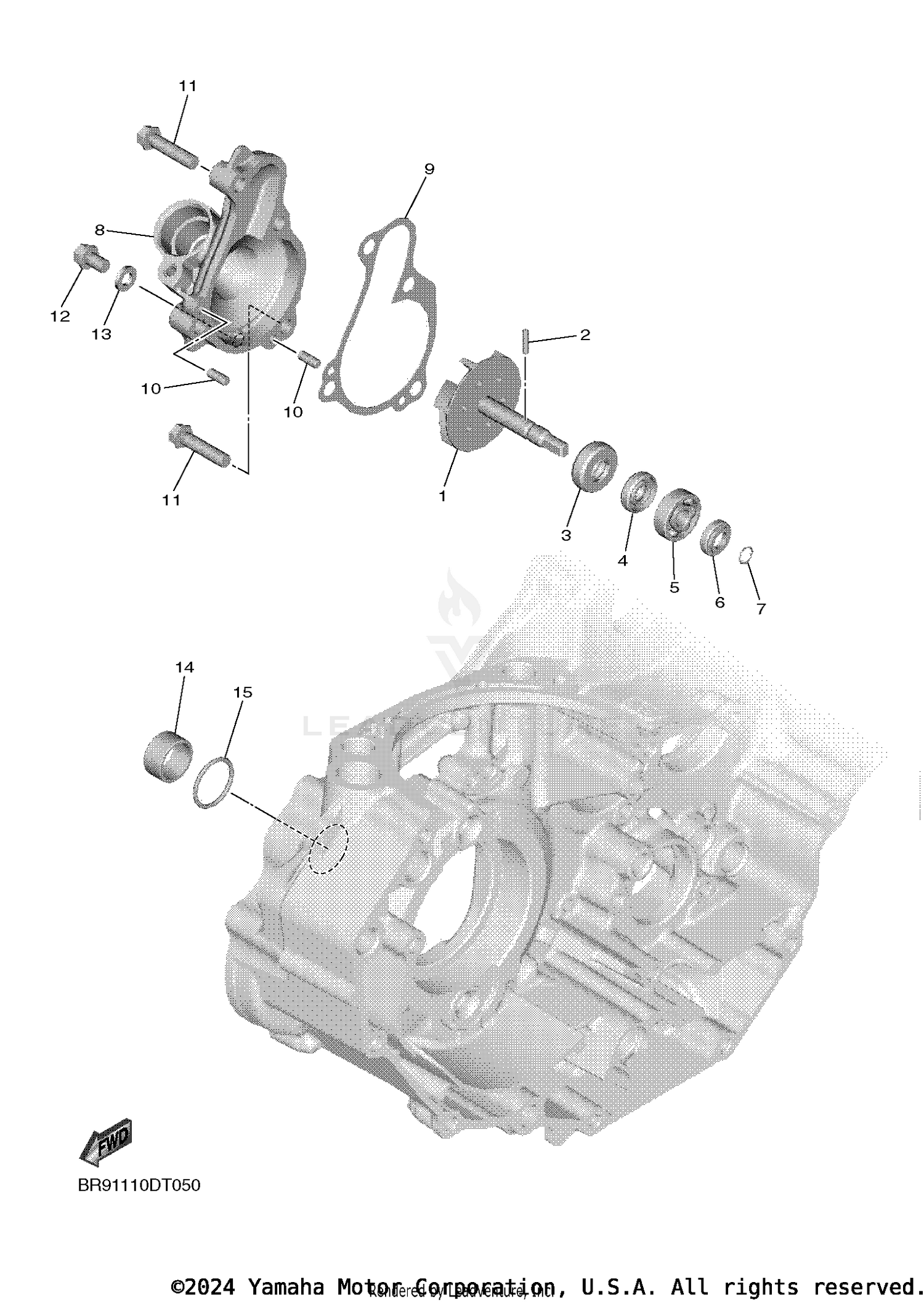

WATER PUMP
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BR9-12450-00-00 | IMPELLER SHAFT ASSY Price: $46.99 |
| 2 | 93603-12030-00 | PIN, PLUNGER Price: $2.80 |
| 3 | 93102-08004-00 | OIL SEAL Price: $10.49 |
| 4 | 93102-08307-00 | OIL SEAL Price: $8.49 |
| 5 | 93300-60814-00 | BEARING This part replaces 93300-60801-00. Price: $23.99 |
| 6 | 1SL-11917-00-00 | COLLAR Price: $17.99 |
| 7 | 93440-07182-00 | CIRCLIP Price: $4.10 |
| 8 | 33D-12422-00-00 | COVER, HOUSING Price: $109.99 |
| 10 | 93604-10011-00 | PIN, DOWEL Price: $8.49 |
| 11 | 95022-06025-00 | BOLT, FLANGE Price: $1.90 |
| 12 | 95022-06010-00 | BOLT, FLANGE Price: $6.49 |
| 14 | 5BE-12564-00-00 | PIPE, WATER Price: $12.99 |
