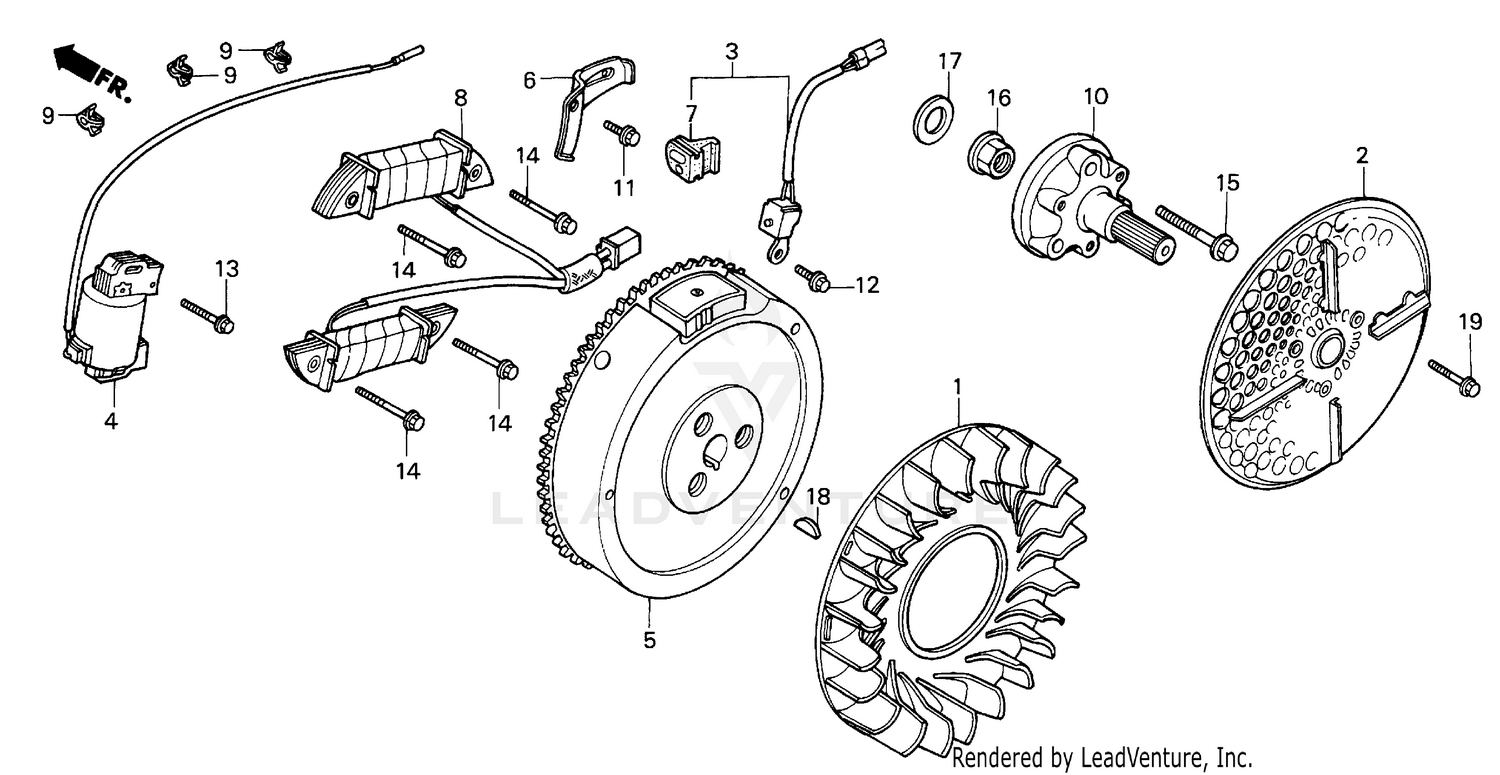

| Ref | Part Number | Description |
|---|
| 1 |
19511-ZE3-790 |
FAN, COOLING Price: $33.18 |
| 2 |
28452-ZE3-L00 |
GRID, SCREEN Price: $32.32 |
| 5 |
31100-ZF6-L50 |
FLYWHEEL Price: Call Us |
| 6 |
31511-ZE3-000 |
CLAMP, WIRE (Honda Code 2108363). Price: $6.32 |
| 8 |
31630-ZE3-791 |
COIL ASSY., CHARGE Price: $153.60 |
| 10 |
40215-ZE3-790 |
SHAFT, ENGINE P.T.O. Price: $77.18 |
| 11 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 14 |
90018-ZG0-000 |
BOLT, FLANGE (6X42) Price: $2.92 |
| 15 |
90102-ZE3-790 |
BOLT, ENGINE P.T.O. Price: $4.26 |
| 16 |
90201-ZE3-790 |
SEE PART DETAILS - PRI; NUT, SPECIAL (16MM) Price: $11.32 |
| 17 |
90473-ZE3-790 |
WASHER, FLYWHEEL Price: $9.60 |
| 18 |
90741-ZE2-000 |
KEY, SPECIAL WOODRUFF (25X18) (Honda Code 2027159). Price: $3.88 |
