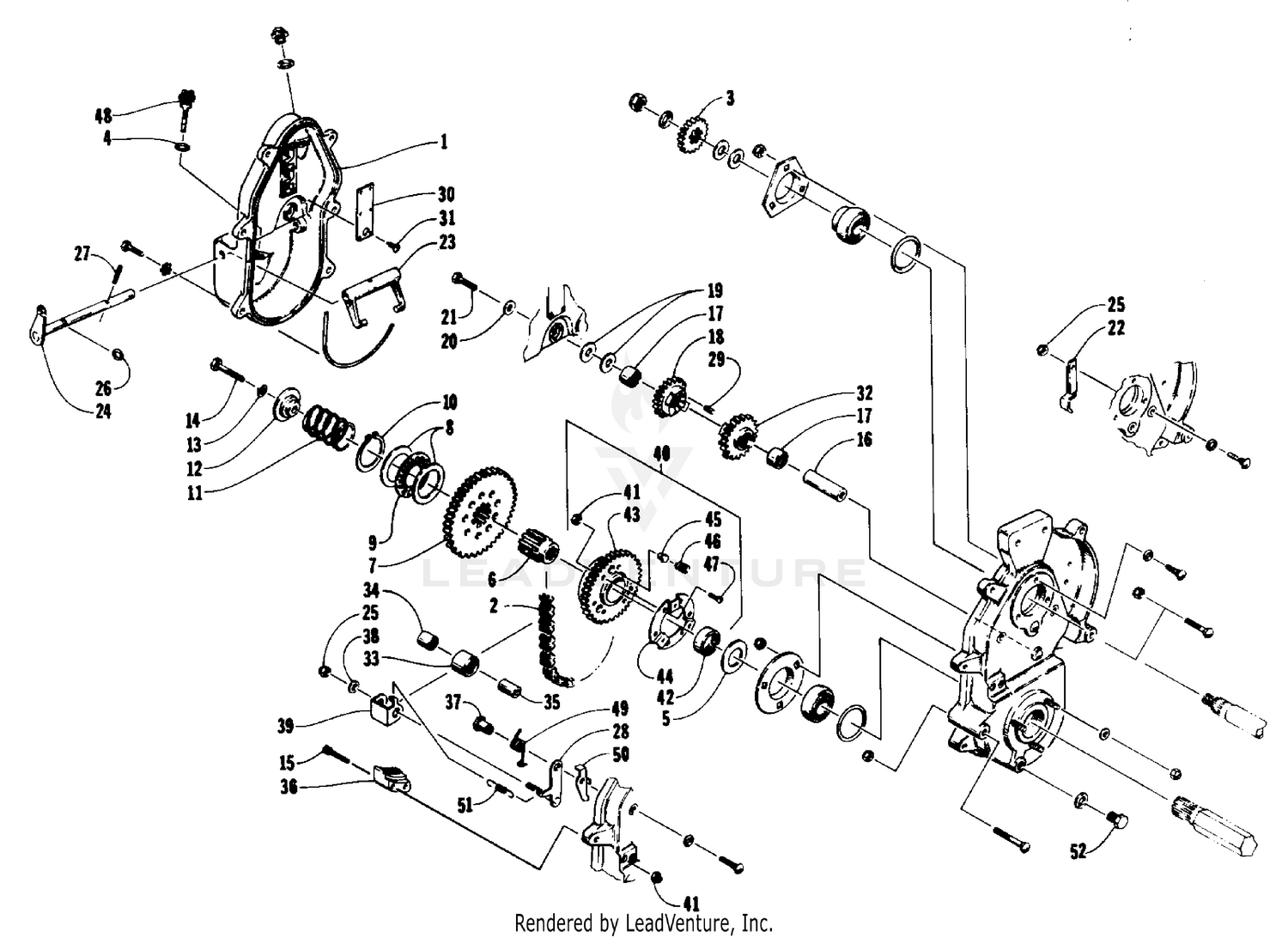

DRIVE/REVERSE DROPCASE ASSEMBLY [60954]

Parts (50)

Ref	Part Number	Description
1	0702-425	Cover, Dropcase - w/O-Ring - REV Price: $105.95
2	1602-041	CHAIN, 70P - 13 WIDE Price: $121.95
3	0602-444	Sprocket, 19T (Above 4,000 ft Alt.) Price: $56.11
4	0670-183	O-Ring Price: $0.35
5	0602-012	Spacer Price: $17.63
6	1602-048	Shaft, Extension Price: $137.95
7	0702-048	Gear, 55T Reverse Assembly Price: $427.95
8	0602-023	Washer, Thrust Price: $16.92
9	0602-022	Bearing, Thrust Price: $23.53
10	0602-024	Ring, Retaining Price: $1.19
11	0602-028	Spring, Return Price: $24.20
12	1602-047	Retainer, Extension Shaft Price: $66.95
13	8051-277	Washer, Lock Price: $1.70
14	8002-231	Screw, Cap-HH 3/8-16 X3.00 G5 Z&Y Price: $1.19
15	8006-406	Screw, Cap Price: $2.30
16	0602-094	Shaft, Reverse Price: $45.95
17	0602-018	Bearing Price: $20.56
18	1639-558	KIT,19T IDLER GEAR REPLACE Price: $185.95
19	0123-439	Washer Price: $4.04
20	8050-242	Washer Price: $2.26
21	8002-130	SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y Price: $0.84
22	0702-553	Bracket, chain Backing-WELDT Price: $55.03
23	0602-085	Fork, Shift Price: $100.95
24	0702-135	Shaft, Shift Fork Price: $55.95
25	0623-122	Nut, Lock Price: $1.57
26	0602-021	Seal, O-Ring Price: $0.55
27	0623-542	Pin, Spring Coiled - Black Price: $2.05
28	0702-220	Pin, Link - Threaded Price: $31.95
29	0602-366	Pin, Alignment Price: $1.45
30	1602-151	Cover, Oil Vent Price: $46.95
31	0623-081	Screw, Self-Tapping Price: $0.35
32	0702-260	Idler, Reverse - Assembly 24T Price: $179.95
33	0702-129	Roller, Tightener (w/Bearing) Price: $59.95
34	0602-383	Bearing Price: $0.79
35	0602-398	Shaft, Chain Roller Price: $22.95
36	0602-561	Block, Ratchet Price: $85.95
37	0602-405	Bushing Price: $54.95
38	8050-222	Washer Price: $0.70
39	0602-390	Bracket, Chain Roller Price: $82.95
40	0702-170	Sprocket Assembly 39T Price: $244.95
41	0123-430	Nut, Lock Price: $2.91
42	0602-016	Bearing Price: $25.95
44	0602-144	Retainer, Spring Price: $14.49
45	0602-133	Pin, Slip Price: $19.35
46	0602-138	Spring, Compression - Reverse Price: $3.14
47	0623-182	Screw, Machine Price: $0.35
48	0602-483	Stick, Oil Level Price: $38.95
49	0602-403	Spring, Torsion Price: $2.39
50	0602-404	Bracket, Spring Price: $20.95
51	0602-397	Spring, Chain Tightener Price: $23.95
