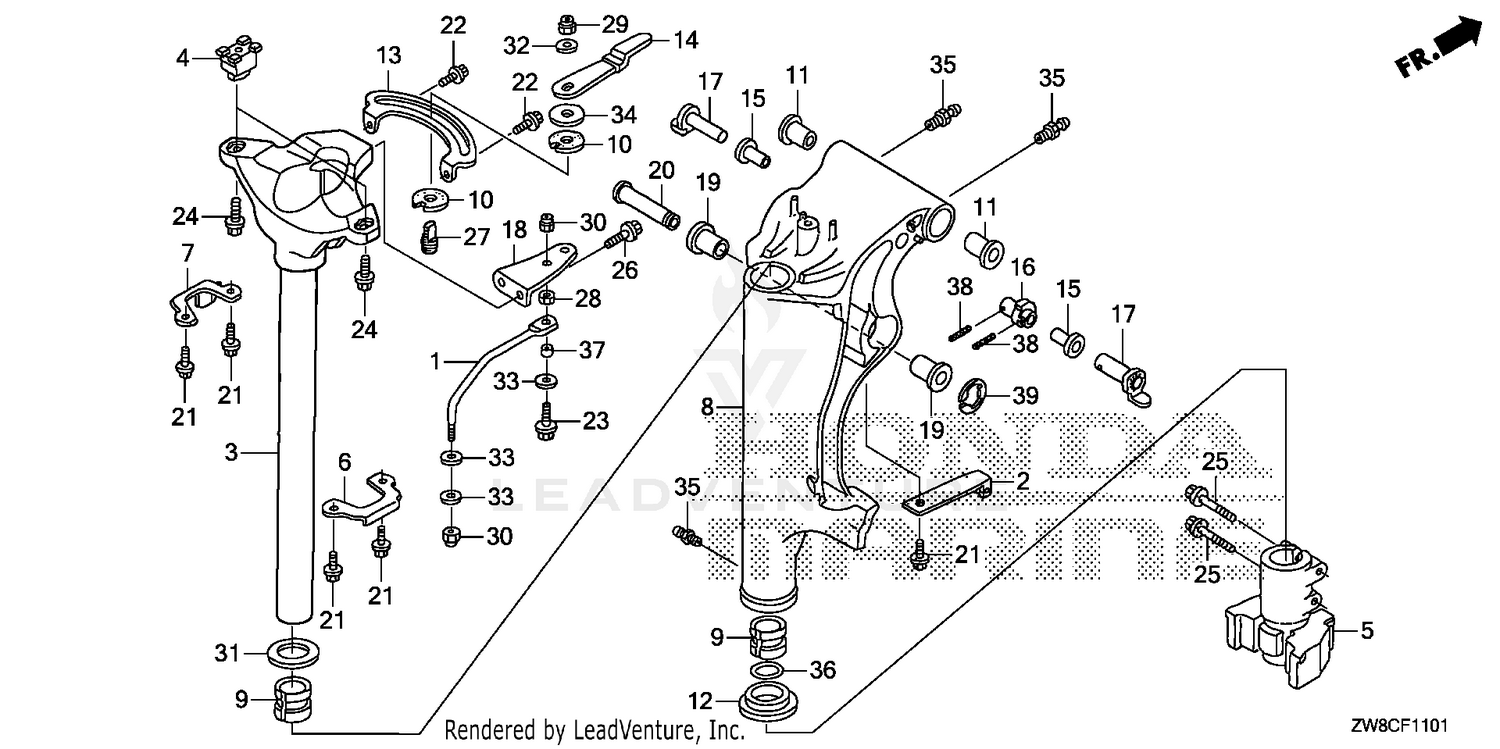

| Ref | Part Number | Description |
|---|
| 1 |
17853-ZV5-000 |
ROD, STEERING Price: $109.60 |
| 2 |
24210-ZV1-010 |
SEE PART DETAILS - PRI; SPRING, CLICK Price: $14.04 |
| 3 |
50100-ZW9-631 |
SEE PART DETAILS - PRI; FRAME, MOUNTING (L) Price: $263.62 |
| 4 |
50150-ZY1-000 |
SEE PART DETAILS - PRI; RUBBER, MOUNTING (UPPER) Price: $27.46 |
| 5 |
50152-ZW9-000 |
RUBBER, MOUNTING (LOWER) Price: $110.14 |
| 6 |
50153-ZW9-000 |
COVER, MOUNTING RUBBER (UPPER) Price: $10.02 |
| 7 |
50153-ZY1-870 |
COVER, MOUNTING RUBBER (UPPER) (PT) Price: $8.80 |
| 8 |
50201-ZY1-872ZB |
CASE, SWIVEL *NHB14M* (L)(PT) (AQUA MARINE SILVER METALLIC) Price: $444.31 |
| 9 |
50211-ZW9-000 |
LINER, SWIVEL CASE Price: $5.36 |
| 11 |
50214-ZV5-003 |
BUSH, SWIVEL CASE Price: $10.48 |
| 12 |
50215-ZW9-000 |
COLLAR, SWIVEL CASE Price: $6.52 |
| 15 |
50522-ZV5-000 |
BUSH, TILT ARM Price: $7.82 |
| 16 |
50527-ZY1-870 |
BRACKET, TILTING Price: $19.08 |
| 17 |
50529-ZY1-870 |
STOPPER, TILT Price: $55.82 |
| 18 |
53234-ZW9-830 |
PLATE, STEERING Price: $46.14 |
| 19 |
56513-ZV5-000 |
BUSH, CYLINDER (LOWER) Price: $5.16 |
| 20 |
56532-ZY1-870 |
PIN, CYLINDER (UPPER) Price: $26.02 |
| 21 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 23 |
90105-ZV5-000 |
BOLT (3/8-24 UNF) Price: $9.46 |
| 24 |
90154-ZW9-000 |
BOLT, FLANGE (10X25) Price: $4.20 |
| 25 |
90159-ZW9-000 |
BOLT, FLANGE (8X45) Price: $5.02 |
| 26 |
90161-ZW9-830 |
BOLT, FLANGE (10X20) Price: $4.42 |
| 28 |
90302-ZV5-000 |
NUT (3/8-24 UNF) Price: $11.86 |
| 30 |
90307-ZV5-003 |
NUT, SELF-LOCK (3/8-24UNF) Price: $8.86 |
| 31 |
90454-881-000 |
WASHER, THRUST Price: $3.86 |
| 33 |
90514-ZV4-000 |
WASHER (10MM) Price: $2.32 |
| 35 |
90951-ZV7-010 |
SEE PART DETAILS - PRI; NIPPLE, GREASE Price: $2.60 |
| 36 |
91361-VD6-003 |
O-RING (34X2.4) Price: $3.16 |
| 37 |
91560-ZV5-000 |
COLLAR, STEERING ROD Price: $4.20 |
