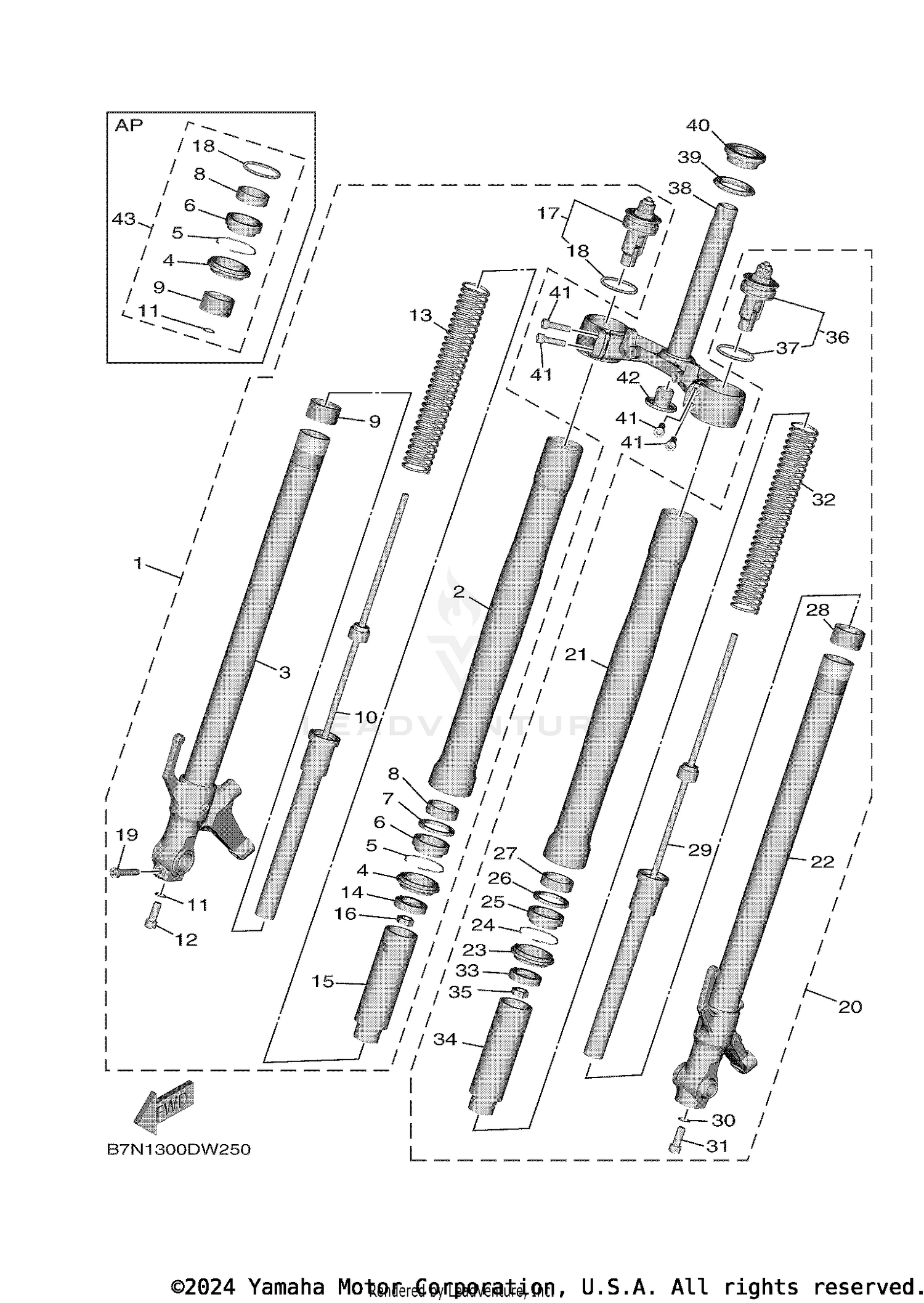

| Ref | Part Number | Description |
|---|
| 4 |
4EB-23144-00-00 |
SEAL, DUST Price: $24.99 |
| 5 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 6 |
4EB-23145-01-00 |
OIL SEAL Price: $31.99 |
| 7 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 8 |
1RC-23125-00-00 |
METAL, SLIDE 1 Price: $16.49 |
| 9 |
4FM-23171-40-00 |
METAL, SLIDE Price: $25.99 |
| 12 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 14 |
5VY-12277-00-00 |
WASHER Price: $14.49 |
| 15 |
5VY-23118-00-00 |
SPACER Price: $62.99 |
| 16 |
3LC-23357-00-00 |
NUT Price: $7.49 |
| 19 |
91314-08040-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 23 |
4EB-23144-00-00 |
SEAL, DUST Price: $24.99 |
| 24 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 25 |
4EB-23145-01-00 |
OIL SEAL Price: $31.99 |
| 26 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 27 |
1RC-23125-00-00 |
METAL, SLIDE 1 Price: $16.49 |
| 28 |
4FM-23171-40-00 |
METAL, SLIDE Price: $25.99 |
| 31 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 33 |
5VY-12277-00-00 |
WASHER Price: $14.49 |
| 34 |
5VY-23118-00-00 |
SPACER Price: $62.99 |
| 35 |
3LC-23357-00-00 |
NUT Price: $7.49 |
| 38 |
B7N-23340-00-00 |
UNDER BRACKET COMP Price: $398.99 |
| 39 |
3FV-23462-00-00 |
SEAL, STEERING Price: $26.99 |
| 40 |
93399-99957-00 |
BEARING Price: $76.99 |
| 41 |
91317-08030-00 |
BOLT, HEX.S OCKET HEAD Price: $9.49 |
| 42 |
4KM-23123-01-00 |
COVER, LOWER 1 Price: $15.49 |
