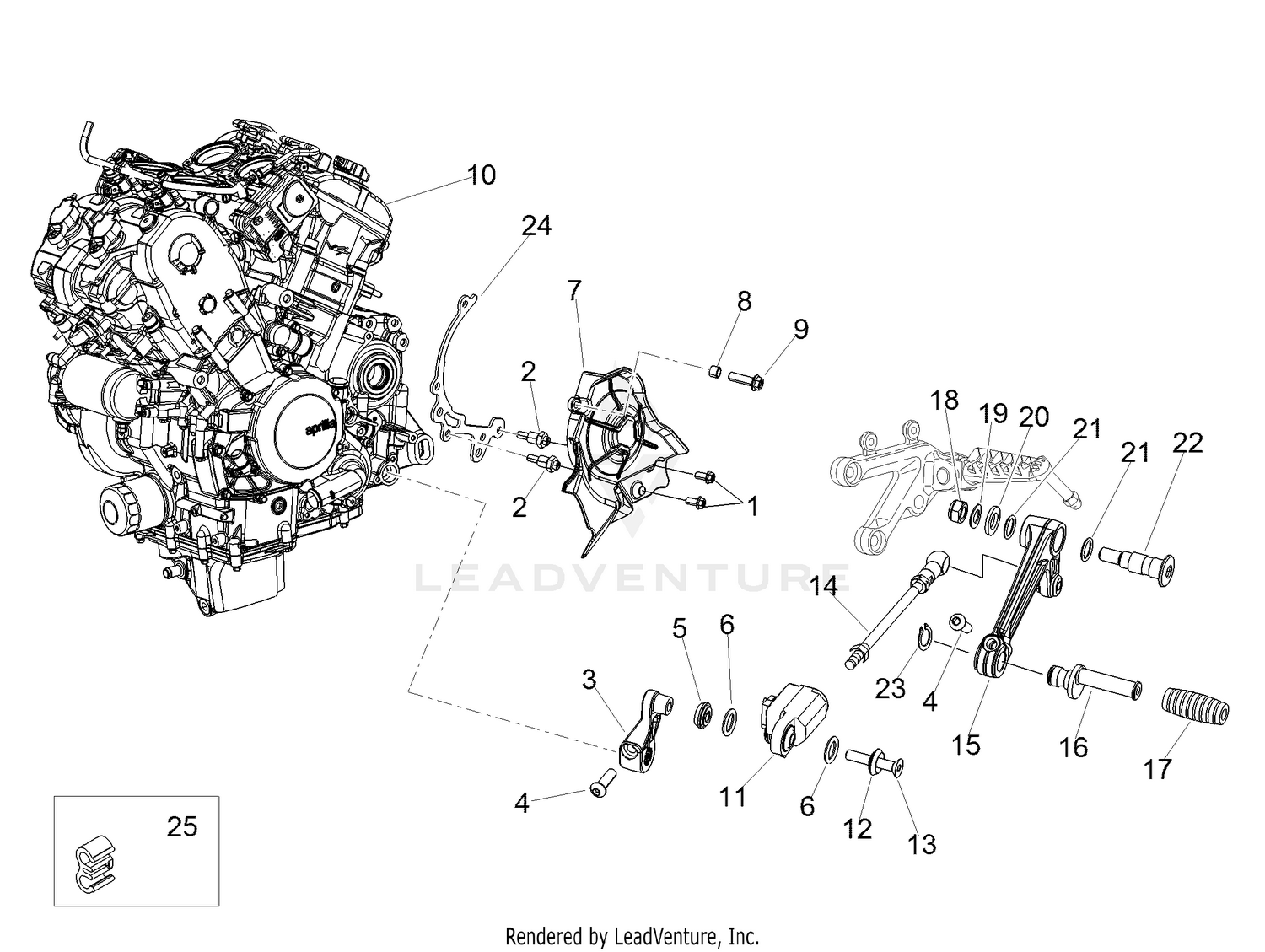

Engine
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | AP8152277 | Flanged hexagon screw Price: $0.18 |
| 2 | 2B001932 | Spacer Price: $2.70 |
| 3 | 852480 | Gear lever Price: $33.95 |
| 4 | AP8224470 | Hex socket screw Price: $0.25 |
| 5 | 2B002562 | Bush Price: $2.70 |
| 6 | AP8220177 | O-ring Price: $0.11 |
| 7 | 2B003460 | Sprocket cover Price: $9.40 |
| 8 | AP8120253 | Spacer Price: $2.70 |
| 9 | AP8152279 | Screw w/ flange Price: $0.37 |
| 10 | CM2668035 | Engine cpl. Price: $7,050.00 |
| 11 | 2B002890 | Quick shift device Price: $249.36 |
| 12 | 898134 | Bush Price: $5.93 |
| 13 | 898463 | Screw Price: $2.70 |
| 14 | 2B003382 | Gear control tie rod Price: $44.95 |
| 15 | 897360 | Gear lever Price: $104.96 |
| 16 | AP8121221 | Brake lever pin Price: $12.52 |
| 17 | AP8120912 | Lever rubber Price: $1.04 |
| 18 | AP8150431 | Low nut Price: $0.25 |
| 19 | AP8150376 | Washer Price: $0.06 |
| 20 | AP8150020 | Washer Price: $0.06 |
| 21 | AP8144007 | O-ring Price: $0.59 |
| 22 | AP8121223 | Rear brake lever pin Price: Call Us |
| 23 | AP8150462 | Circlip Price: $0.49 |
| 24 | 858923 | Chain guide Price: $7.40 |
