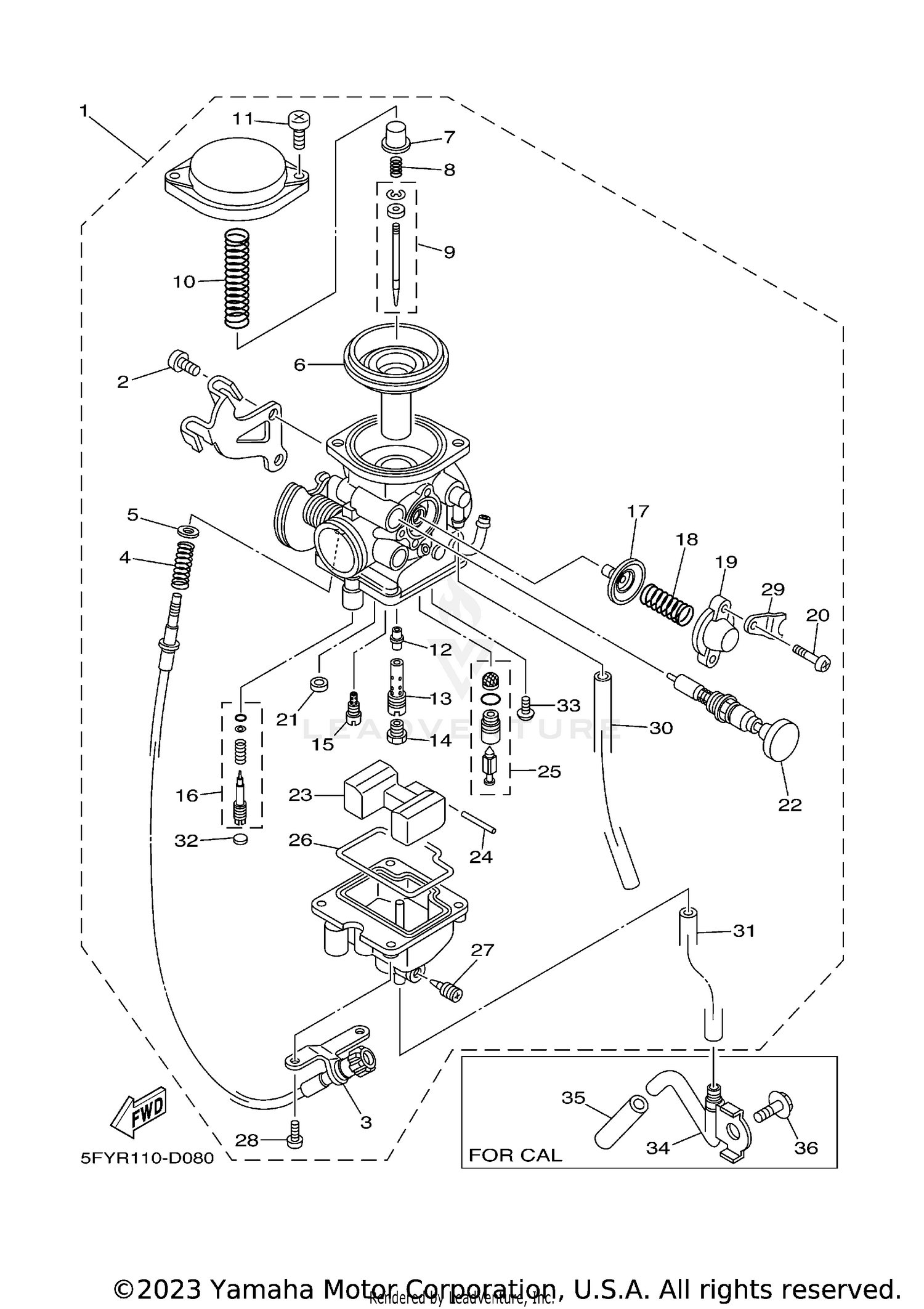

| Ref | Part Number | Description |
|---|
| 2 |
97885-05010-00 |
SCREW, PAN HEAD This part replaces 97801-05010-00. Price: $3.05 |
| 3 |
5LB-14321-00-00 |
SCREW, THROTTLE Price: $110.99 |
| 4 |
2JX-14333-00-00 |
SPRING, THROTTLE STOP Price: $8.49 |
| 5 |
5LB-14357-00-00 |
WASHER, PLAIN Price: $4.70 |
| 6 |
5LB-1434A-00-00 |
SUCTION PISTON ASSY Price: $96.99 |
| 7 |
5LB-14936-00-00 |
SEAT, SPRING Price: $24.99 |
| 8 |
5LB-14275-00-00 |
SPRING Price: $5.49 |
| 9 |
5FY-14336-00-00 |
NEEDLE Price: $32.99 |
| 10 |
5LB-14286-00-00 |
SPRING Price: $11.99 |
| 11 |
5LB-14216-00-00 |
SCREW Price: $5.99 |
| 12 |
5LB-14341-00-00 |
NOZZLE, MAIN Price: $44.99 |
| 13 |
5LB-14341-10-00 |
BLEED, MAIN NOZZLE Price: $49.99 |
| 14 |
5FY-14343-63-00 |
JET, MAIN (#126) Price: $26.99 |
| 15 |
5LB-14342-65-00 |
JET, PILOT (#31) Price: $24.99 |
| 16 |
5LB-14105-00-00 |
PILOT SCREW SET Price: $19.99 |
| 17 |
5LB-14368-00-00 |
DIAPHRAGM ASSY 1 Price: $62.99 |
| 18 |
5LB-14589-00-00 |
SPRING Price: $4.85 |
| 19 |
5LB-14293-00-00 |
COVER 1 Price: $17.49 |
| 20 |
214-24535-00-00 |
SCREW, LEVER FITTING Price: $7.49 |
| 21 |
50M-14355-01-00 |
PLUG This part replaces 50M-14355-00-00. Price: $4.75 |
| 22 |
5FY-14371-00-00 |
PLUNGER, STARTER Price: $97.99 |
| 23 |
5LB-14385-00-00 |
FLOAT Price: $61.99 |
| 24 |
5LB-14386-00-00 |
PIN, FLOAT Price: $7.49 |
| 25 |
5LB-14390-00-00 |
NEEDLE VALVE ASSY Price: $45.99 |
| 26 |
5LB-14384-00-00 |
GASKET, FLOAT CHAMBER Price: $17.99 |
| 27 |
4JP-14104-00-00 |
AIR SCREW SET This part replaces 4JP-14323-00-00. Price: $10.99 |
| 28 |
5LB-14592-00-00 |
SCREW Price: $5.49 |
| 29 |
5LB-14292-00-00 |
BRACKET 2 Price: $4.85 |
| 30 |
5LB-14197-00-00 |
PIPE This part replaces 5FY-14197-00-00. Price: $9.49 |
| 31 |
5FY-14196-00-00 |
PIPE, OVER FLOW 1 Price: $9.49 |
| 32 |
4KN-1432A-00-00 |
PLUG Price: $3.70 |
| 33 |
98980-04006-00 |
SCREW,BIND This part replaces 98901-04006-00. Price: $5.35 |
