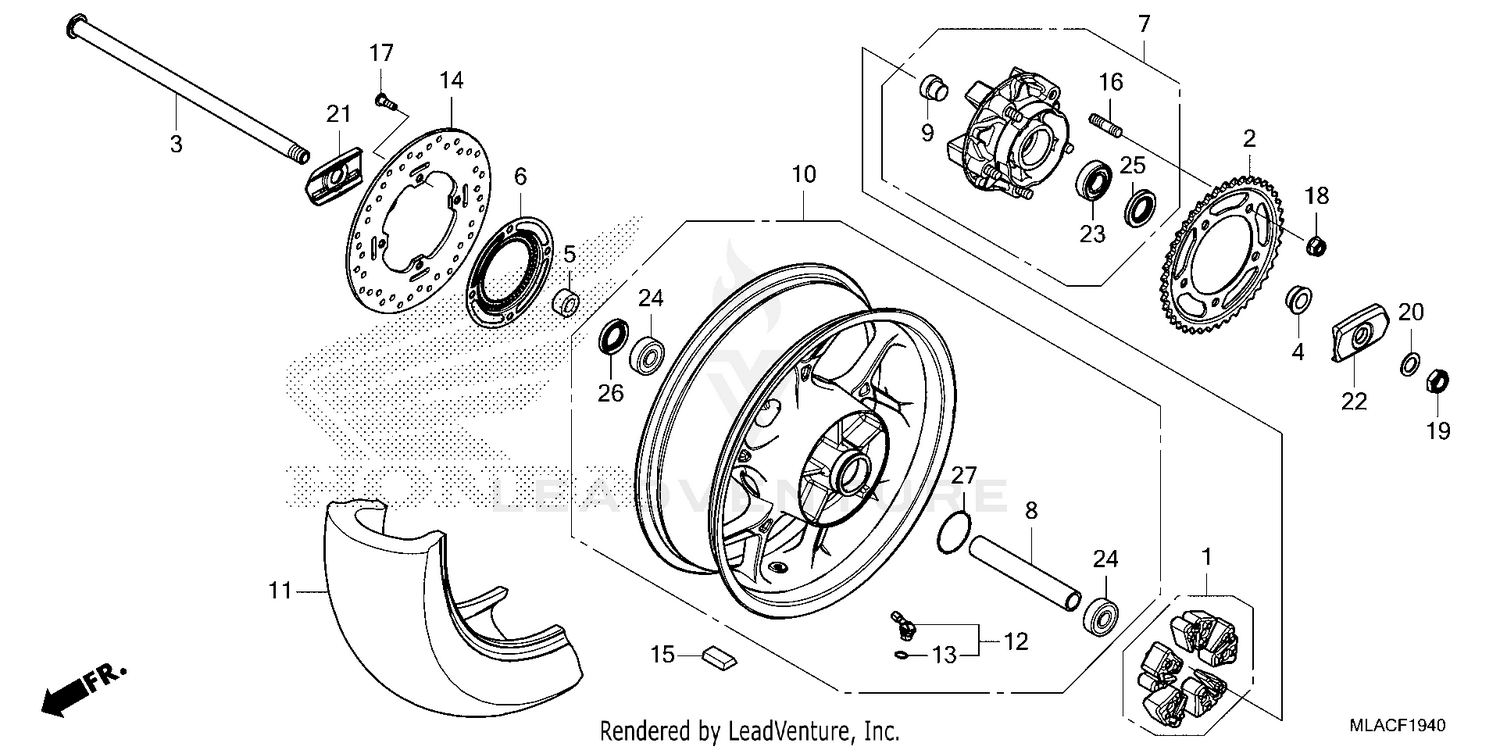

| Ref | Part Number | Description |
|---|
| 1 |
06410-MGS-D30 |
DAMPER SET, WHEEL Price: $69.60 |
| 2 |
41201-MKN-D51 |
SPROCKET, FINAL DRIVEN (42T) Price: $72.51 |
| 3 |
42301-MLA-A00 |
AXLE, RR. WHEEL Price: $65.76 |
| 4 |
42311-MLA-A00 |
COLLAR, L. RR. WHEEL SIDE Price: $19.84 |
| 5 |
42312-MGS-D10 |
COLLAR, RR. BRAKE SIDE Price: $18.93 |
| 6 |
42515-MGZ-J10 |
RING, RR. PULSER Price: $83.78 |
| 7 |
42615-MGS-D30 |
FLANGE SUB-ASSY., RR. DRIVEN Price: $296.87 |
| 8 |
42620-MLA-A00 |
COLLAR, RR. AXLE DISTANCE Price: $29.53 |
| 9 |
42625-MGS-D30 |
COLLAR B, RR. WHEEL DISTANCE Price: $23.60 |
| 10 |
42650-MLA-AA0 |
WHEEL SUB-ASSY., RR. Price: $707.87 |
| 11 |
42711-MLA-A02 |
TIRE, RR. Price: $271.29 |
| 12 |
42755-MKA-D81 |
VALVE ASSY., CLAMP IN Price: $20.09 |
| 13 |
42758-MKA-D81 |
O-RING Price: $1.75 |
| 14 |
43251-MLA-A01 |
DISK, RR. BRAKE (NHK PRECISION) Price: $339.69 |
| 15 |
44721-MLN-EQ1 |
WEIGHT, BALANCE (10G) Price: Call Us |
| 15 |
44722-MLN-EQ1 |
WEIGHT, BALANCE (15G) Price: $4.71 |
| 15 |
44723-MLN-EQ1 |
WEIGHT, BALANCE (20G) Price: $4.63 |
| 16 |
90102-MAS-000 |
BOLT 2, STUD (12X25) Price: $5.04 |
| 17 |
90105-MGS-D30 |
BOLT, DISK (8X25) Price: $3.55 |
| 18 |
90306-KF0-003 |
NUT, FLANGE (12MM) (FUSE RASHI) Price: $4.84 |
| 19 |
90306-MCS-G01 |
NUT, U (18MM) Price: $8.56 |
| 20 |
90432-MCS-G00 |
WASHER, SPECIAL (18MM) Price: $3.27 |
| 21 |
90558-MLA-A00 |
PLATE, SWINGARM SIDE (R) Price: $19.98 |
| 22 |
90559-MLA-A00 |
PLATE, SWINGARM SIDE (L) Price: $19.98 |
| 23 |
91051-MGS-D31 |
BEARING, ANGULAR BALL (22X50X15) Price: $46.16 |
| 24 |
91053-MKY-D51 |
BEARING, RADIAL BALL (6204UU) (NSK) Price: $18.38 |
| 25 |
91251-MGS-D31 |
DUST SEAL (30X50X7) Price: $15.58 |
| 26 |
91253-443-762 |
DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761. Price: $14.69 |
