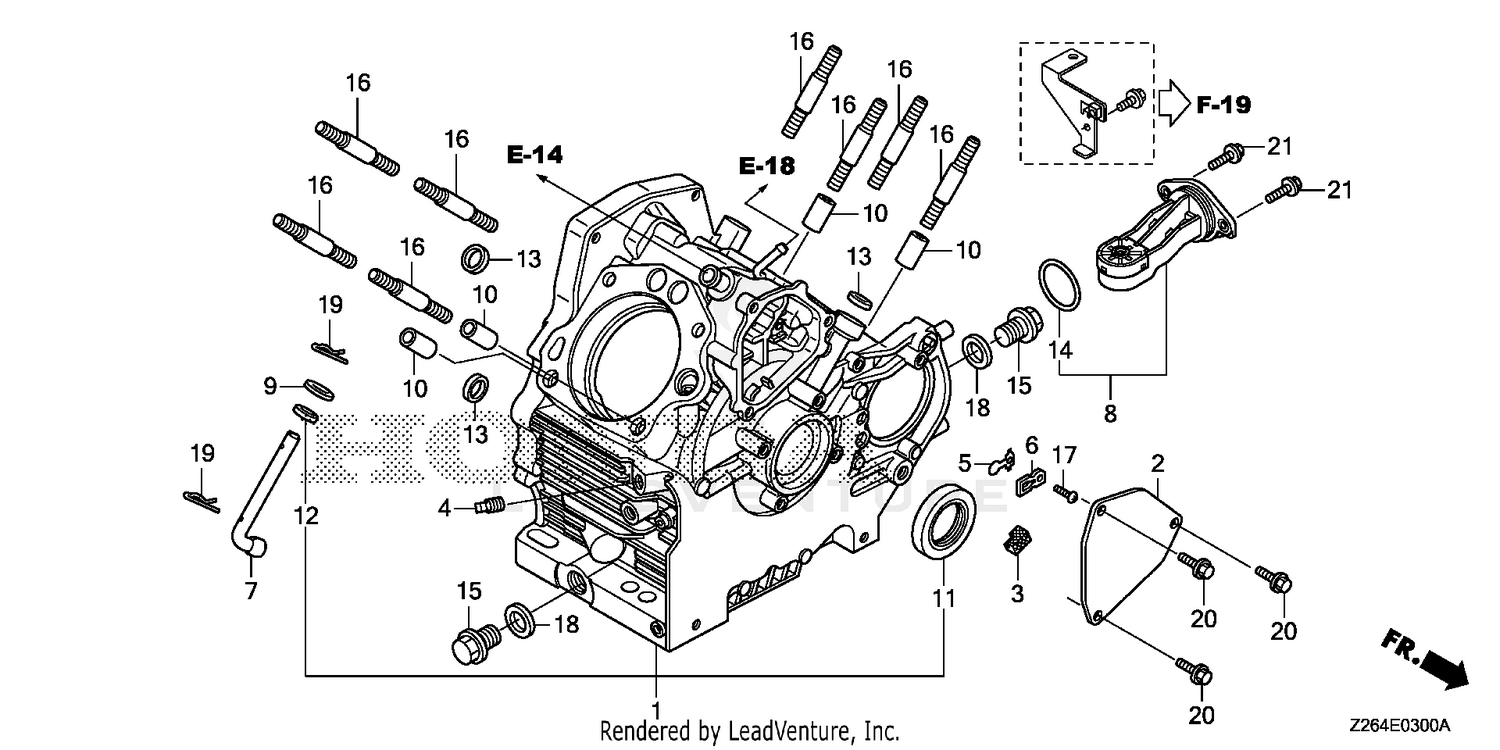

| Ref | Part Number | Description |
|---|
| 1 |
11100-Z6L-802 |
CRANKCASE ASSY. Price: $1,013.90 |
| 2 |
12356-Z6L-000 |
COVER, BREATHER Price: $11.60 |
| 3 |
12367-Z6L-000 |
FILTER, BREATHER Price: $3.40 |
| 4 |
15424-Z6L-000 |
BOLT, SEALING Price: $6.10 |
| 5 |
15571-ZM7-003 |
VALVE, OIL OUTLET Price: $3.80 |
| 6 |
15572-Z6L-000 |
PLATE, STOPPER Price: $1.74 |
| 7 |
16541-Z6L-010 |
SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM Price: $32.02 |
| 8 |
35480-Z6L-003 |
SWITCH ASSY., OIL LEVEL Price: $60.86 |
| 9 |
90404-Z6L-000 |
WASHER, PLAIN (10MM) Price: $3.42 |
| 10 |
90709-Z6L-000 |
PIN, DOWEL (12X20) Price: $4.14 |
| 11 |
91201-Z6L-003 |
OIL SEAL (38X58X9) Price: $8.48 |
| 12 |
91203-Z6L-003 |
OIL SEAL (10X16X5) Price: $4.16 |
| 13 |
91308-Z6L-003 |
GASKET, OIL PASSAGE Price: $2.46 |
| 14 |
91309-Z6L-000 |
O-RING (37.9X2.4) Price: $3.74 |
| 15 |
92800-20000 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (20MM) (Honda Code 0209635). Price: $7.00 |
| 16 |
92900-10040-0B |
SEE PART DETAILS - PRI; BOLT, STUD (10X40) Price: $10.66 |
| 17 |
93500-03008-0A |
SCREW, PAN (3X8) Price: $1.04 |
| 18 |
94109-20000 |
SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728). Price: $1.76 |
| 19 |
94251-10000 |
PIN, LOCK (10MM) (Honda Code 0159269). Price: $1.50 |
| 20 |
95701-06014-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884). Price: $1.26 |
