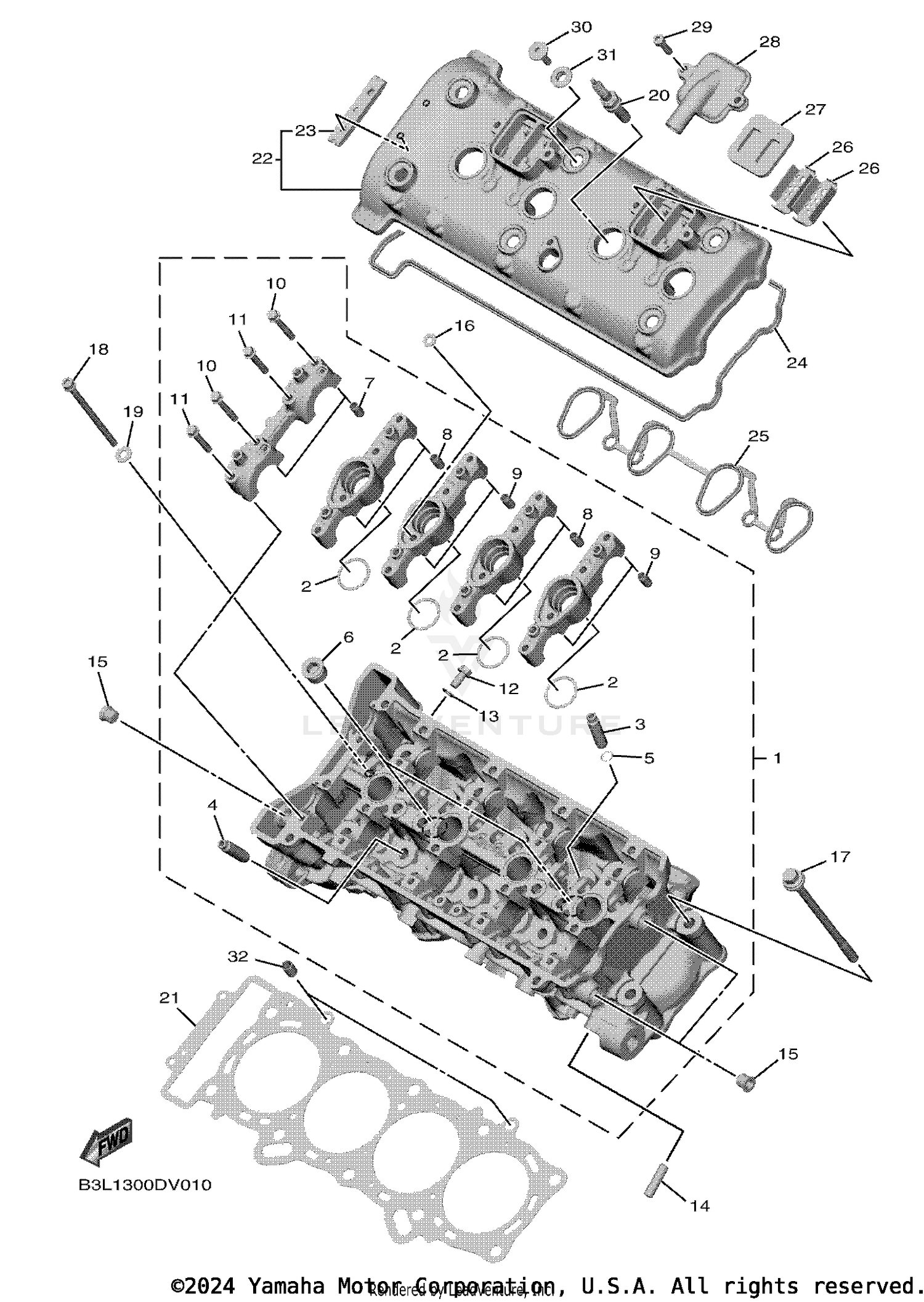

| Ref | Part Number | Description |
|---|
| 1 |
B3L-W1101-08-00 |
CYLINDER HEAD ASSY Price: $2,062.99 |
| 2 |
93210-26658-00 |
O-RING Price: $8.49 |
| 3 |
2CR-11133-10-00 |
GUIDE, VALVE 1 Price: $93.99 |
| 4 |
2CR-11134-10-00 |
GUIDE, VALVE 2 Price: $93.99 |
| 5 |
93440-10153-00 |
CIRCLIP Price: $2.60 |
| 6 |
90340-18004-00 |
PLUG, STRAIGHT SCREW Price: $17.49 |
| 7 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 8 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 9 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 10 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 11 |
90105-06209-00 |
BOLT, FLANGE Price: $2.60 |
| 12 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 13 |
90430-06014-00 |
GASKET Price: $8.60 |
| 14 |
95612-08615-00 |
BOLT, STUD Price: $2.60 |
| 15 |
90340-12014-00 |
PLUG, STRAIGHT SCREW This part replaces 90340-12013-00. Price: $8.49 |
| 16 |
90430-06166-00 |
GASKET Price: $4.05 |
| 17 |
90119-09016-00 |
BOLT, WITH WASHER Price: $15.49 |
| 18 |
90110-06430-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 19 |
90201-06016-00 |
WASHER, PLATE Price: $5.49 |
| 20 |
LMA-R9EJ0-00-00 |
LMAR9EJ NGK SPLUG Price: $18.49 |
| 21 |
B3L-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $62.99 |
| 23 |
5BE-12241-01-00 |
GUIDE, STOPPER 2 Price: $32.99 |
| 24 |
2CR-11193-00-00 |
GASKET, HEAD COVER 1 Price: $25.99 |
| 25 |
2CR-11194-00-00 |
GASKET, HEAD COVER 2 Price: $15.49 |
| 26 |
5VY-1482K-00-00 |
PLATE Price: $5.49 |
| 27 |
5SL-14890-00-00 |
REED VALVE ASSY Price: $97.99 |
| 28 |
14B-14899-01-00 |
CAP, CASE Price: $32.99 |
| 29 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 30 |
90109-066F0-00 |
BOLT Price: $9.49 |
| 31 |
5VY-1111G-00-00 |
RUBBER, MOUNT 1 Price: $13.49 |
