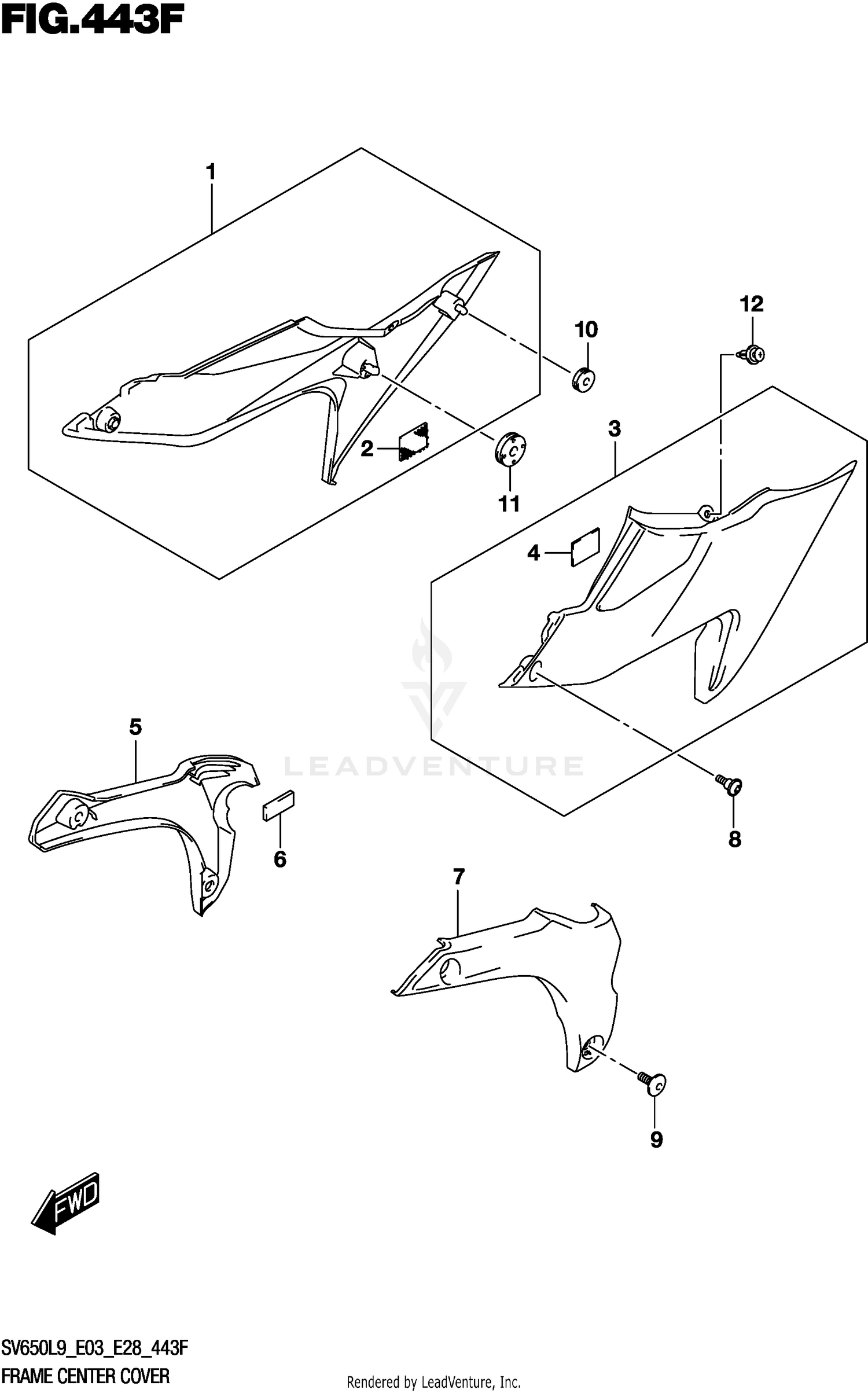

FRAME CENTER COVER (SV650XAL9 E33)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47110-18KA0 | COVER,FRAME FRONT,R Price: $125.58 |
| 3 | 47210-18KA0 | COVER,FRAME FRONT,L Price: $125.58 |
| 5 | 47611-18K00-YKV | COVER,FRAME LOWER,R (BLACK) Price: $142.63 |
| 6 | 47613-44H00 | CUSHION (18X43X5) Price: $7.35 |
| 7 | 47711-18K00-YKV | COVER,FRAME LOWER,L (BLACK) Price: $142.63 |
| 8 | 09139-05504 | SCREW (5X18) Price: $4.56 |
| 9 | 47915-31J00 | SCREW (6X16) Price: $3.61 |
| 10 | 09320-06504 | CUSHION Price: $6.04 |
| 11 | 09320-08028 | CUSHION (8X26X7) Price: $3.70 |
