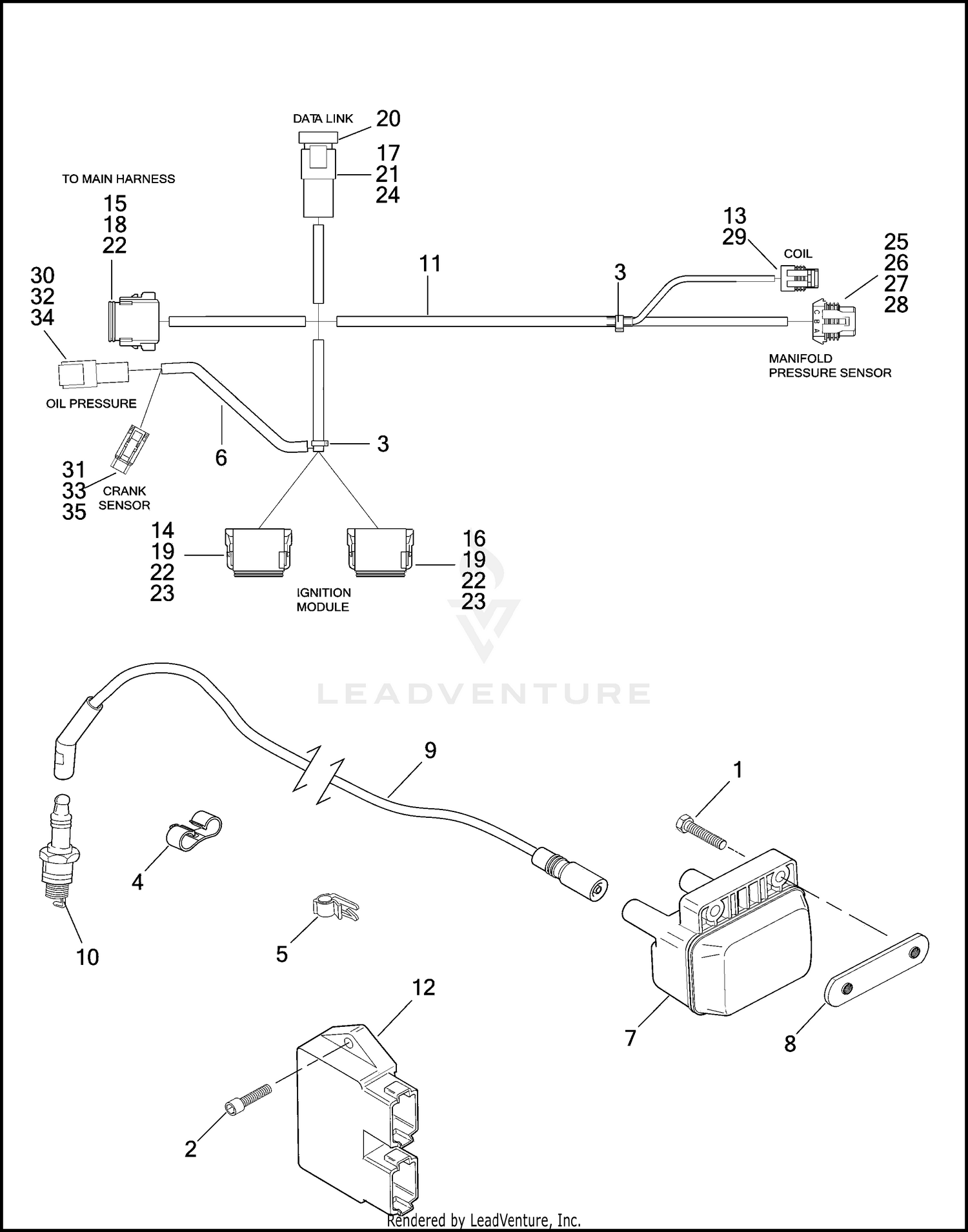

| Ref | Part Number | Description |
|---|
| 1 |
3993 |
BOLT 1/4-20 X 1-1/4 HEX HEAD (GRADE 5) Not Available Price: |
| 2 |
4741A |
SCREW 1/4-20 X 1 SOCKET HEAD, WITH LOCKPATCH Price: $0.59 |
| 3 |
10065 |
CABLE STRAP Price: $1.82 |
| 4 |
10113 |
CLIP DOUBLE Price: $0.65 |
| 5 |
10114 |
CLIP SINGLE Not Available Price: |
| 6 |
10136 |
ANCHOR T-STUD Not Available Price: |
| 7 |
31639-99 |
IGNITION COIL DUAL Price: $122.28 |
| 8 |
31727-85 |
NUT PLATE Not Available Price: |
| 9 |
31992-99B |
SPARK PLUG CABLE FRONT & REAR CYLINDER Price: $9.42 |
| 10 |
32362-04A |
SPARK PLUG 6R12 This part replaces 32362-04. Price: $6.95 |
| 11 |
32435-01 |
WIRING HARNESS IGNITION Not Available Price: |
| 12 |
32478-99C |
IGNITION MODULE Not Available Price: |
| 13 |
72033-93 |
SOCKET TERMINAL Price: $1.20 |
| 14 |
72119-94BK |
SOCKET HOUSING SEALED Not Available Price: |
| 15 |
72138-94GY |
SOCKET HOUSING 8-PLACE Not Available Price: |
| 16 |
72139-94GY |
SOCKET HOUSING SEALED 12-PLACE Price: $14.51 |
| 17 |
72144-94 |
PIN LOCK SECONDARY, 4-WAY Price: $0.59 |
| 18 |
72158-94 |
SOCKET LOCK 8-WAY Not Available Price: |
| 19 |
72159-94 |
SOCKET LOCK SECONDARY, 12-WAY Price: $0.74 |
| 20 |
72164-94A |
PLUG 4-WAY Price: $1.96 |
| 21 |
72190-94 |
TERMINAL PIN Price: $1.20 |
| 22 |
72191-94 |
TERMINAL SOCKET Price: $1.41 |
| 23 |
72195-94 |
SEAL PIN Price: $0.59 |
| 24 |
72199-94 |
CONNECTOR ANCHOR Price: $1.66 |
| 25 |
72213-94 |
TERMINAL 18-20 GAUGE Price: $0.63 |
| 26 |
72214-94 |
WIRE SEAL Price: $0.59 |
| 27 |
72230-98 |
HOUSING SOCKET CONNECTOR, 3-WAY Price: $4.80 |
| 28 |
72231-98 |
SECONDARY LOCK 3-WAY SOCKET CONNECTOR Price: $1.46 |
| 29 |
72280-95 |
CONNECTOR 3-WAY Price: $6.97 |
| 30 |
74102-98BK |
PIN HOUSING 2-WAY Price: $3.71 |
| 31 |
74112-98BK |
SOCKET HOUSING 2-WAY Price: $2.99 |
| 32 |
74142-98 |
PIN LOCK 2-WAY Price: $0.58 |
| 33 |
74152-98 |
SOCKET LOCK 2-WAY Price: $0.58 |
| 34 |
74190-98 |
PIN TERMINAL Price: $0.63 |
