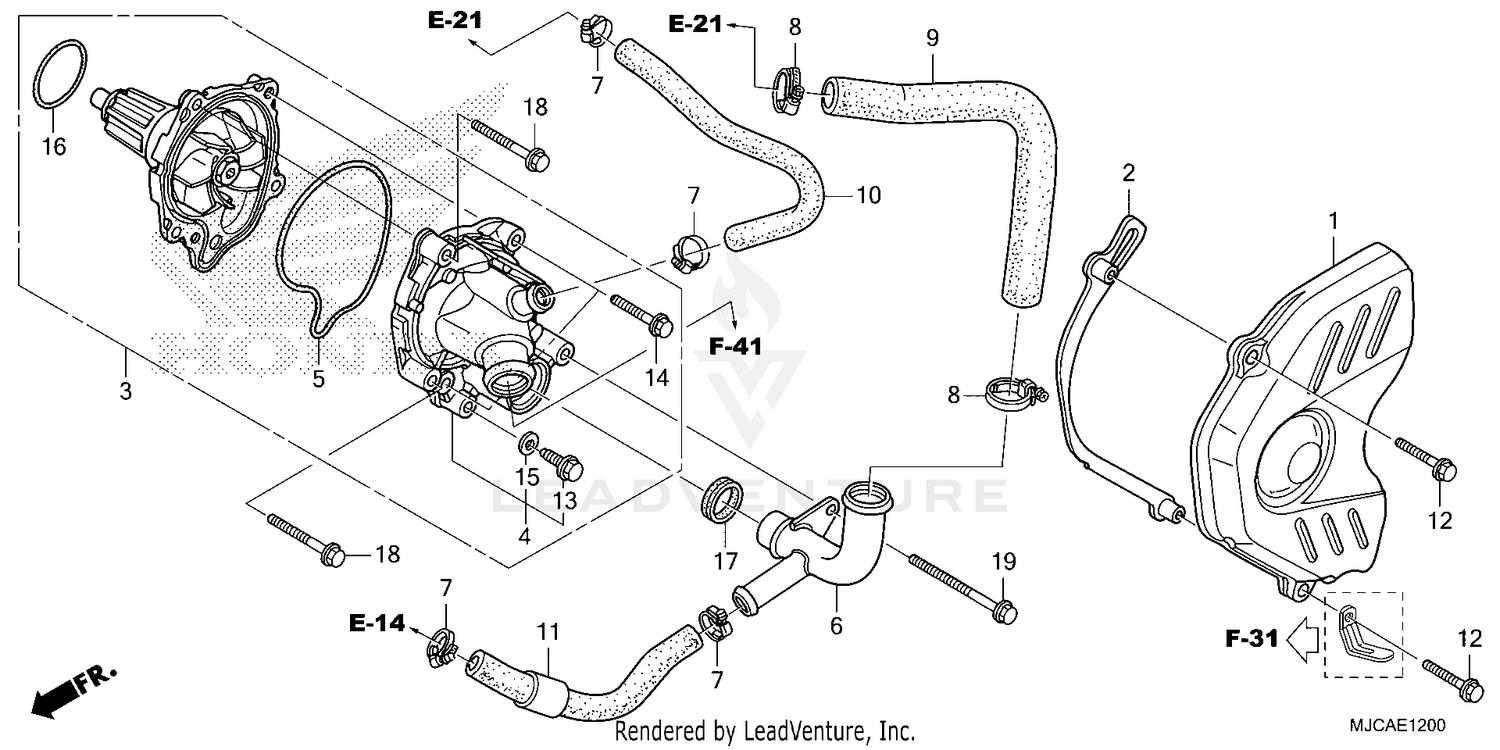

| Ref | Part Number | Description |
|---|
| 1 |
11350-MFJ-D00 |
COVER, L. RR. Price: $22.71 |
| 2 |
11355-MFJ-D00 |
PLATE, DRIVE CHAIN GUIDE Price: $10.18 |
| 3 |
19200-MFJ-305 |
WATER PUMP ASSY. Price: $281.15 |
| 4 |
19220-MFJ-D00 |
COVER, WATER PUMP Price: $117.76 |
| 5 |
19226-MFJ-D00 |
GASKET, WATER PUMP COVER Price: $7.53 |
| 6 |
19230-MFJ-D00 |
JOINT A, WATER PUMP COVER Price: $76.07 |
| 7 |
19505-KS6-700 |
CLAMP, WATER HOSE (A) Price: $13.25 |
| 8 |
19516-ML7-691 |
CLAMP, HOSE (24-32MM) Price: $17.45 |
| 9 |
19525-MFJ-D00 |
HOSE A, WATER Price: $36.62 |
| 10 |
19526-MFJ-D00 |
HOSE B, WATER Price: $19.33 |
| 11 |
19527-MFJ-A40 |
HOSE C, WATER Price: $15.49 |
| 12 |
90004-GHB-670 |
BOLT, FLANGE (6X25) (NSHF) Price: $3.47 |
| 13 |
90013-883-000 |
BOLT, FLANGE (6X12) (CT200) Price: $1.94 |
| 14 |
90121-MV9-670 |
BOLT, FLANGE (6X25) Price: $3.40 |
| 15 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 16 |
91302-MB0-013 |
O-RING (32.95X2.62) (ARAI) Price: $3.35 |
| 17 |
91315-MB0-013 |
SEAL, WATER PIPE Price: $3.09 |
| 18 |
95701-06035-00 |
BOLT, FLANGE (6X35) Price: $1.97 |
